6. VERTICAL HANGING WITH A 10° ANGLE
3. Place the C-BR 10°
D
as shown in the pictures below.

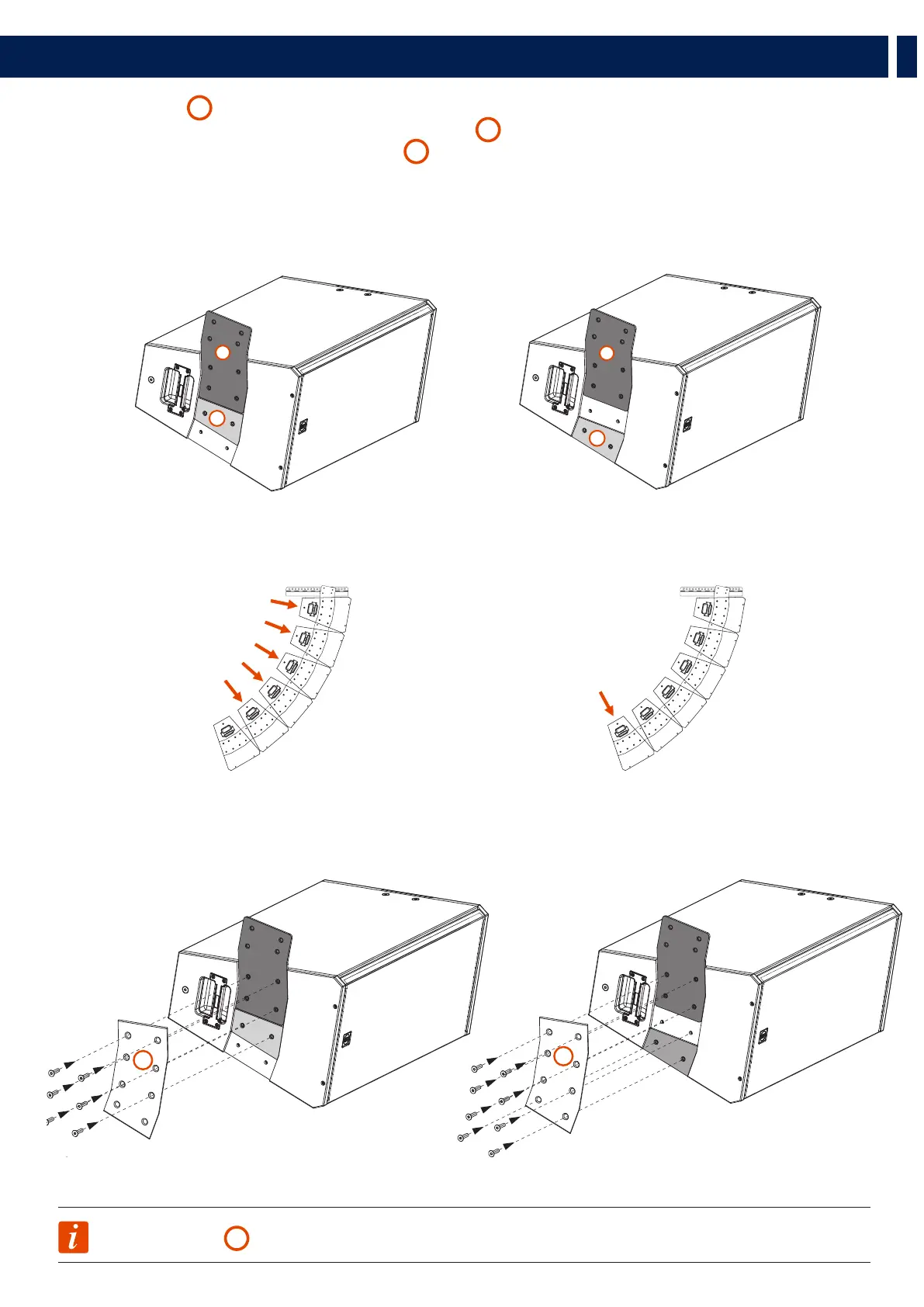

- On the top and following speakers of the cluster, the External Plate
C
must be placed next to the C-BR 10°, as shown in FIGURE 1.
- On the bottom speaker of the cluster the External Plate
C
must be placed as shown in FIGURE 2.
4. For the top and following speakers, place back the Top Plate on its position and screw it back with only six screws, leaving the two bottom holes
empty. For the Bottom speakers screw back the Top Plate with all the 8 screws.
NOTE: The Top Plate
A
must be always screwed back on its position.
FIGURE 1
(Top and following speakers)
(Top and following speakers)
C
D
FIGURE 2
(Bottom speaker)
(Bottom speaker)
C
D
A
A
