RCF Q 15 User Manual

14
EN

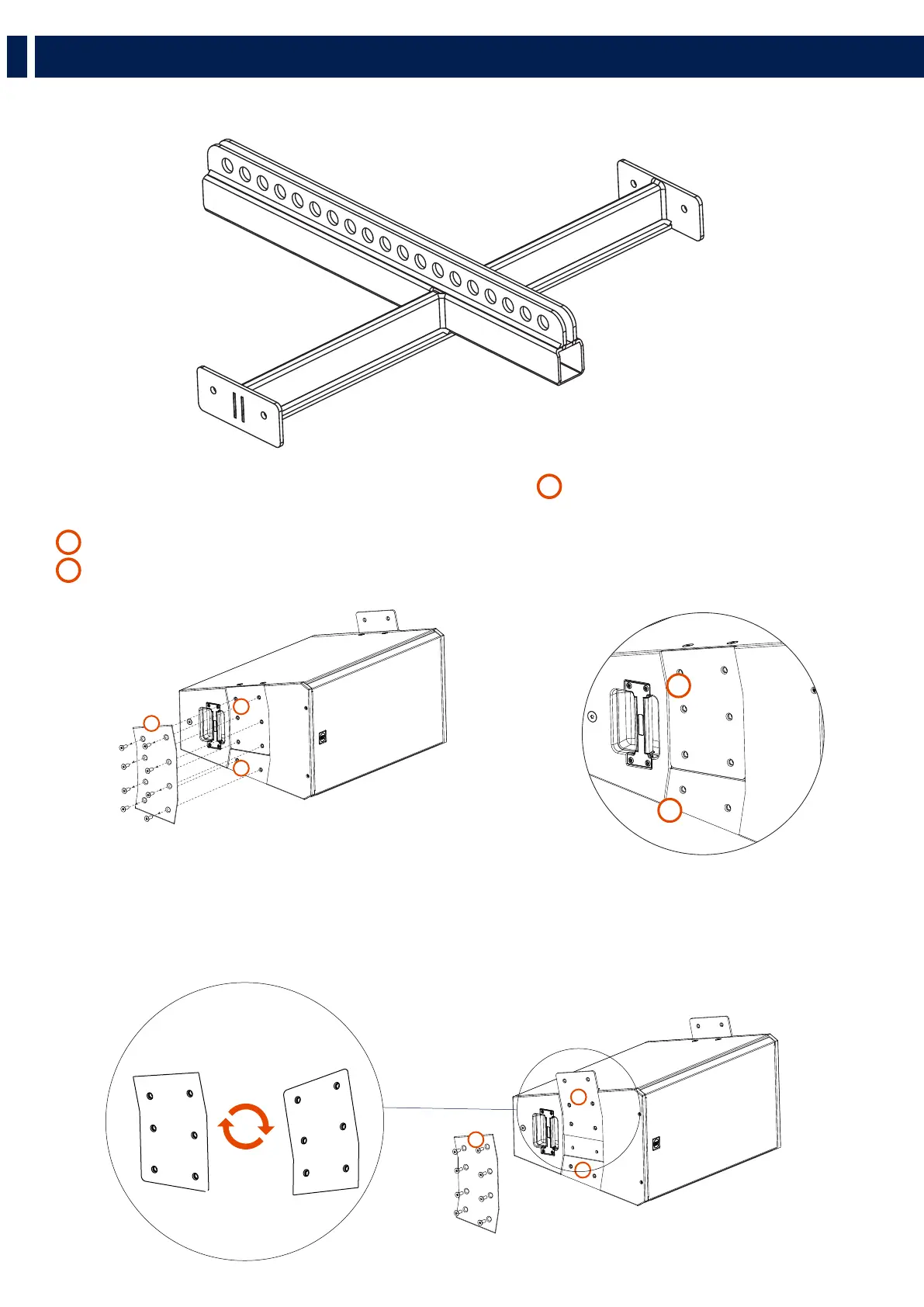

To vertically hang a series of Q 15 speakers, unscrew the 8 screws from the Top Plate
A
and remove it.
As described on chapter 4.1 (Horizontal hanging of 2 or more speakers) , two plates are located under the top one:
B
a Link Plate (with 6 holes)
C
an External Plate (with 2 holes)
These two plates are designed to be moved from their position in order to link another speaker on its side depending on the configuration wanted.
Example: for a 1 speaker vertical configuration, this is how the two plates must be positioned:
PLATES B MUST BE ROTATED
UPSIDE DOWN
5. VERTICAL HANGING
4 x Q 15 can be hanged vertically by using the vertical flybar FLY BAR FL-B V Q 15.
B
C
B
A
C
B
A
C
