12
EN
4.3
HORIZONT
AL CONFIGURA
TIONS

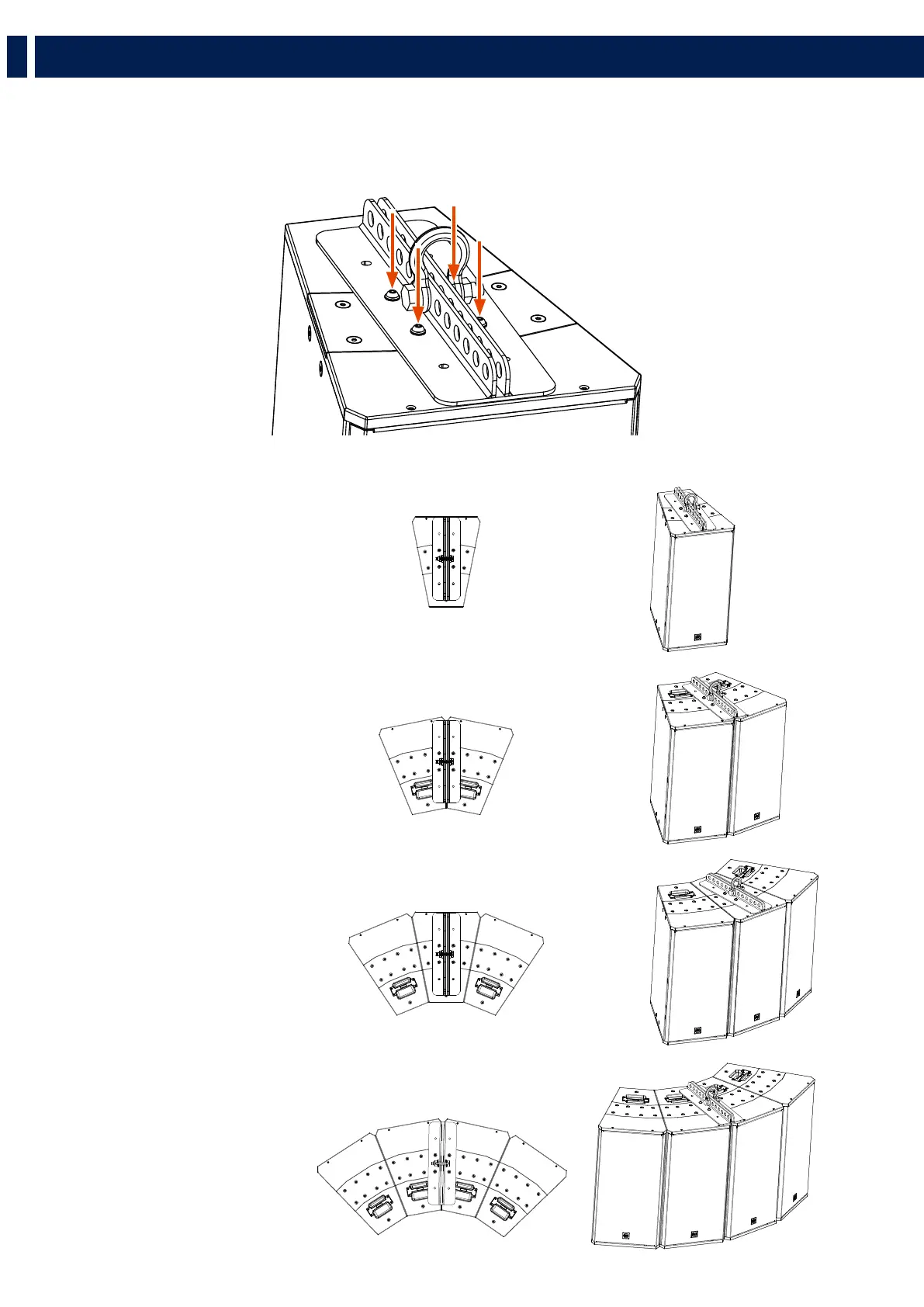

Once screwed back the top plate
,
secure the horizontal flybar over the top plate by screwing (on the middle holes) the four M10 screws provided.
T
hese are all the 4 possible configurations by using one single Flybar:
4.
HORIZONT
AL HANGING
1 SPEAKER
HORIZONT
AL
CONFIGURA
TION
3 SPEAKERS
HORIZONT
AL
CONFIGURA
TION
2 SPEAKERS
HORIZONT
AL
CONFIGURA
TION
4 SPEAKERS
HORIZONT
AL
CONFIGURA
TION
