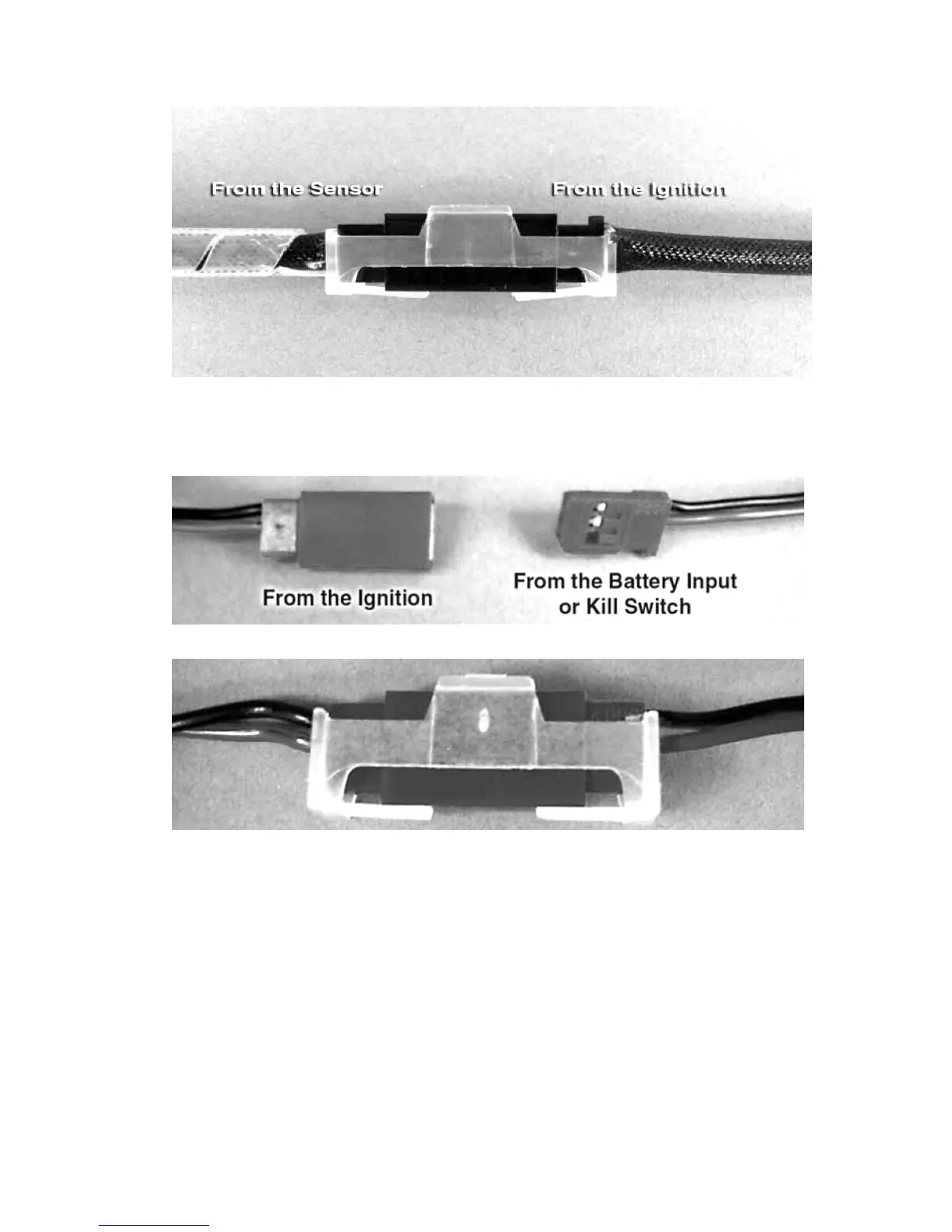

2. Install the silicone wire cover over the pick up lead coming from the engine (cut the
excess silicon wire cover) and connect the lead to the pick–up lead from the Electronic
Ignition Module. Secure the connection with the included three pin connector securing
clip.
3. Connect the kill switch lead to the red connector from the ignition control module using
the lead from the kill switch or with the included three pin connector with pig tail. Use one
of the included three pin securing clips to secure the connection.
4. Connect the ignition module battery to the kill switch. Any 4.8-6.0V, 1000mAh and
above capacity battery will work well for this.Use heat shrink tubing to secure this
connection.
5. Install the ignition kill switch and charge jack on the aircraft so that it is easily
accessible from the outside of the plane.
