RCS TBZ48A - Setting Temperature Setpoints; Adjusting Heating and Cooling Setpoints

DCN: 140-02121-02 Page 12
Setting the Heating or Cooling Temperature Setpoint
Setpoint Change
To change the setpoint, press the Up or Down arrow buttons. The screen will switch to the
setpoint change screen (as above) and show the current setpoint of the current heating or
cooling mode. Adjust setpoint temperature up or down with the arrow buttons.
! When in the Setpoint Change screen, pressing the MODE button will switch
between the Heat and Cool setpoints.
Setpoint Push: Note that the cooling setpoint cannot be set below the heating setpoint.
The thermostat will “push” the heating setpoint lower if one attempts to lower the cooling
setpoint below the heating setpoint. It maintains a 3 degree separation between the
heating and cooling setpoint. The same is true for raising the heating setpoint above the
cooling setpoint. Again the thermostat will “push” the cooling setpoint up to maintain the 3
degree separation.
Lower Temperature
Raise Temperature

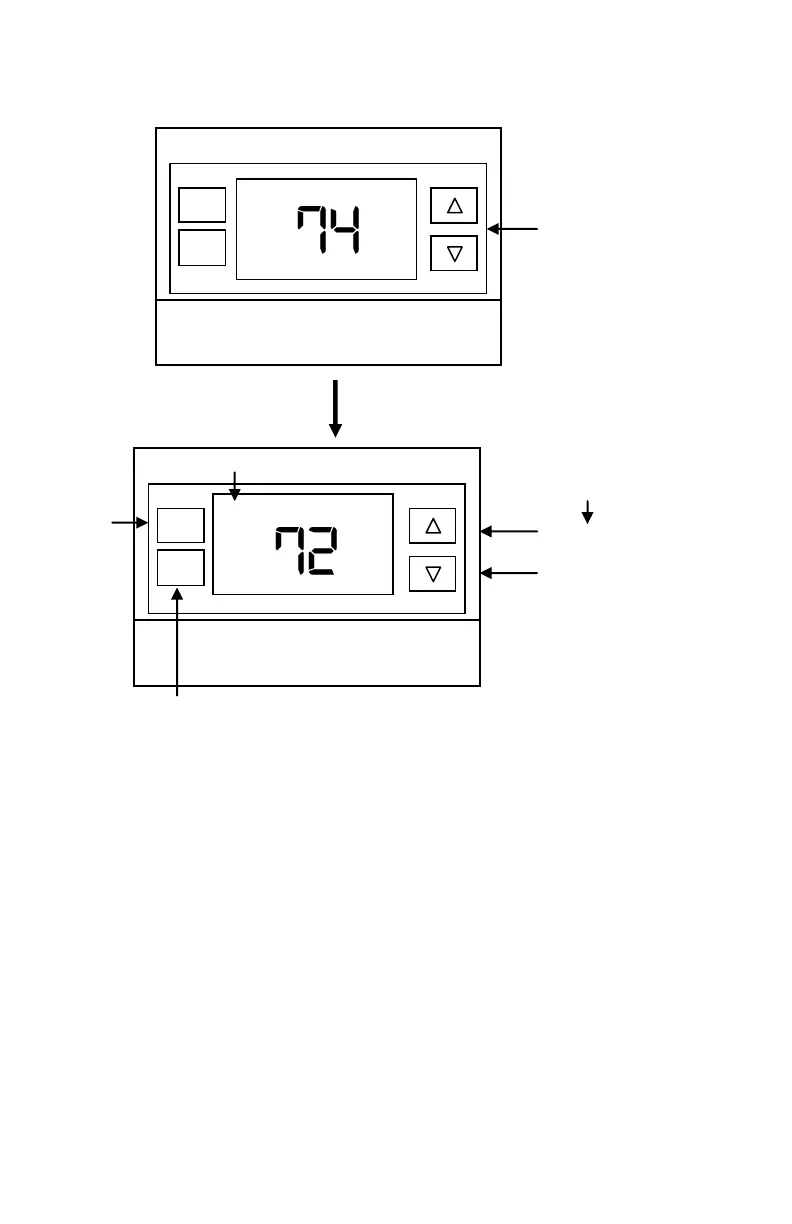

Press either Up or Down
arrow button to go to the
Setpoint Change screen
Setpoint Change screen
Press “Done” (FAN button) to set the setpoint and exit back to the main
thermostat screen or wait for the screen to automatically time out.
Press the Up or Down arrow
buttons to set the desired
temperature setpoint
Pressing the Up or Down
buttons will change the
setpoint 1 degree. Press and
hold the button to ramp the
setpoint.
Setpoint being changed
Press MODE
button to
change the
setpoint being
adjusted.
72H 80C
2
Off
Auto
MODE
FAN
Set to
2
Heat
Done
MODE
FAN
