STEP ACTION DISPLAY
1 Press either private mode switch button PROGRAMMING
2
Press and release the RED button for less than 3
seconds
Date and Time
DD/MM/YY HH:MM
3
Press and hold the RED button for greater than 3
seconds to store the value
Date and Time
DD/MM/YY HH:MM
4
Press and hold the RED button for greater than 3
seconds to store the value
Zero Time Credit
No Yes
5
Press and release the GREEN button until the correct
value is shown
Token hh:mm
XX:XX
6
Press and release the RED button for less than 3
seconds to move the cursor one place through the
programmable setting of the displayed parameter
Token hh:mm
£XX:XX
7
Press and hold the RED button for greater than 3
seconds to store the value
Token hh:mm
£XX:XX
8
Press and hold the RED button for greater than 3
seconds to store the value
Max Time hh:mm
10:00
9
Press and hold the RED button for greater than 3
seconds to store the value
Tournament Mode
No Yes
10
Press and hold the RED button for greater than 3
seconds to store the value
Operational Mode
Meter Timer
11
Press and hold the RED button for greater than 3
seconds to store the settings
Factory Defaults
No Yes
12 Exiting Programming
4.2 Factory Default Reset
DISPLAY REMARKS FACTORY DEFAULTS
Factory
Defaults
No Yes
If Factory Defaults are reset then the following parameters are changed:
a Zero Timer Credit 00:00:00
b Token Minutes 60
c Max Time Minutes 600
d Total Coins 0
e Total Seconds 0
f Reverse Energy Detection “RED” when displayed “RED” Not Displayed
4.3 Date and Time
The following date and time parameters are settable: Day, Month, Year, Hours, Minutes.
4.4 Zero Time Credit
Manually reset credit to zero.
4.5 Token Value
The amount of time credited for each coin inserted is settable in the range 0 to 599 minutes.
4.6 Maximum Time
The maximum credit is settable in the range 0 to 1440 minutes at which point the display will change
to Maximum Reached.
4.7 Tournament Mode Override
In this mode the timer dispenses electricity without the consumer needing to enter coins.
4.8 Operational Mode Meter or Timer
The timer mode setting operates at cost per time of electricity or meter mode at cost per kWh unit of
electricity.
5. APPENDIX

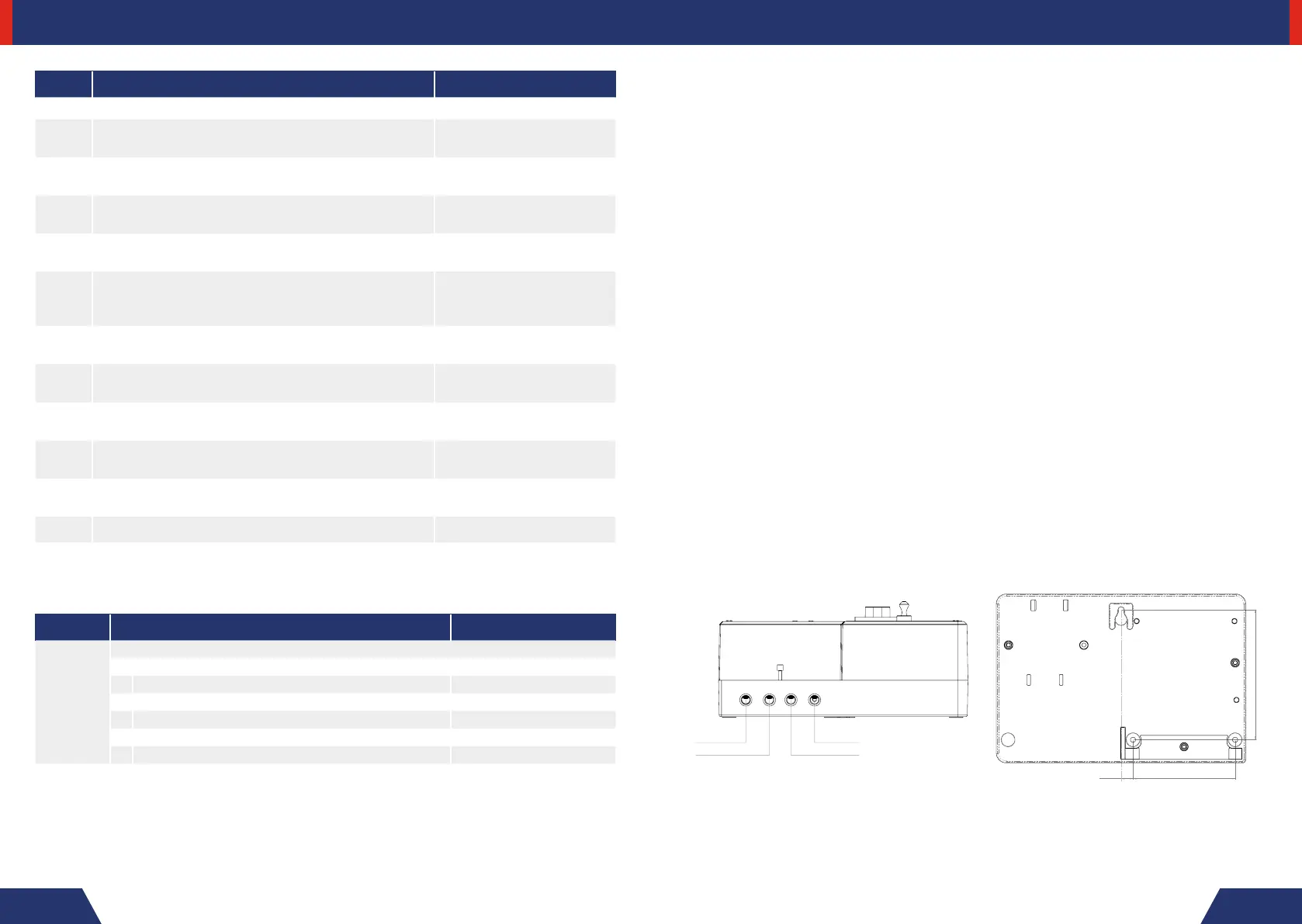

5.1 Wiring Diagram and Mounting Template (shown overleaf)
This timer must be installed by a competent, qualified electrician to the standards that satisfy the
requirements of the current Institute of Electrical Engineers (IEE).
TIMER MODE TIMER MODE
WIRING DIAGRAM WALL MOUNTING TEMPLATE
LOAD
NEUTRAL
LOAD
LIVE
SUPPLY
LIVE
SUPPLY
NEUTRAL
104
133
12
TOP
METER
ACCOMMODATES
SCREW SHANK UP
TO 5.2MM
Description
Wiring DIagram
Part No
M101-WD
Revison
0
Date Created
09/06/2016
