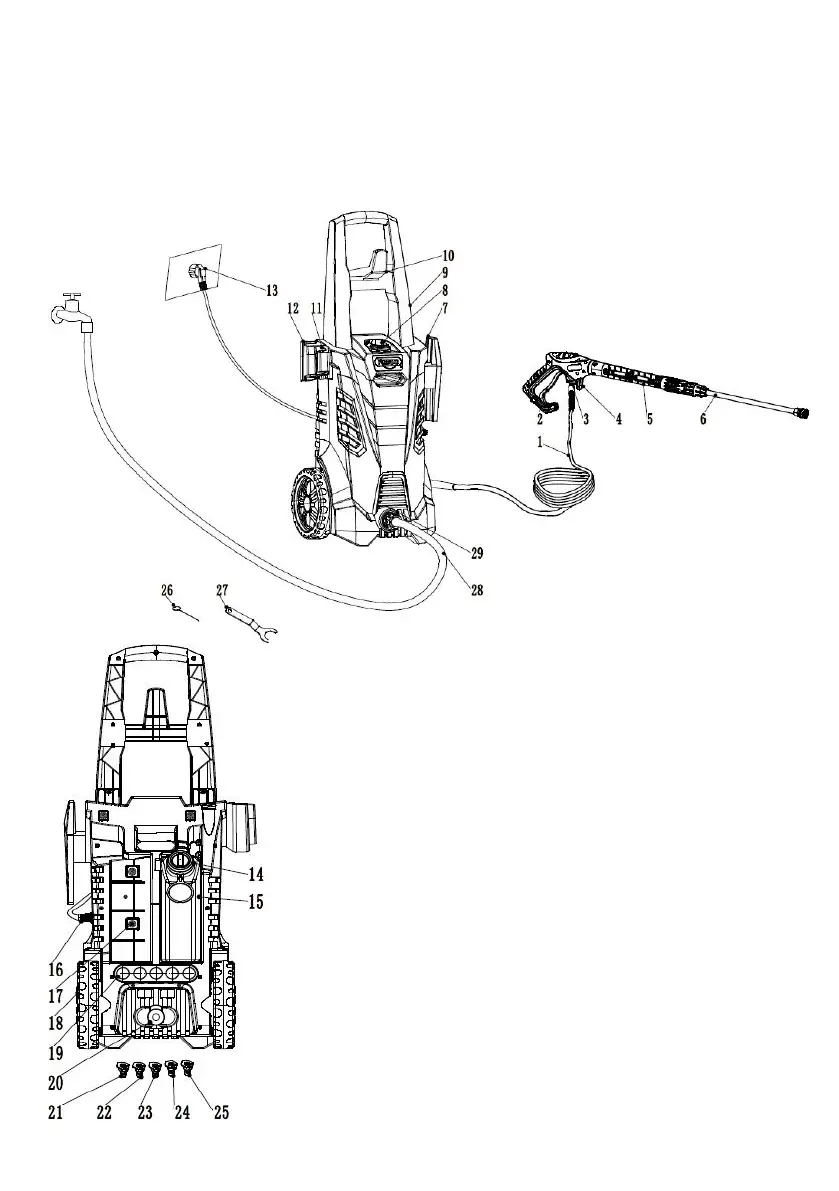

Know Your Electric Pressure Washer
Read the operator’s manual and safety instructions carefully before operating the electric
pressure washer. Compare the illustration below to the electric pressure washer in order to
familiarize yourself with the location of the various controls and adjustments. Save this manual
for future reference.
1. High pressure hose
2. Trigger(with safety lock)
3. High pressure hose
connection
4. Button(for high pressure
hose connection)
5. Trigger gun
6. Extension spray lance
7. Power cord holder
8. On/Off switch
9. Transportation handle
10. Hose holder
11. Extension spray lance
holder
12. Trigger gun holder
13. Plug
14. Detergent bottle cap
15. Built-in detergent bottle
16. Power cord
17. Fittings storage
18. Wheel
19. Onboard storage for Quick-
Connect nozzles
20.Water outlet (high pressure hose
connection)
21.0ºQuick-Connect nozzle (red)
22.15ºQuick-Connect nozzle (yellow)
23.25ºQuick-Connect nozzle (green)
24.40ºQuick-Connect nozzle (white)
25. Soap Quick-Connect nozzle
(black)
26.Needle cleaning out tool
27.Wrench
28. Water inlet pipe
29. Water inlet (garden hose
connection)
