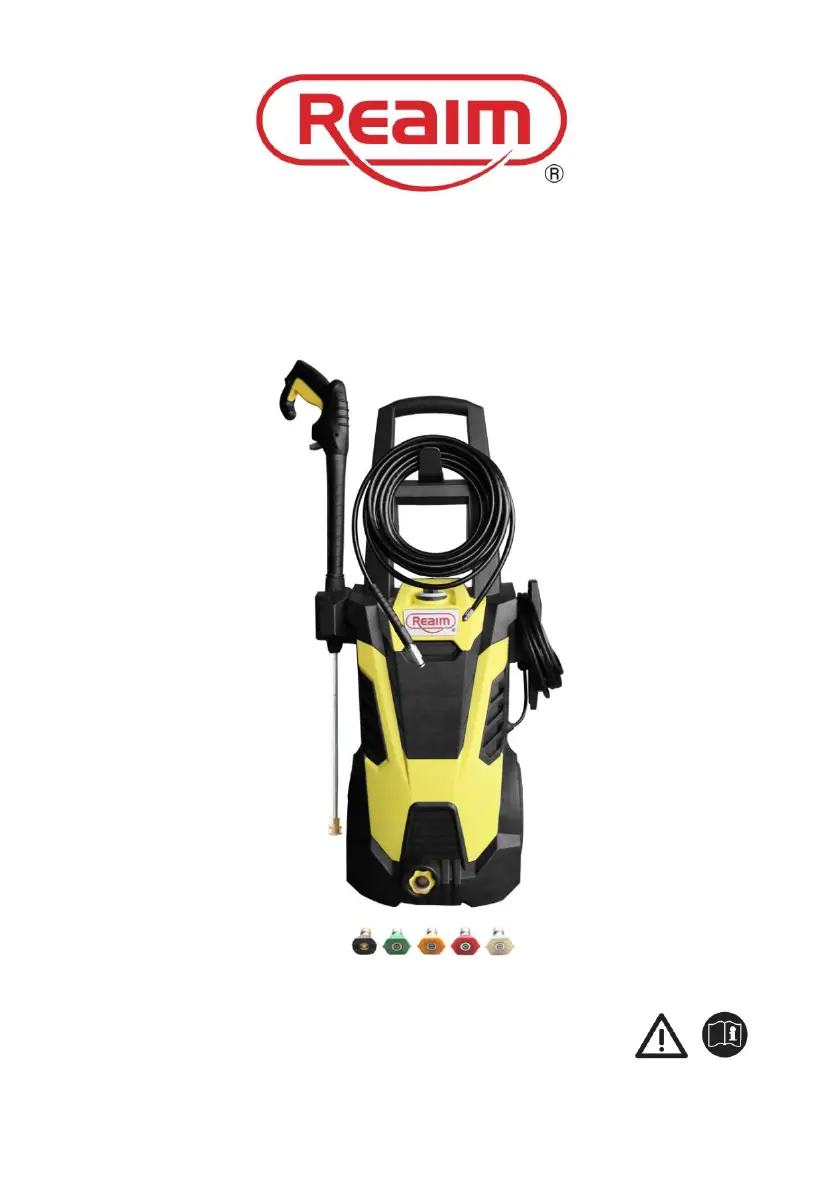

Model BIMK
CAUTION : All Operators Must Read These Instructions Before Use.
ELECTRIC PRESSURE WASHER

Table of Contents

Questions and Answers

  • R
    robert01Aug 1, 2025
    Why is the water pressure fluctuating on my Reaim BIMK Pressure Washer?
    • K
      Kristin DennisAug 1, 2025
      Fluctuating water pressure in your Reaim Pressure Washer can be due to several reasons: * The pump may be drawing in air. Ensure all hoses and connections are airtight. * The water supply might not be sufficient. Try to increase the water pressure, check for any blockages in the supply, and consider changing to a larger pipe. * Valves might be dirty, worn, or sticking. In this case, you will need to contact your service center. * Pump seals worn. In this case, you will need to contact your nearest service center.
  • W
    William WheelerAug 6, 2025
    How to fix pulsating water flow in my Reaim BIMK?
    • M
      marcus32Aug 6, 2025
      Pulsating water flow in your Reaim Pressure Washer can be caused by: * Air in the inlet hose or pump. Allow the machine to run with the trigger open until regular working pressure resumes. * An inadequate water supply. Increase water pressure, check for blockages, and consider changing to a larger pipe. * A partially blocked jet. Clean the jet with a needle, spraying water rearwardly through it. * A blocked water filter. Clean the filter. * A folded pipe. Unfold the pipe.
  • R
    Ryan JonesAug 9, 2025
    Why won't my Reaim Pressure Washer start?
    • P
      Peter BeckAug 10, 2025
      If your Reaim Pressure Washer won't start, here are a few things to check: * Make sure the machine is properly plugged into a working receptacle. If it is plugged in, try a different receptacle to rule out a faulty one. * Check the fuse and replace it if it has blown. Also, try unplugging other appliances to reduce the load. * If you're using an extension cable, try using the pressure washer without it.
  • S
    Sharon CaldwellAug 14, 2025
    What to do if my Reaim Pressure Washer stops working?
    • S
      Shawn MeyersAug 14, 2025
      If your Reaim Pressure Washer suddenly stops, consider the following: * Check the fuse and replace it if blown. * Ensure that the mains voltage corresponds to the specifications on the nameplate and unplug other appliances. * The thermal sensor may have activated. If so, leave the machine to cool for 5 minutes. * The jet might be partially blocked. Clean it with a needle and spray water rearwardly through the jet.
  • M
    melissa93Aug 19, 2025
    Why does the fuse keep blowing on my Reaim BIMK?
    • P
      Pamela RiveraSep 12, 2025
      If the fuse keeps blowing on your Reaim Pressure Washer, it could be due to: * A fuse that is too small. Replace it with a fuse that has a higher amperage consumption than the washer. * An increase in amperage. Try using the pressure washer without an extension cable.
  • C
    carolynjonesAug 22, 2025
    What to do if my Reaim BIMK is on but no water comes out?
    • S
      Samantha SantosAug 23, 2025
      If your Reaim Pressure Washer is on but no water is coming out, check these: * The water filter may be blocked. Clean the filter. * The jet may be blocked. Clean the jet with a needle, spraying water rearwardly through it.
  • B
    Brent LeonardAug 27, 2025
    Why does my Reaim BIMK Pressure Washer turn on and off by itself?
    • Z
      Zachary ParkerAug 27, 2025
      If your Reaim Pressure Washer turns on and off by itself, it may be due to: * No water supply. Connect the inflow water. * Pump fuse and/or trigger out of order. In this case, you will need to contact your nearest service center.

Summary

Safety Instructions

General Operator and Environment Safety

Trained operators, child safety, proper environment, cable checks, temp limits, explosion risk.

High-Pressure Jet Handling and Hazards

Safe handling of jets: avoid people/equipment, hold firmly, protect from debris.

Component Safety: Detergents, Power, Parts

Safety for detergents, power disconnection, spare parts, and damaged components.

Hose, Coupling, and Cable Safety

Safety for hoses, couplings, and extension cables.

Power and Water Connection Safety

Extension Cable and Operator Safety

Extension cable specs, operator capacity, supervision, flammable liquids, water safety.

Main Power Connection Requirements

Electrical connection by qualified electrician; use residual current device.

Water Network Connection Requirements

System separator required for water connection; use EN 12729 type BA.

Know Your Electric Pressure Washer

Manual and Safety Review

Read manual and safety instructions carefully before operation.

Component Identification

Familiarize with controls and identify all parts using the provided illustration and list.

Product Description and Unpacking

Intended Use and Application Areas

For residential use; do not use in explosive areas.

Water Requirements and Design

Use cold water only; avoid dirty or chemical water for pump longevity.

Unpacking and Initial Checks

Verify carton contents, check for damage, and follow assembly power precaution.

Technical Data, Circuitry, and Safety Devices

Specifications and Circuitry

View technical specifications and electrical circuit diagram.

Safety Devices Explained

Explanation of unloader valve, trigger gun lock, and thermal sensor.

Assembly Steps Overview

Positioning and Handle Attachment

Position washer stably and attach the transaction handle.

Holder Installation and Hose Connection

Install holders, connect hose to gun/outlet, ensure water supply capacity.

Hose Safety and Water Inlet

Keep hoses safe, connect water inlet adapter and garden hose.

Water Supply and Electrical Connection

Connect hose to supply, check temp, use clean water, check filter, connect power, reset GFCI.

Operation and Nozzle Usage

Operating the Washer with TSS

Understand TSS, handle gun/lance firmly, position machine, prime, and start.

Nozzle Selection and Connection

Select correct nozzle, understand patterns, and connect safely after engaging lock.

Nozzle Disconnection and Detergent Use

Nozzle Disconnection and Detergent Use

Disconnect nozzles safely, use approved detergents, test, fill, and apply correctly.

Detergent System Cleaning

Rinse detergent system to prevent clogging.

Optional Attachments and Rinsing

Patio Cleaner;Brush Attachment

Connect/disconnect patio cleaner/brush safely with adapter.

Rinsing Procedure and Nozzle Storage

Rinse top-down, store nozzles on unit.

Nozzle Descriptions and Chemical Prohibitions

Nozzle Descriptions and Detergent Nozzle

Details of nozzle types and requirement for detergent application.

Chemical Prohibitions

Never use bleach, solvents, ammonia, acids, or other corrosive chemicals.

Shutting Down the Pressure Washer

Power Off and Pressure Release

Turn off, unplug, shut off water, release pressure, engage lock.

Hose Disconnection

Disconnect garden hose and high-pressure hose from unit and gun.

Storage and Winterizing

Proper Storage Procedures

Store indoors, dry, frost-free, empty water, avoid heat sources.

Winterization and Freeze Damage Warning

Winterize below freezing, use anti-freeze, avoid freeze damage.

Maintenance and Environmental Protection

Maintenance Procedures and Safety

Disconnect power, clean filter/nozzle, back flush, clear vents, lubricate couplings.

Appliance Recycling Guidelines

Recycle old appliances properly through designated collection systems.

Troubleshooting Common Issues

Machine Start-up and Operation Problems

Solutions for start-up issues, stops, pulsating, or no water output.

Pressure Issues and Fuse Problems

Solutions for fluctuating pressure, fuse blows, and machine cycling.

Limited Warranty Information

Warranty Coverage and Exclusions

Two-year warranty details, limitations, exclusions, and contact information.

Commercial Use Warranty

Commercial, industrial, or rental use reduces warranty to 30 days.

WEEE - Waste Disposal

Disposal Symbol and Procedure

Symbol indicates non-household waste; follow proper recycling procedures.

Environmental Responsibility

Proper disposal prevents negative environmental and health consequences.

Reaim BIMK Specifications

General IconGeneral
BrandReaim
ModelBIMK
CategoryPressure Washer
LanguageEnglish
