RealCup RC400 - Servicing the Triac assembly and the Transformer; Servicing the Tank Assembly

20
20
Servicing (continued):

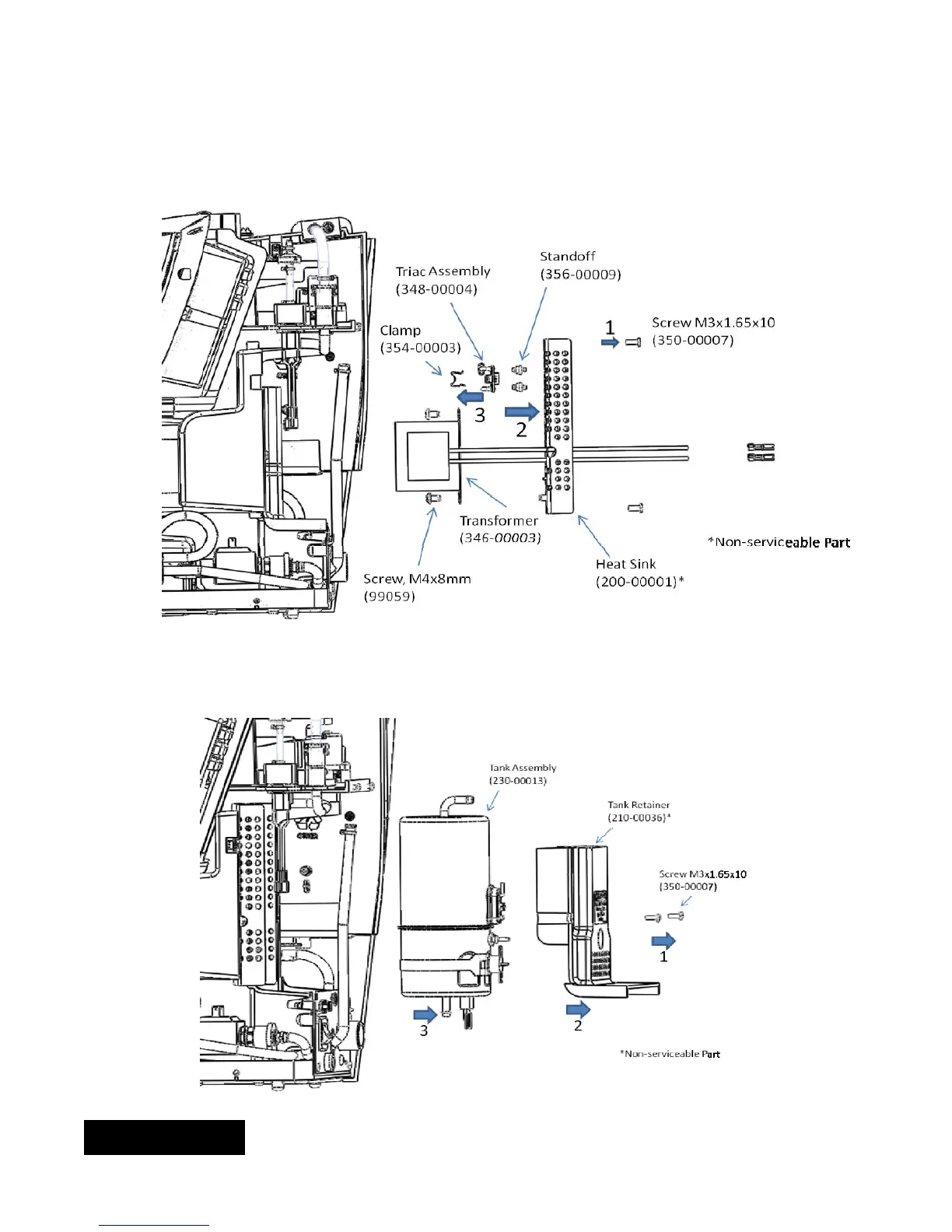

6b) Servicing the Triac assembly and the Transformer
Follow the sequence outlined below to gain access to these components. Reverse order for reassembly.
6c) Servicing the Tank Assembly
Follow the sequence outlined below to gain access to the Tank Assembly. Cut the strain relief straps on the
upper and lower hoses, pull hoses from tank, and disconnect all wiring. Reverse order for reassembly.
Replace all strain relief straps. Turn brewer on, purge, and check for leaks.
ENGLISH
