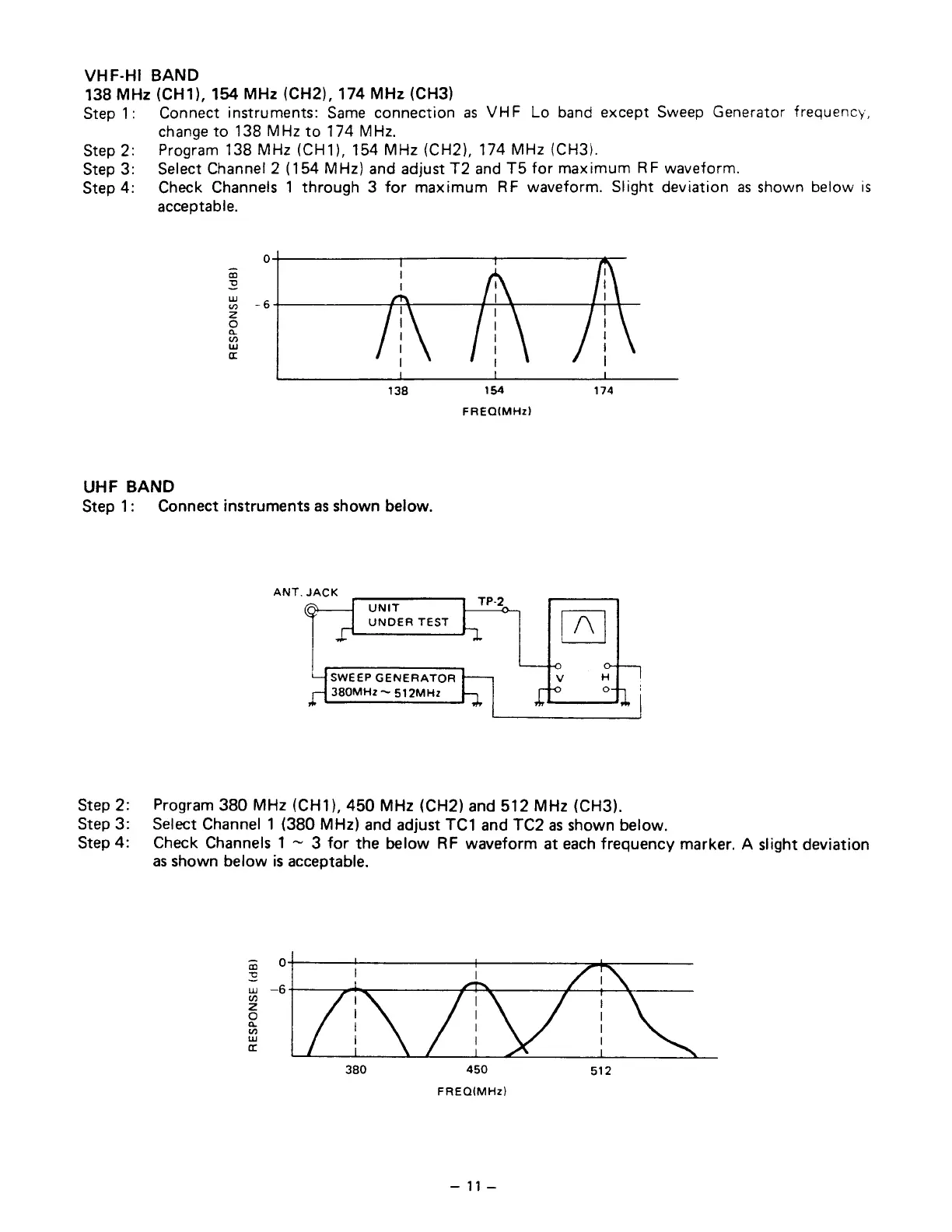

VHF-HI BAND
138 MHz (CH1), 154 MHz (CH2), 174 MHz (CH3)
Connect instruments: Same connection as VHF Lo band except Sweep Generator frequency,
Step 1:
change to 138 MHz to 174 MHz.
Step 2: Program 138 MHz (CH1), 154 MHz (CH2), 174 MHz (СНЗ).
Step 3: Select Channel 2 (154 MHz) and adjust T2 and T5 for maximum RF waveform.
Step 4: Check Channels 1 through 3 for maximum RF waveform. Slight deviation as shown below is
acceptable.
=
2
2
©
c
FREQIMHz)
UHF BAND
Step 1: Connect instruments as shown below.
ANT. JACK
Step 2: Program 380 MHz (CH1), 450 MHz (CH2) and 512 MHz (CH3).
Step 3: Select Channel 1 (380 MHz) and adjust TC1 and TC2 as shown below.
Step 4: Check Channels 1 ~ 3 for the below RF waveform at each frequency marker. A slight deviation
as shown below is acceptable.
V
380 450 512
FREO(MHz)
RESPONSE (dB)
= 11 —
