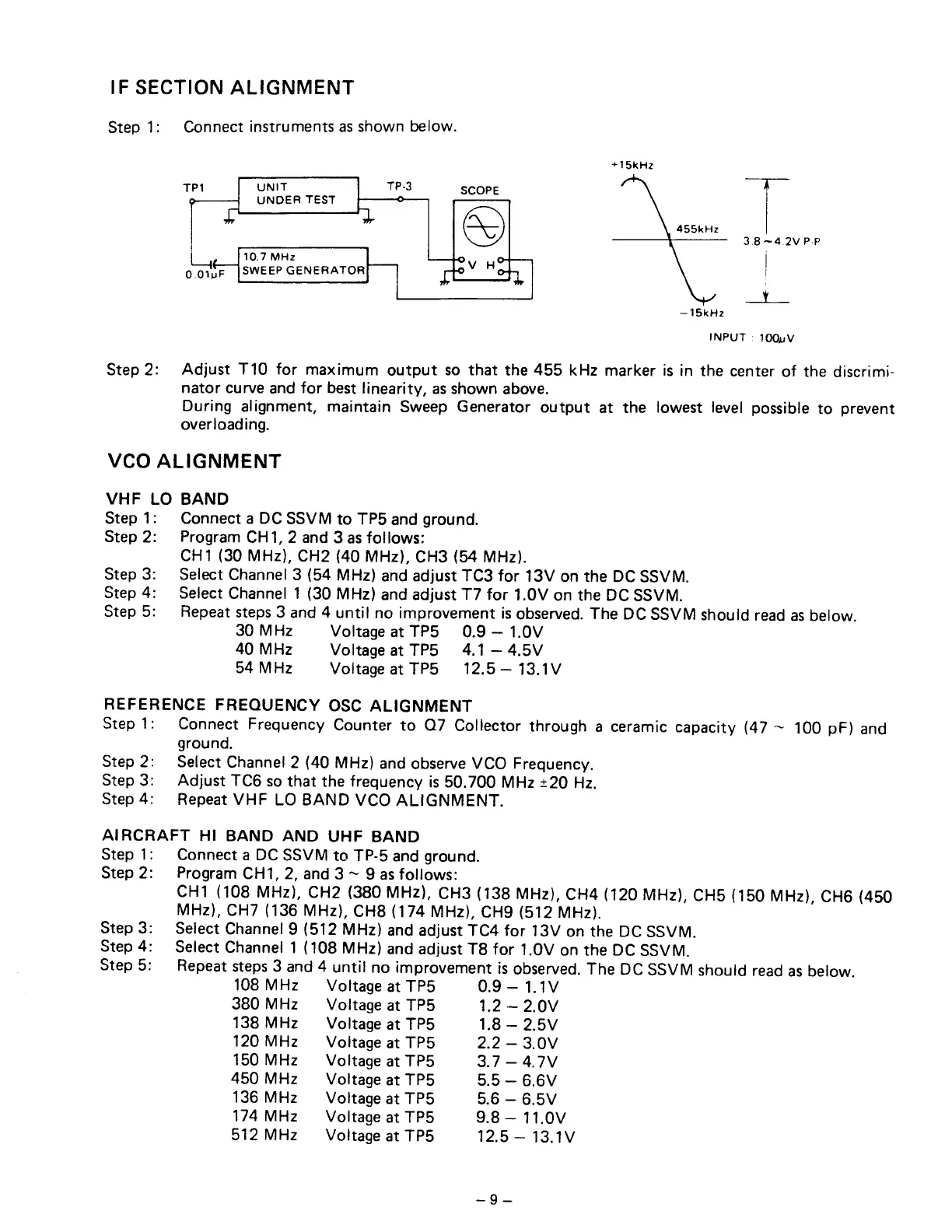

IF
SECTION
ALIGNMENT
Step
1:
Connect
instruments
as
shown
below.
*15kHz
TP1
UNIT
4
о
UNDER
TEST
455kHz
3.8—42VP.P
10.7
MHz
|
o
OIF
|SWEEP
GENERATOR
|
¥
—15kHz
INPUT
:
100uV
Step
2:
Adjust
T10
for
maximum
output
so
that
the
455
kHz
marker
is
in
the
center
of
the
discrimi-
nator
curve
and
for
best
linearity,
as
shown
above.
During
alignment,
maintain
Sweep
Generator
output
at
the
lowest
level
possible
to
prevent
overloading.
VCO
ALIGNMENT
VHF
LO
BAND
Step
1:
Connect
a
DC
SSVM
to
ТРЭ
and
ground.
Step
2:
Program
CH1,
2
and
3
as
follows:
CH1
(30
MHz),
CH2
(40
MHz),
CH3
(54
MHz).
Step
3:
Select
Channel
3
(54
MHz)
and
adjust
ТСЗ
for
13V
on
the
DC
SSVM.
Step
4:
Select
Channel
1
(30
MHz)
and
adjust
T7
for
1.0V
on
the
DC
SSVM.
Step
5:
Repeat
steps
3
and
4
until
no
improvement
is
observed.
The
DC
SSVM
should
read
as
below.
30
MHz
Voltage
at
TP5
0.9
1.0V
40
MHz
Voltage
at
TPB
4.1
4.5V
54
MHz
Voltage
at
ТРБ
12.5
13.1V
REFERENCE
FREQUENCY
OSC
ALIGNMENT
Step
1:
Connect
Frequency
Counter
to
Q7
Collector
through
a
ceramic
capacity
(47
~
100
pF)
and
ground.
Step
2:
Select
Channel
2
(40
MHz)
and
observe
VCO
Frequency.
Step
3:
Adjust
TC6
so
that
the
frequency
is
50.700
MHz
+20
Hz.
Step
4:
Repeat
VHF
LO
BAND
VCO
ALIGNMENT.
AIRCRAFT
HI
BAND
AND
UHF
BAND
Step
1:
Connect
a
DC
SSVM
to
TP-5
and
ground.
Step
2:
Program
CH1,
2,
and
3
9
as
follows:
CH1
(108
MHz),
CH2
(380
MHz),
CH3
(138
MHz),
CH4
(120
MHz),
CH5
(150
MHz),
CH6
(450
MHz),
CH7
(136
MHz),
CH8
(174
MHz),
CH9
(512
MHz).
Step
3:
Select
Channel
9
(512
MHz)
and
adjust
TC4
for
13V
on
the
DC
SSVM.
Step
4:
Select
Channel
1
(108
MHz)
and
adjust
T8
for
1.0V
on
the
DC
SSVM.
Step
5:
Repeat
steps
З
and
4
until
no
improvement
is
observed.
The
DC
SSVM
should
read
as
below.
108
MHz
Voltage
at
TP5
0.9—
1.1V
380
MHz
Voltage
at
TP5
1.2
2.0V
138
MHz
Voltage
at
TPS
1.8
2.5V
120MHz
Voltage
at
TP5
2.2
3.0V
150
MHz
Voltage
at
TP5
3.7
4.7V
450
MHz
Voltage
at
TP5
5.5
6.6V
136
MHz
Voltageat
TP5
5.6
6.5V
174
MHz
|
Voltage
at
TPS
9.8
11.0М
512
MHz
Voltage
at
TP5
12.5
13.1V
