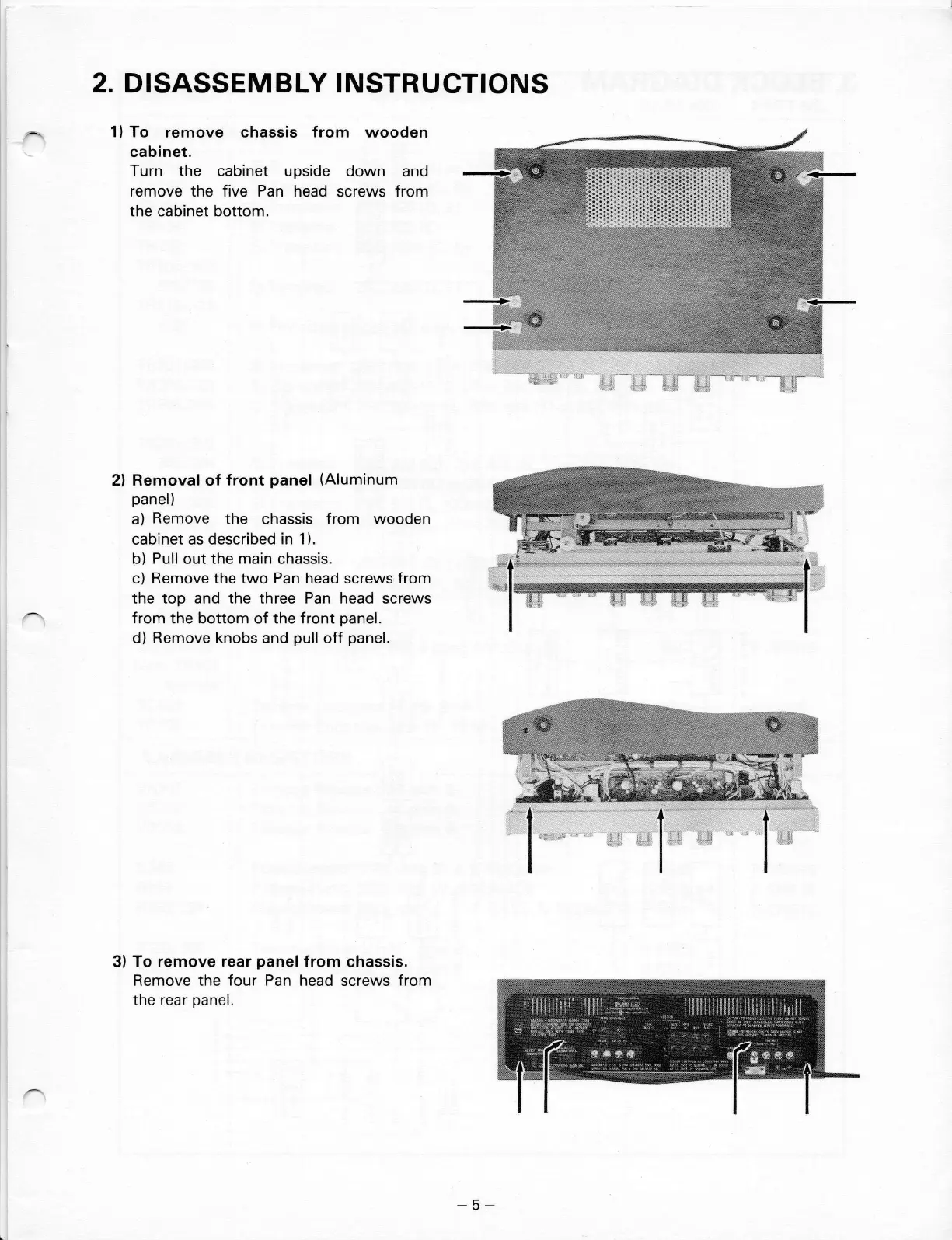

2. DISASSEM BLY I
NSTR
UCTIONS
1)To remove
chassis
from wooden
cabinet.
Turn the
cabinet upside down
and
remove the five Pan head
screws
from
the cabinet bottom.
2) Removal of
front
panel
(Aluminum
panel
)
a)
Remove
the chassis from wooden
cabinet as
described in 1).
b)
Pull
out the main chassis.
c) Remove the two Pan head screws
from
the top and the three Pan head screws
from
the bottom of the front
panel.
d) Remove knobs and
pull
off
panel.
3) To
remove rear
panel
from
chassis.
Remove the
four Pan
head screws
from
the rear
panel.
-5
