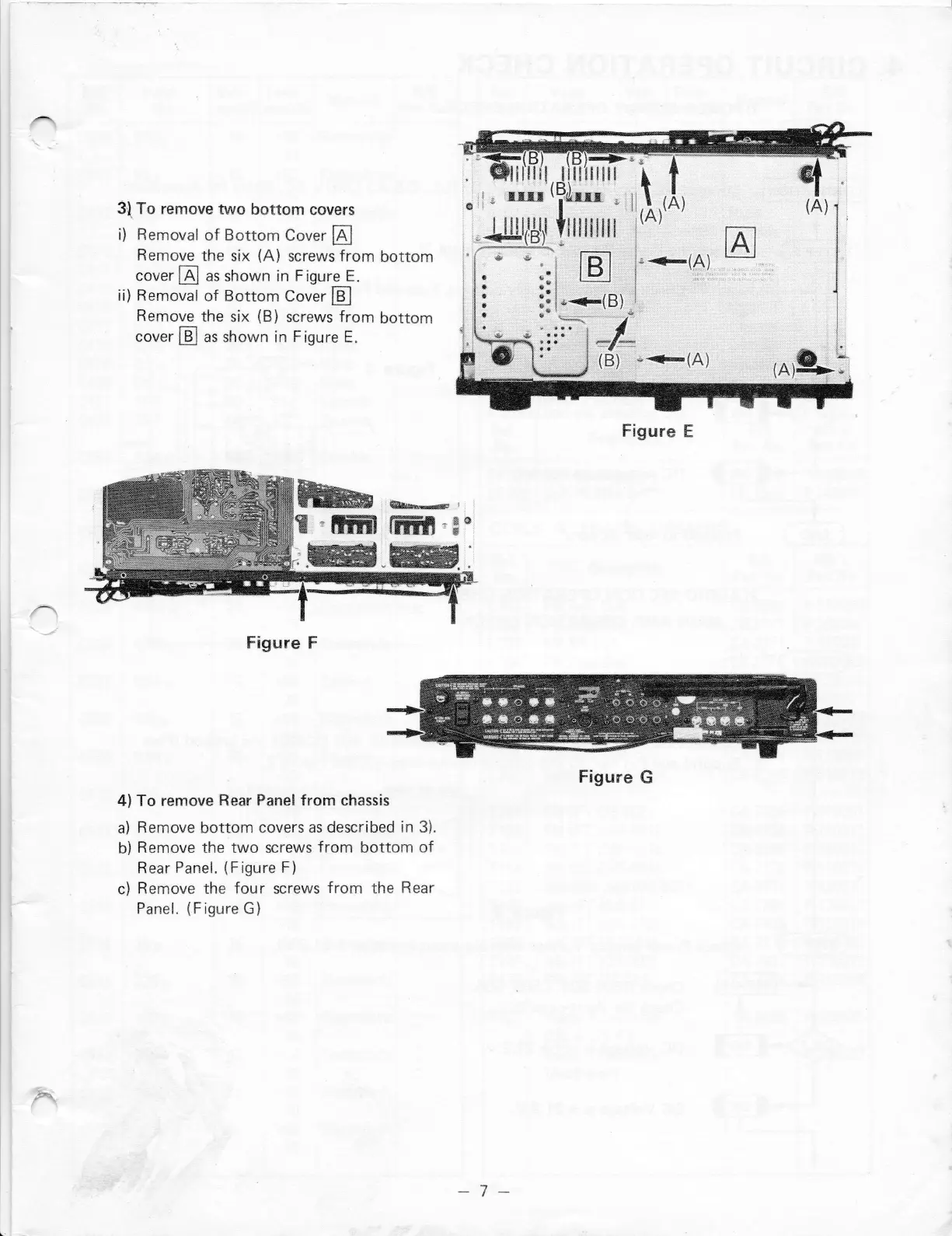

3)To remove
two
bottom covers
i) Removal
of Bottom
Cover
[]
Remove
the six
(A)
screws
from
bottom
cover
@
as
shown
in Figure E.
ii)
Removal
of Bottom
Cover
E]
Remove
the
six
(B)
screws from
bottom
cover
@
as
shown in
Figure
E.
IA
(A)
',[,'l'
1'*
B
+(B)
,l
a
r
*t*
*'r*'"-
(B)
,<--(A)
Figure
E
4)To
remove Rear
Panel
from chassis
a)
Remove
bottom
covers
as described
in
3).
b)
Remove the two screws
from
bottom
of
Rear
Panel.
(Figure
F)
c)
Remove
the
four
screws
frorn
the
Rear
Panel.
(Figure
G)
Figure F
Figure
G
-7 -
