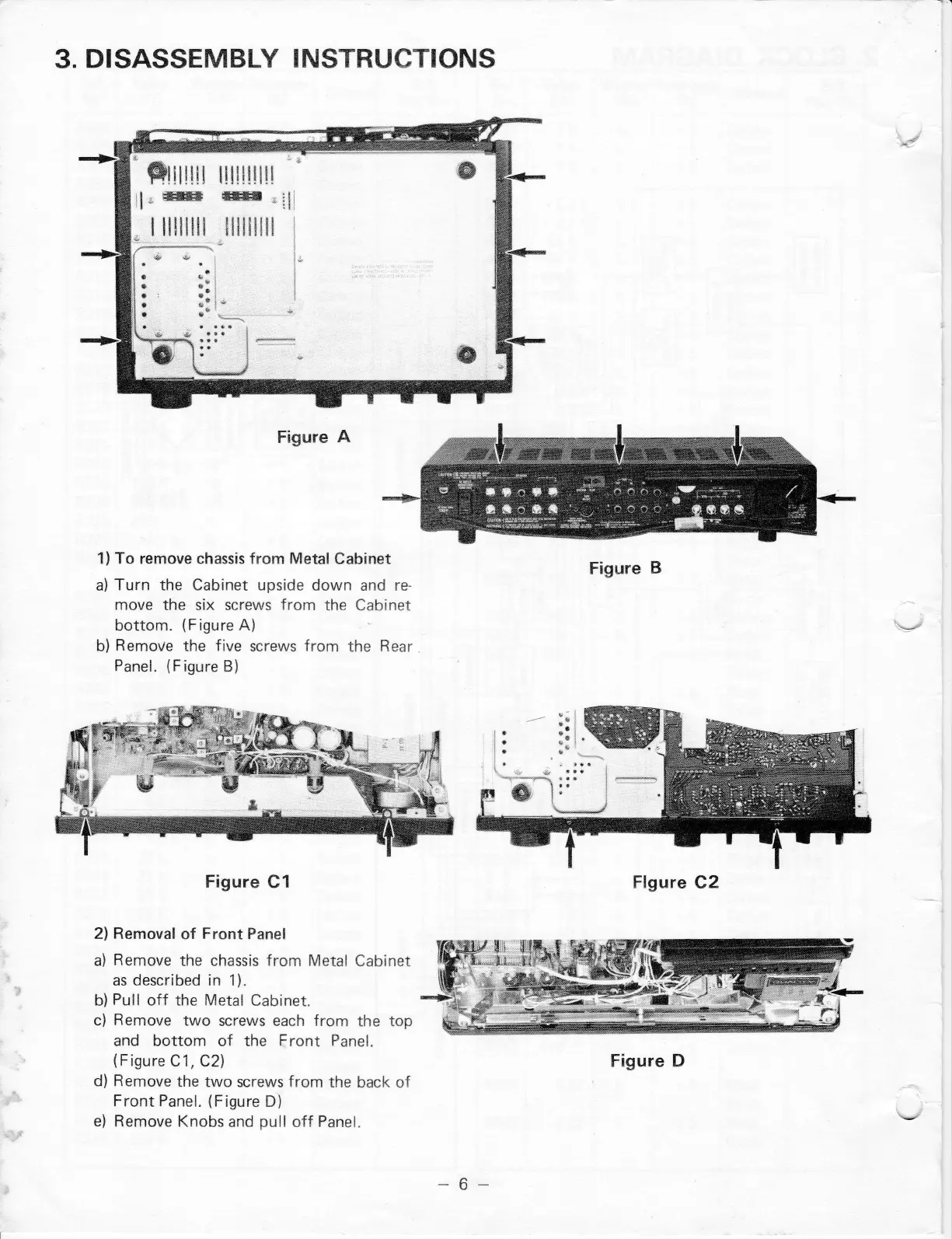

3.
DISASSEMBLY
INSTRUCTIONS
Figure
A
1)To remove chassis from MetalCabinet
a)
Turn the Cabinet upside
down and re-
move
the six screws
from
the Cabinet
bottom.
(Figure
A)
b)
Remove
the
five
screws
from
the
Rear
Panel.
(Figure
B)
Figure
C1
2)
Removal
of
Front
Panel
a)
Remove
the chassis
from Metal
Cabinet
as
described
in 1).
b)
Pull
off
the
Metal
Cabinet.
c)
Remove
two
screws each from
the
top
and
bottom of the
Front Panel.
(Figure
C1, Czl
d) Remove
the two screws from
the
back of
Front Panel.
(Figure
D)
e) Remove
Knobs
and
pull
off
Panel.
Figure
B
Flgure
C2
-6*
Figure D
