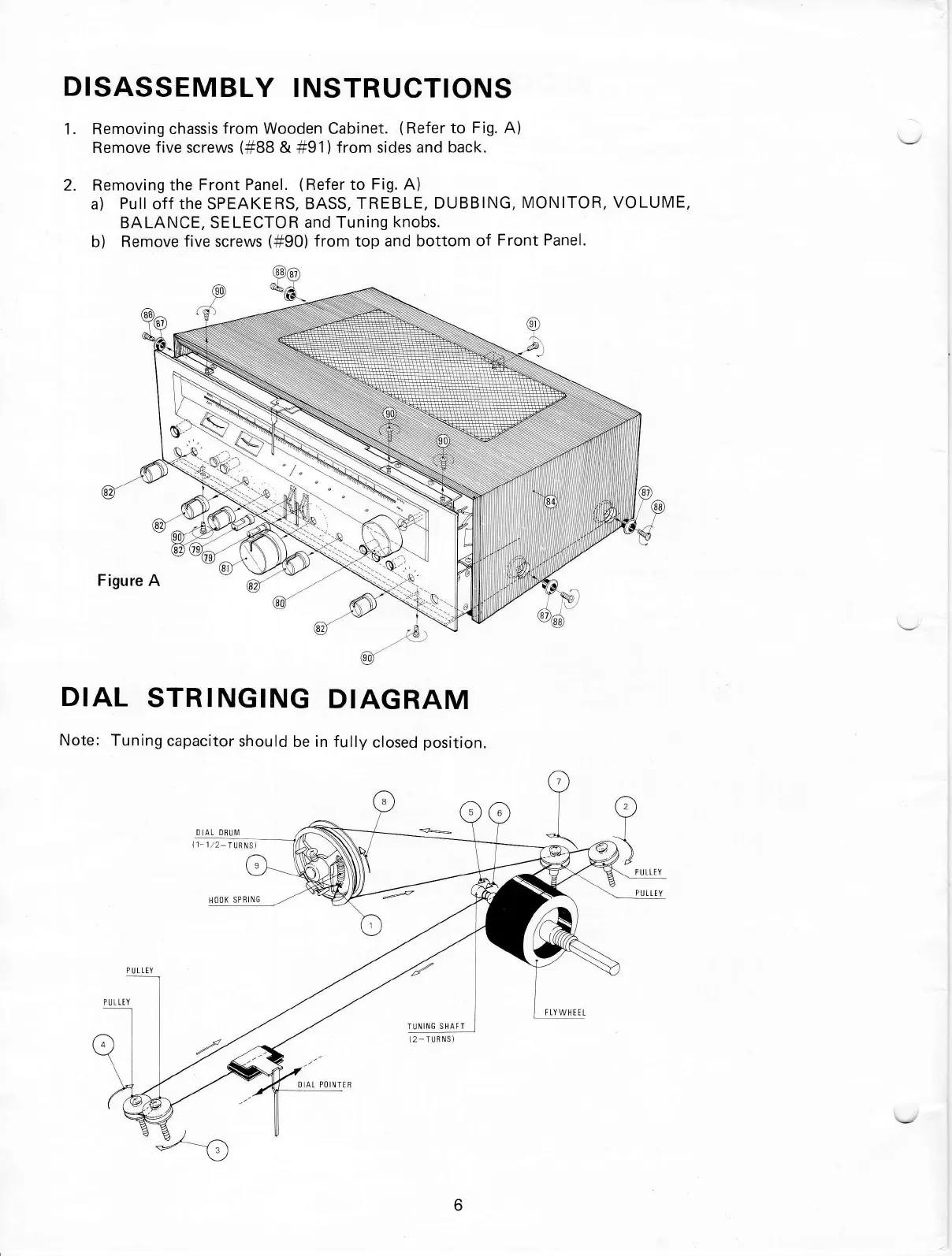

DISASSEMBLY
INSTRUCTIONS
1. Removing
chassis
from Wooden
Cabinet.
(Refer
to
Fig. A)
Remove
five screws
(#88
&
#91)
from sides and back.
2. Removing
the
Front
Panel.
(Refer
to
Fig.
A)
a)
Pull
off
the
SPEAKERS,
BASS,
TREBLE, DUBBING,
MONITOR, VOLUME,
BALANCE,
SELECTOR
and Tuning
knobs.
b)
Remove
five
screws
(#90)
from
top and
bottom of
Front Panel.
Figure
A
a,--
rd-
-@
ffi-\
^.-'-
I
-
(82)
.8 .
-t-v)
@'"
DIAGRAM
fully
closed
position.
@6
DIAL
STRINGING
Note:
Tuning
capacitor
should
be in
-o
