RM-DPC Micro FP Documentation
RDN 10000531 5 13.05.2013

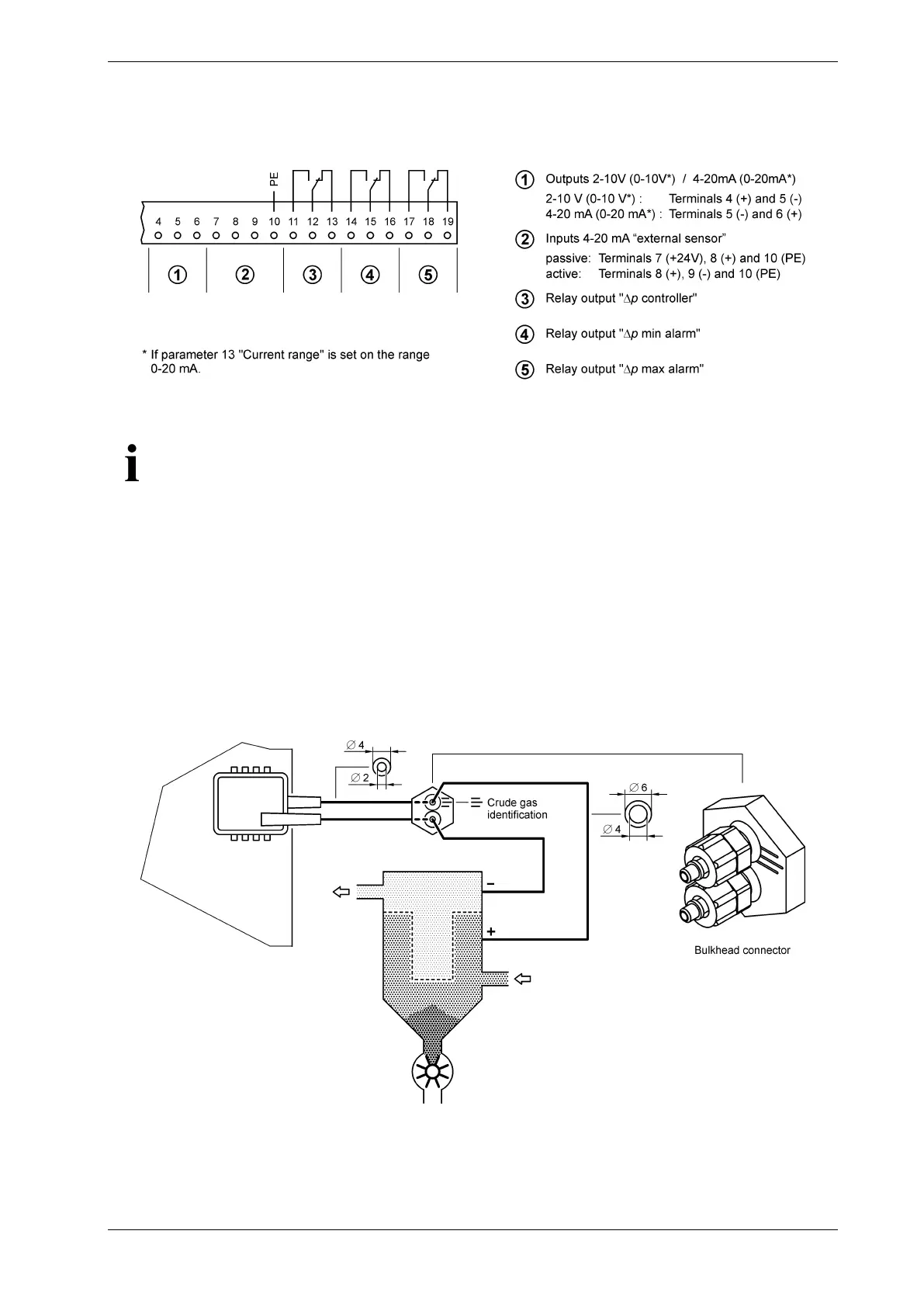

More connections
Signal cables may not be run parallel to power cables.
Tighten all cable glands in use to ensure that the cables are properly enclosed and that protec-
tion rating IP-66 is guaranteed.
Cable glands that are not in use must be closed or replaced with blank plugs.
Connection for differential pressure measurement lines
