Reconyx HYPERFIRE - Camera Controls and Parts; Component Identification; Battery Bay Access

5 ©RECONYX, Inc.
HyperFire
TM

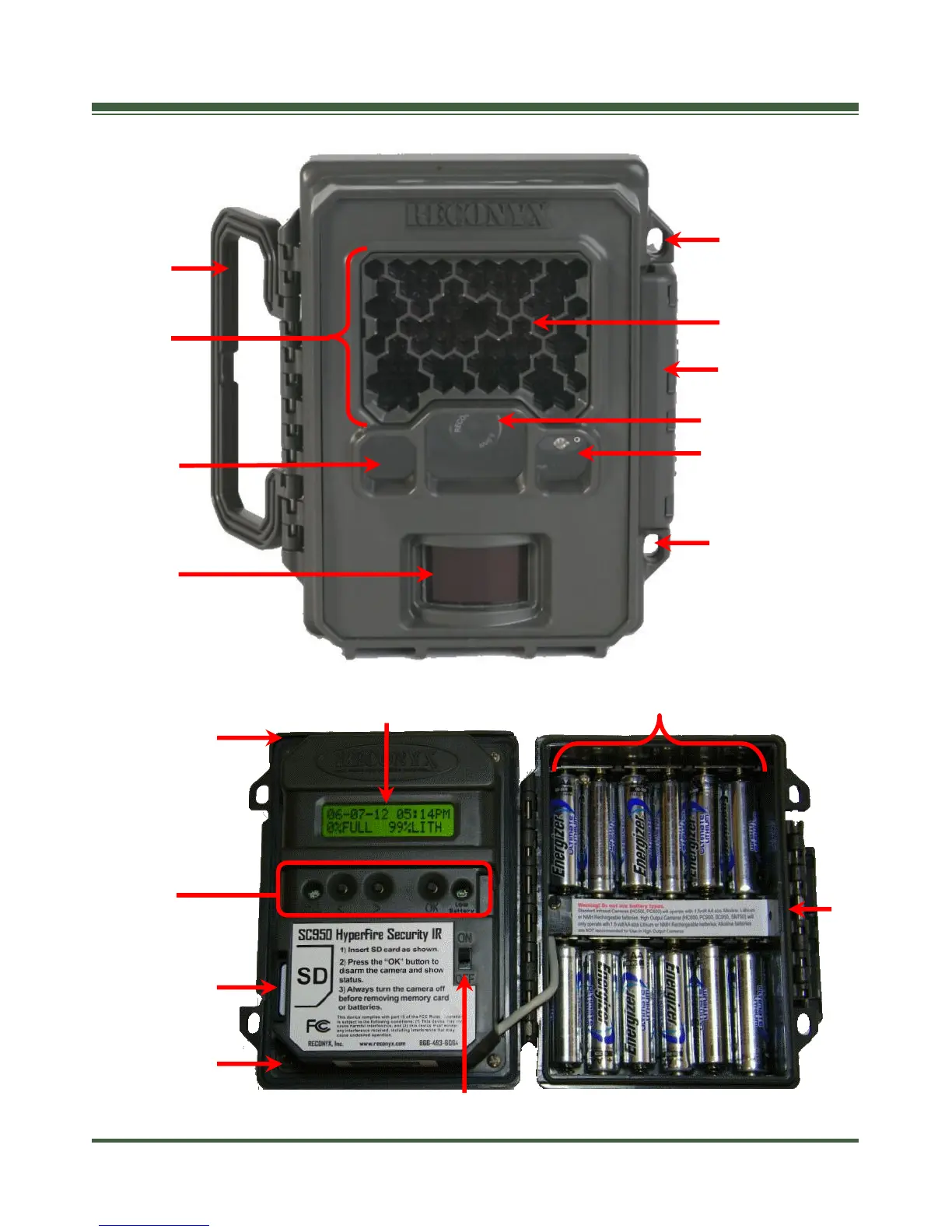

Controls & Parts Diagram
Infrared
Illuminator
Array
Handle
Light
Meter
PIR Motion
Detector
Padlock
Loop
Padlock
Loop
IR Mask
WalkTest Light
Camera Lens
Latch
Backlit LCD
Status/Menu Panel
Battery
Bays
Weatherproof
Gasket
- Card In Use (Status Light)
- Left/Right Menu Buttons
- OK Button
- Low Battery (Status Light)
SD Card Slot
WARRANTY
SEAL
On/Off Power
Switch
Breathable
Vent
