Record Power BDS250 - Assembly of the Optional BDS250-A Stand; Stand Assembly; Fitting the Machine to the Stand

20
CAUTION! The machine is heavy. Additional help or a
suitable lifting device or support will be required for
lifting the machine onto the stand.

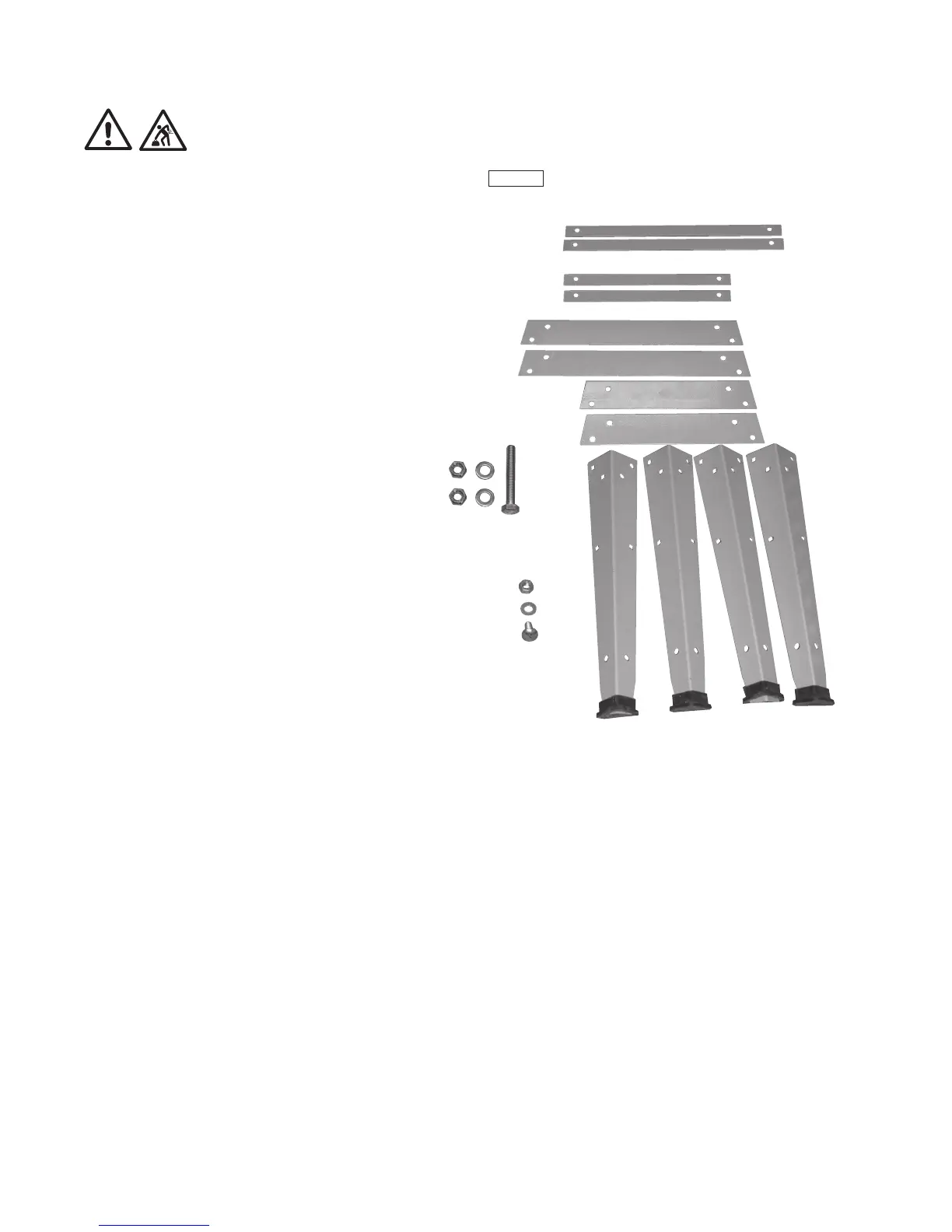

The stand comes as a self assembly unit Fig.16.1.
Stand
1. 2 x Long mid brace supports
2. Short mid brace supports x2
3. 2 x Long top brace supports
4. 2 x Short top brace supports
5. 4 x Legs
6. 24 x Stand fixing nuts bolts and washers (each)
7. Long fixing bolts, 2 washers and 2 nuts x 4
i
Kg
i
Kg
16. Assembly of the Optional BDS250-A Stand.
3
7
6
1
4
5
Fig. 16.1
2
x 24
x 4
