16. Assembly of the Optional BDS250-A Stand.
Note: When assembling this legstand do
not fully tighten the nuts and bolts until
the assembly is complete.
When fitting the optional pedal wheel
kit during initial assembly of the
machine, please do so before attaching
the machine to the leg stand to ensure
greater safety and ease of fitment.
When fitting the optional pedal wheelkit,
the short mid brace support (Fig 16.7) at
the front of the machine should
be removed.

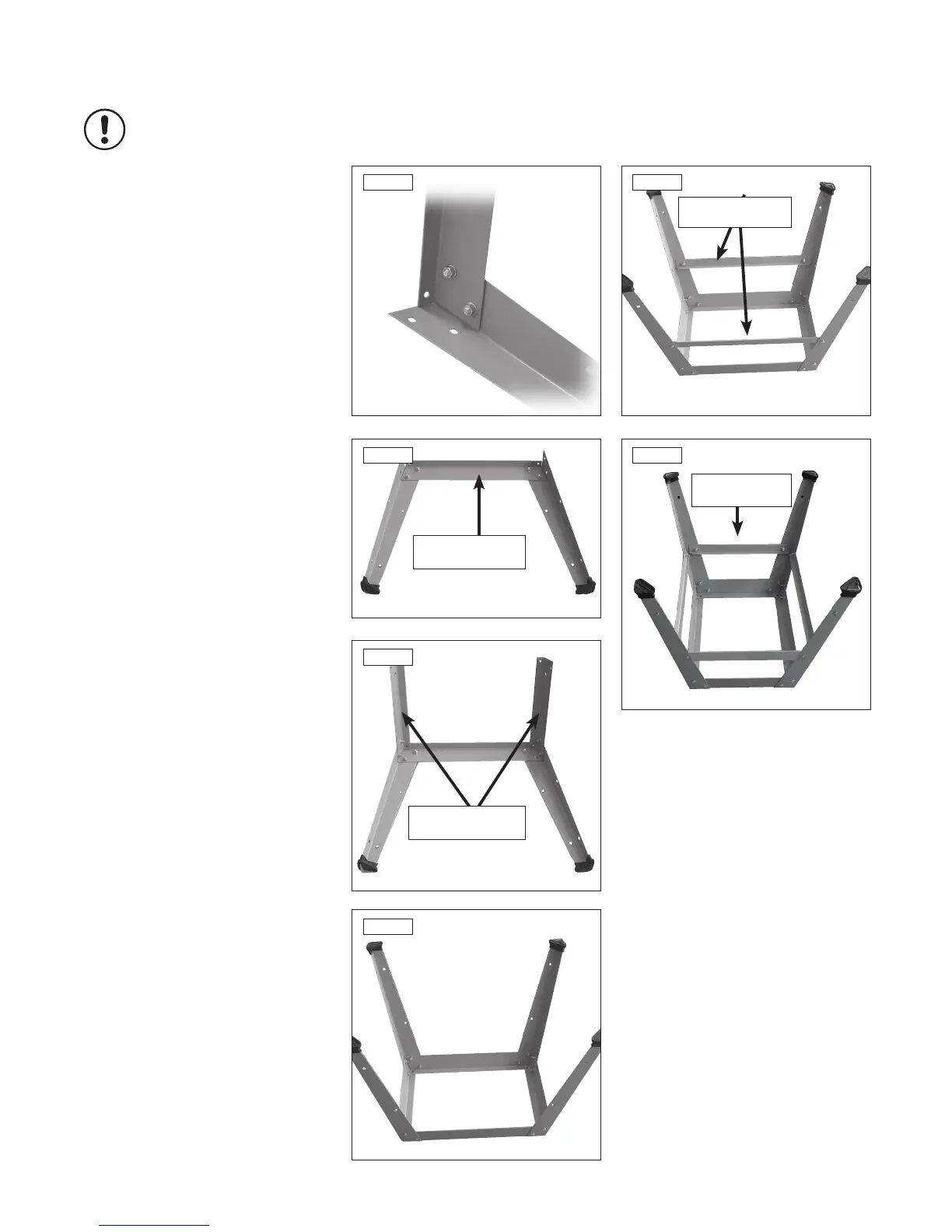

3.2 Stand Assembly
1. Locate the first leg and secure it to one of the
long top brace supports using the nuts, bolts
and washers supplied Fig.16.2.
2. In the same way, attach the second leg to the
brace support Fig.16.3.
3. Locate the short top brace supports and fix to
the legs as shown Fig.16.4.
4. Continue in this way until all of the legs and
top brace supports have been fitted Fig.16.5.
5. The locating holes a third of the way down
each leg are for securing the mid brace supports.
Fix the long mid brace supports to the frame
using the nuts, bolts and washers Fig.16.6.
6. Finally, fit the short and medium mid brace
supports to the shorter sides Fig.16.7 in the
holes located a third of the way down the legs.
