22
16. Assembly of the Optional BDS250-A Stand
3.4 Fitting the machine to the stand
CAUTION! The machine is heavy.
Additional help or a suitable lifting
device or support will be required for
lifting the machine onto the stand.
1. Lift the machine over the stand and place the
long fixing bolts through the four location holes
in the machine base Fig.16.9.
2. Secure the machine to the stand with the
remaining washers and nuts Fig.16.9.

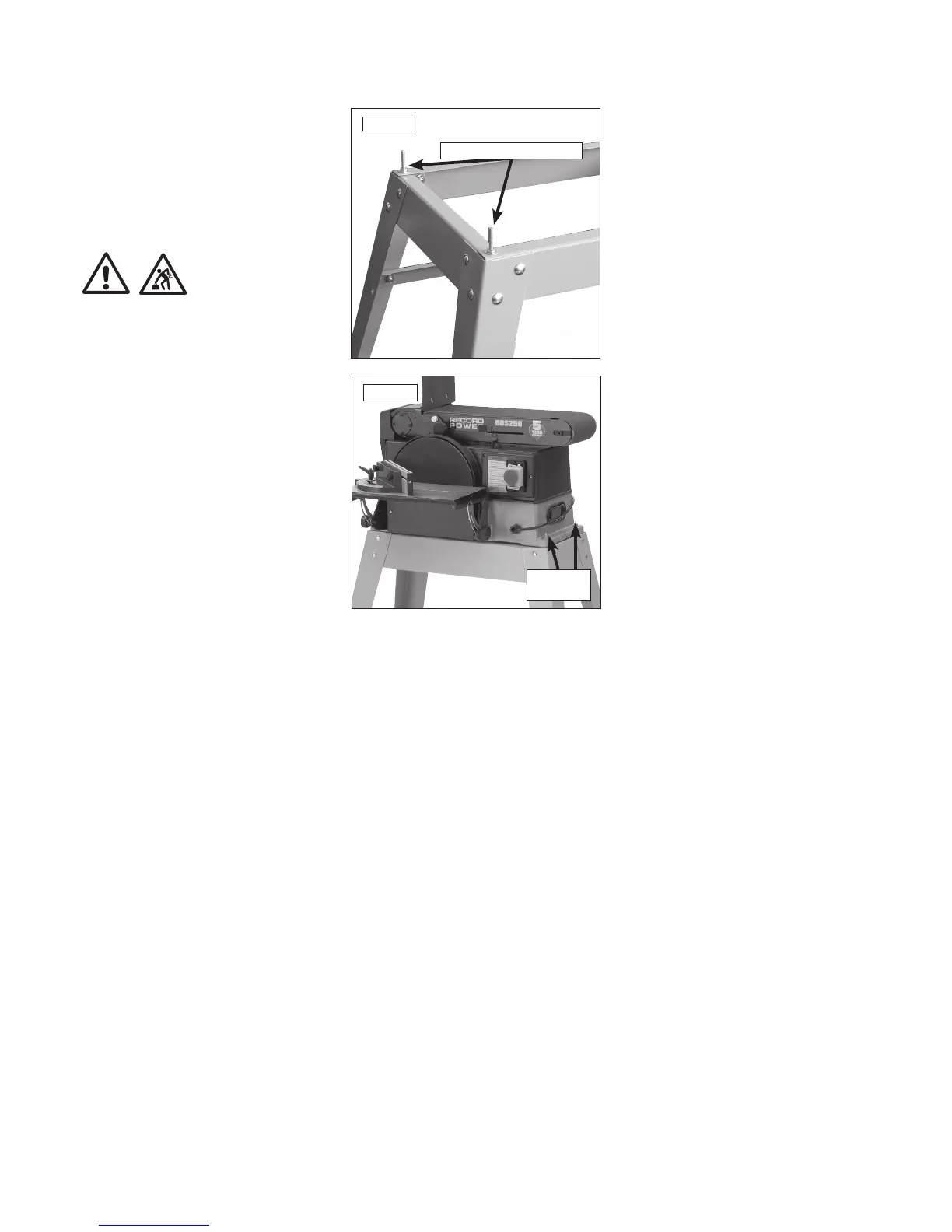

Fig.16.8
LONG FIXING BOLTS
1. Feed the long fixing bolts up through the
stand and secure the four corners using the
washers and bolts provided Fig.16.8. The whole
stand can now be fully tightened ready for the
machine to be fitted.
