When the wheel kit is not in use, the wheels fitted to the main body of the
machine can be raised by unscrewing the adjusting screw, Fig. 9.4, so that
they are clear of the floor. The wheels must be lowered again before using
the wheel kit.

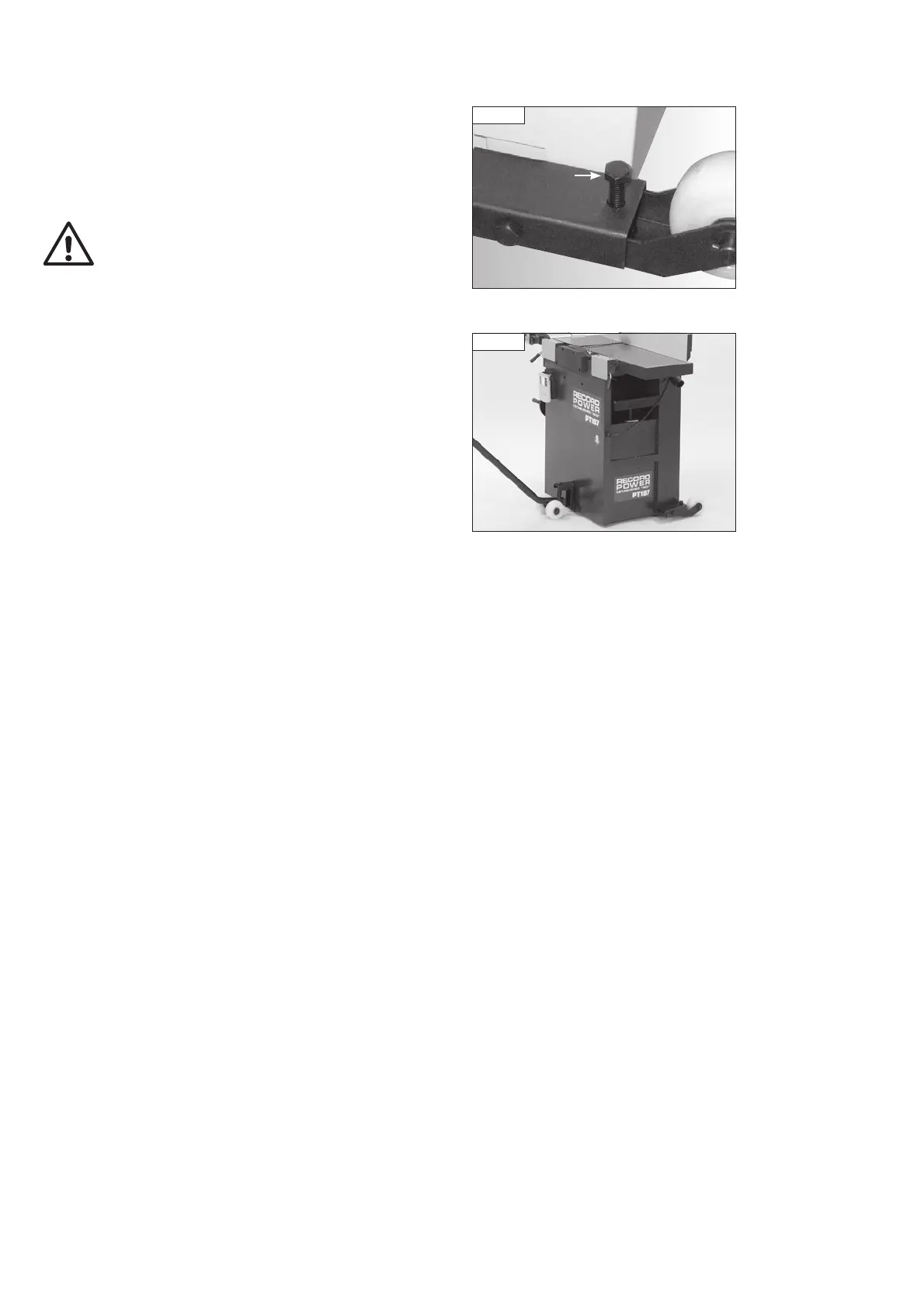

When fully assembled, the wheel kit should be as shown in Fig. 9.5.
Never attempt to move the machine with the wheel kit whilst the planer
tables are in the raised position. The centre of gravity will be high, making
the machine unstable. Always ensure that the tables are in the closed
position before attempting to move the machine.
Adjusting
screw
Fig. 9.4
Fig. 9.5
9. Assembly of the Optional Wheel Kit
