15

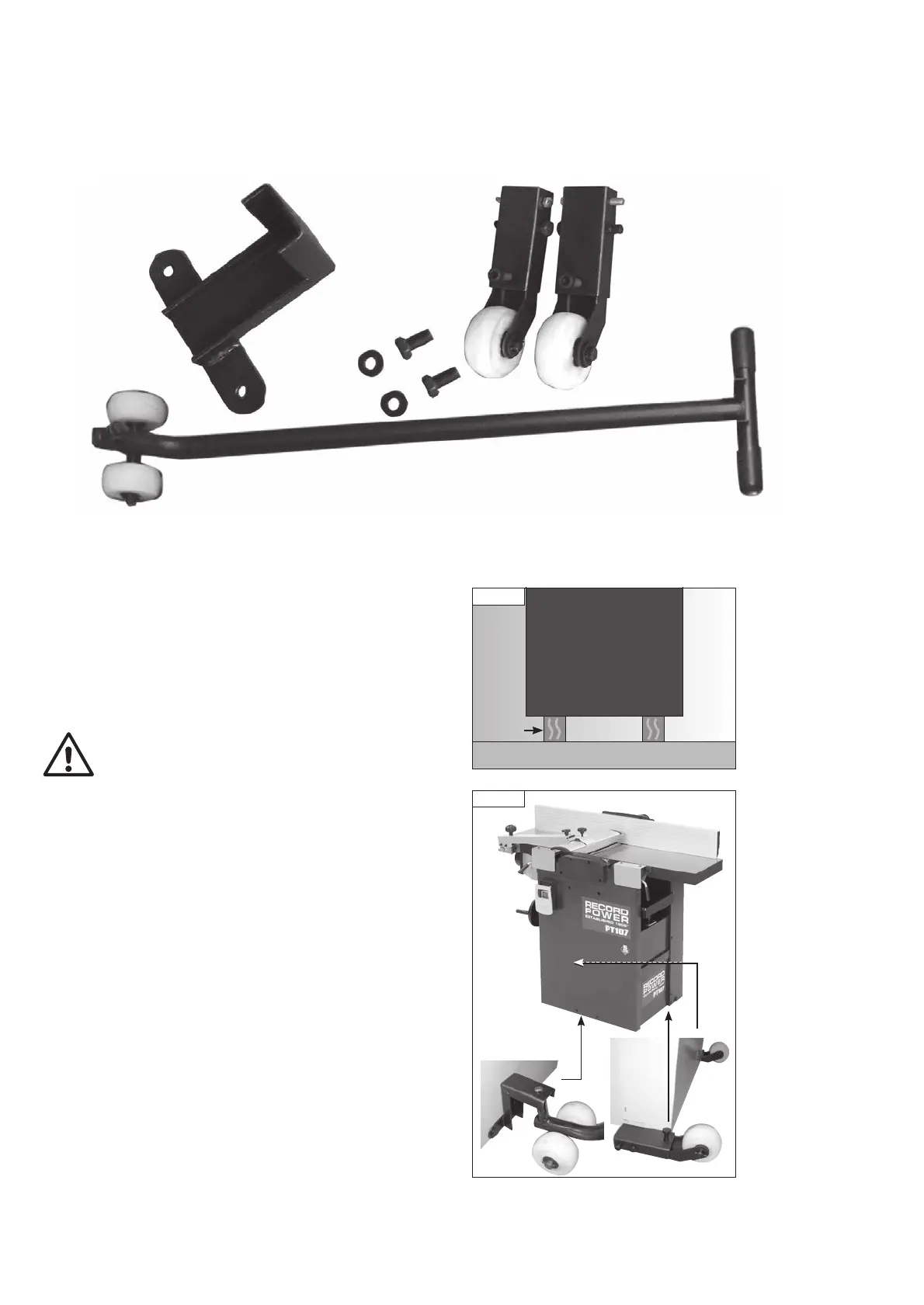

9. Assembly of the Optional Wheel Kit
Fig. 9.1
1
2
3
4
Contents of the Package
See Fig. 9.1.
1 Lifting bracket
2 Wheel assemblies, hex head nuts and bolts x 2
3 Hex head nuts and bolts x 2
4 Jockey bar and wheels
Access to the underneath of the machine is required to fit the nuts to the
bolts which hold the wheel kit components to the machine. To do this safely,
mount the machine securely on blocks of wood which are tall enough to
allow access, Fig. 9.2.
DO NOT attempt to gain access to the underneath of the
machine by tipping it as this introduces the risk of it becoming
unstable and falling over.
The wheel assemblies are supplied with hex head nuts and bolts
pre-assembled. To attach them to the machine, remove the nuts and pass the
bolts through the assemblies and the pre-drilled holes in the machine body
and secure with the nuts, as shown in Fig. 9.3. Ensure the assemblies are
installed with the wheels pointing upwards as in Fig. 9.3.
Using the remaining two nuts and bolts, attach the lifting bracket to the
front of the machine as shown in Fig. 9.3.
Fig. 9.3
Fig. 9.2
PT107
Planer
Thicknesser
Blocks
Floor
