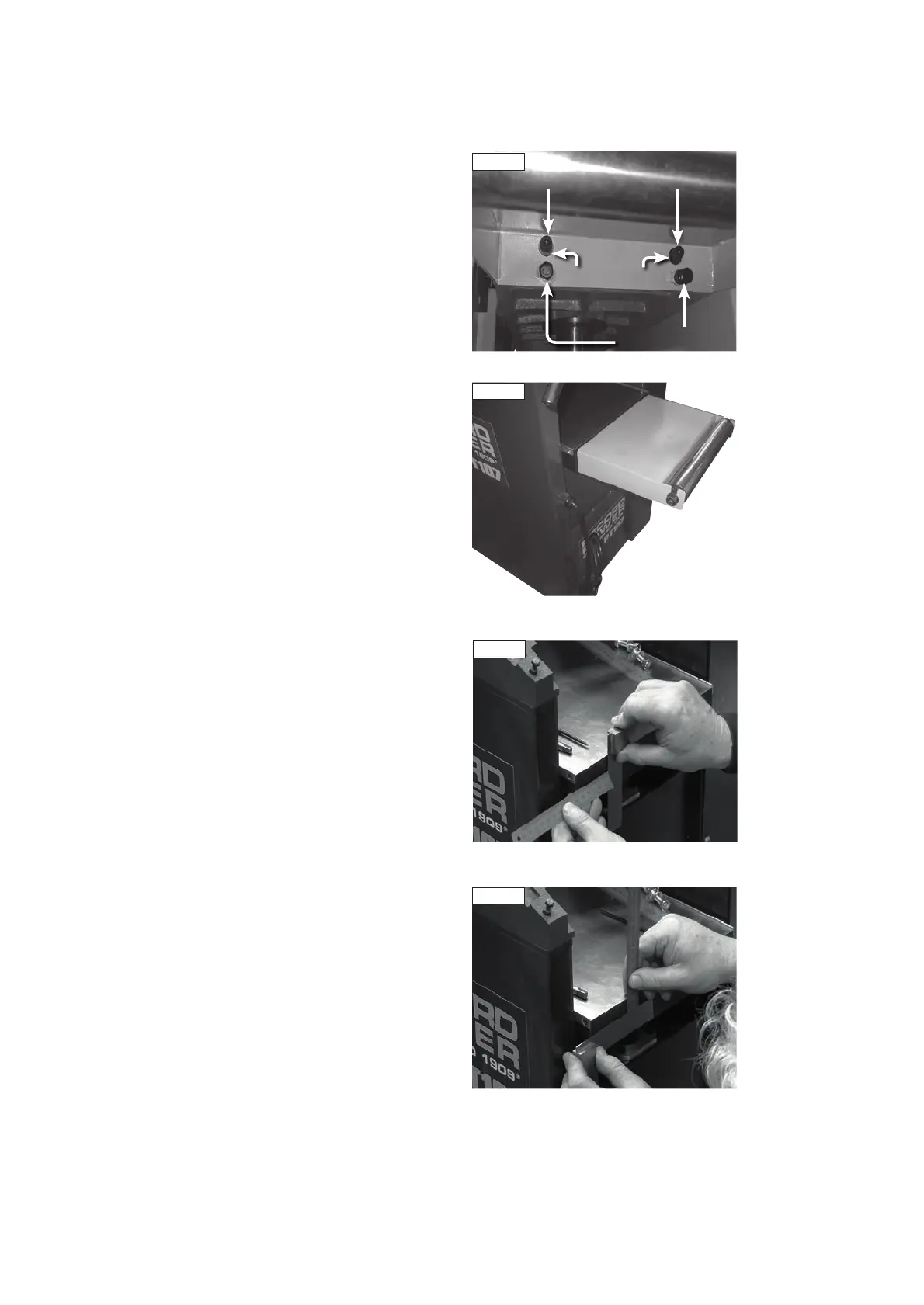

10. Assembly of the Optional 49000 Thicknessing Table
Extension
Fitting the Thicknessing Table Extension to Pre-drilled Machines
Firstly, fix the thicknessing extension table onto the edge of main
thicknessing table of the PT107, using the 2 M8 hex bolts, 2 M8 hex head
socket screws and 2 flat washers supplied, as shown in Fig 10.1, do not
fully tighten. Then, adjust the two M8 hex bolts mounted on the underside of
the thicknessing extension table, to ensure that the two surfaces are flush,
Fig 10.2. Then, fully tighten the 2 M8 hex bolts.
Note: Follow instructions below for machines with pre-drilled holes for
table extension fitment. For machines without pre-drilling, please see
instructions for Drilling the Thicknessing Table to fit the Table
Extension to Machines Without Pre-drilled Holes.
M8 hex bolt
M8 hex head socket screw
Flat washer
Fig 10.1
Fig 10.2
Drilling the Thicknessing Table to fit the Table Extension to
Machines Without Pre-drilled Holes
Note: Step-by-step video illustrating how to drill the machine thicknessing
table available at YouTube.com/RecordPowerTV.
Measure 54 mm inwards from the left-hand side of the machine
thicknessing table and mark a line, Fig 10.3.
Measure 16 mm down from the top of the table and mark a second line
across the marking previously made, Fig 10.4.
Fig 10.3
Fig 10.4
