18

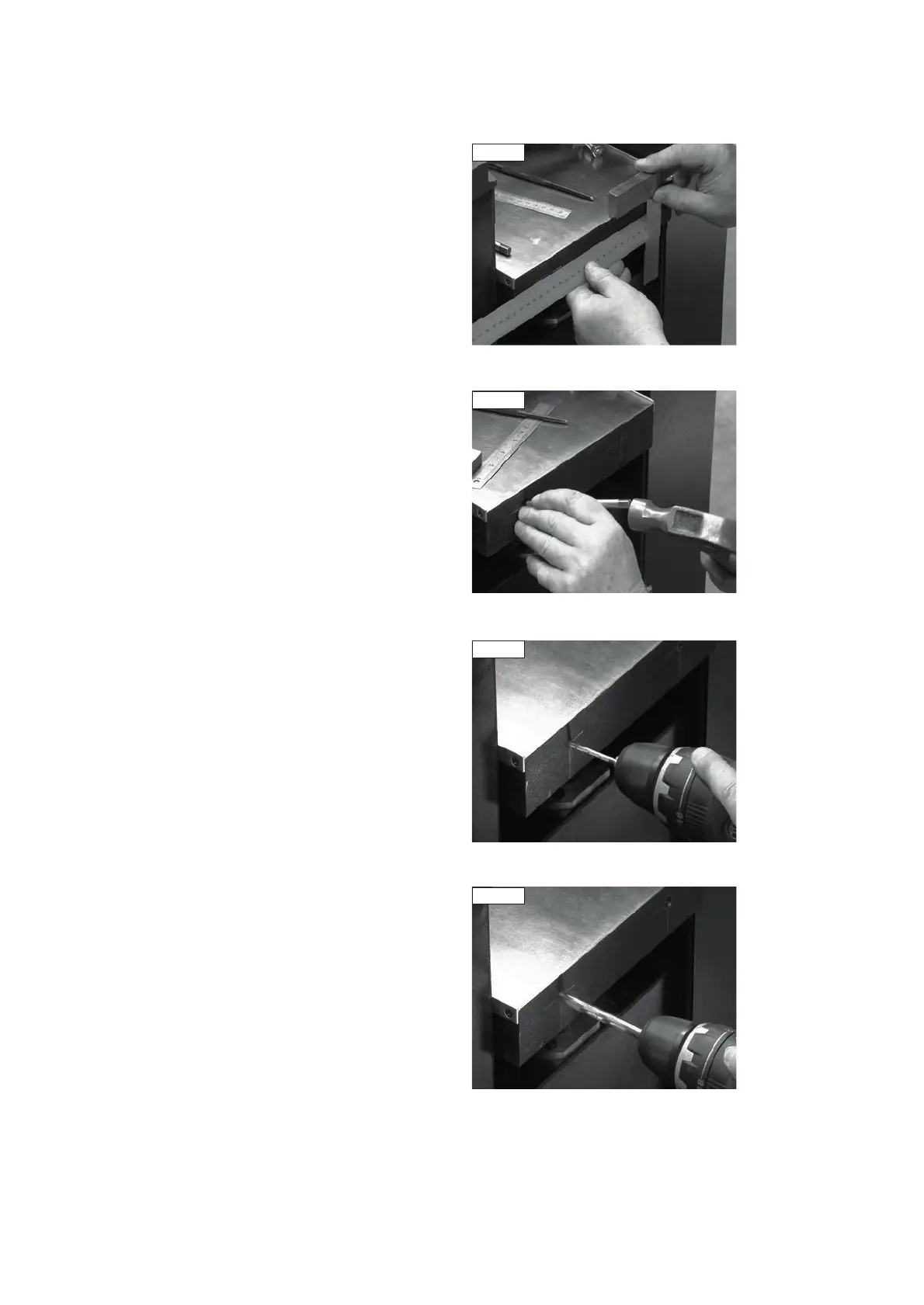

From the centre point of the two markings previously made, measure 150
mm into the table and mark a third line, Fig 10.5.
As done previously, measure 16 mm down from the top of the table along
the line previously made and mark a fourth line, Fig 10.4.
Create an indentation in both centre points of the four markings using a
centre punch and hammer, Fig 10.6.
Drill through both centre points using either a 3.5 mm or 4.5 mm drill bit,
then, drill through both holes using an 8.5 mm drill bit, Fig 10.7 and Fig
10.8.
10. Assembly of the Optional 49000 Thicknessing Table
Extension
Fig 10.7
Fig 10.5
Fig 10.6
Fig 10.8
