10. Assembly of the Optional 49000 Thicknessing Table
Extension
Thread the
M8 hex head socket screw along with
the first M8 washer
through the drilled hole as shown. On the opposing side of the table, add
the second M8 washer, followed by the M8 nut and repeat this process, Fig
10.9.
Place a straight edge over the joint from the machine table to the extension
table on both sides, to check they are flush together, Fig 10.10.
Should adjustment be required, gently knock the extension table into
position using a soft mallet. Fine adjustment can also be made by loosening
the M8 hex bolts pre-fitted into the extension table, Fig 10.11.

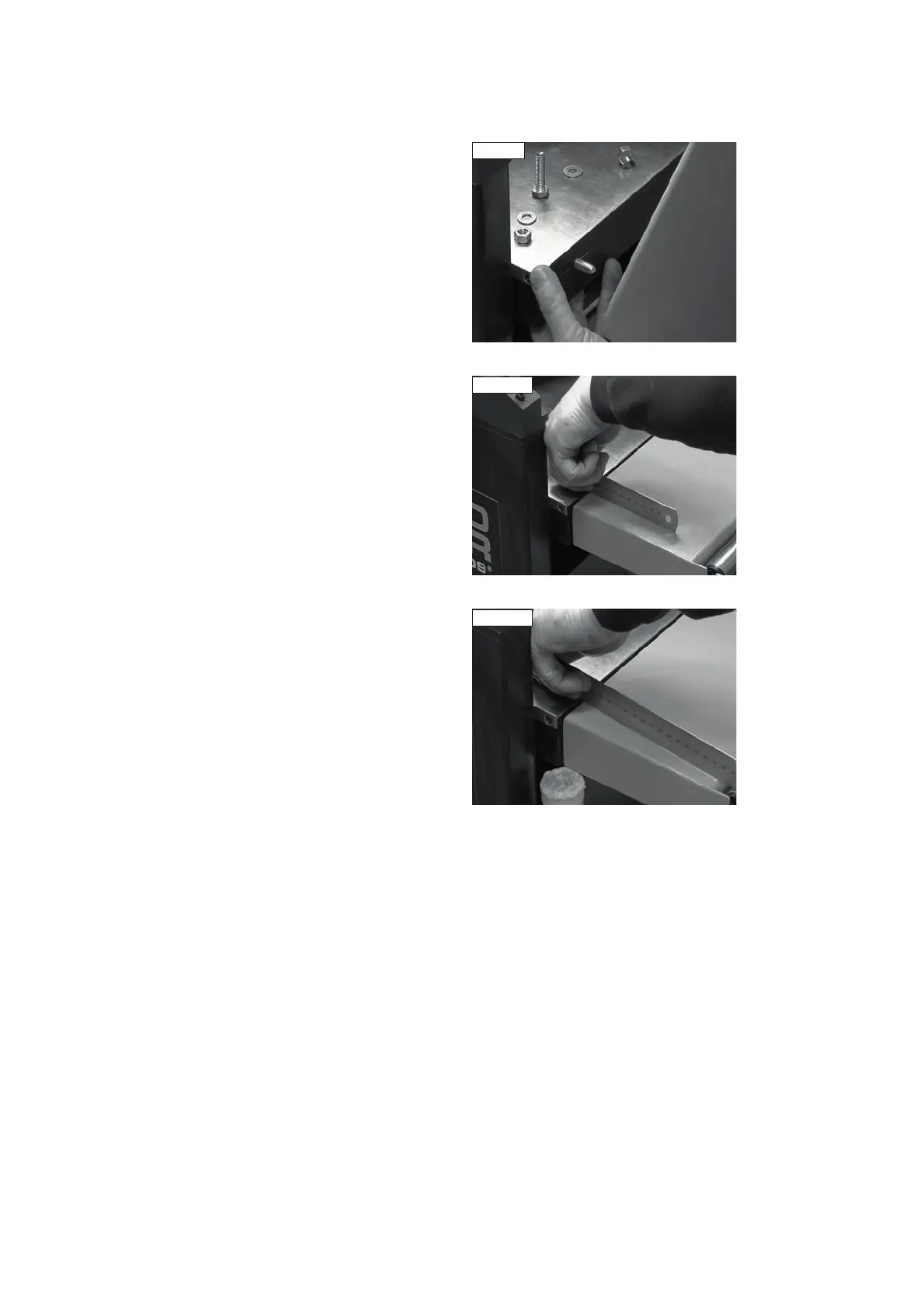

Fig 10.9
Fig 10.10
Fig 10.11
