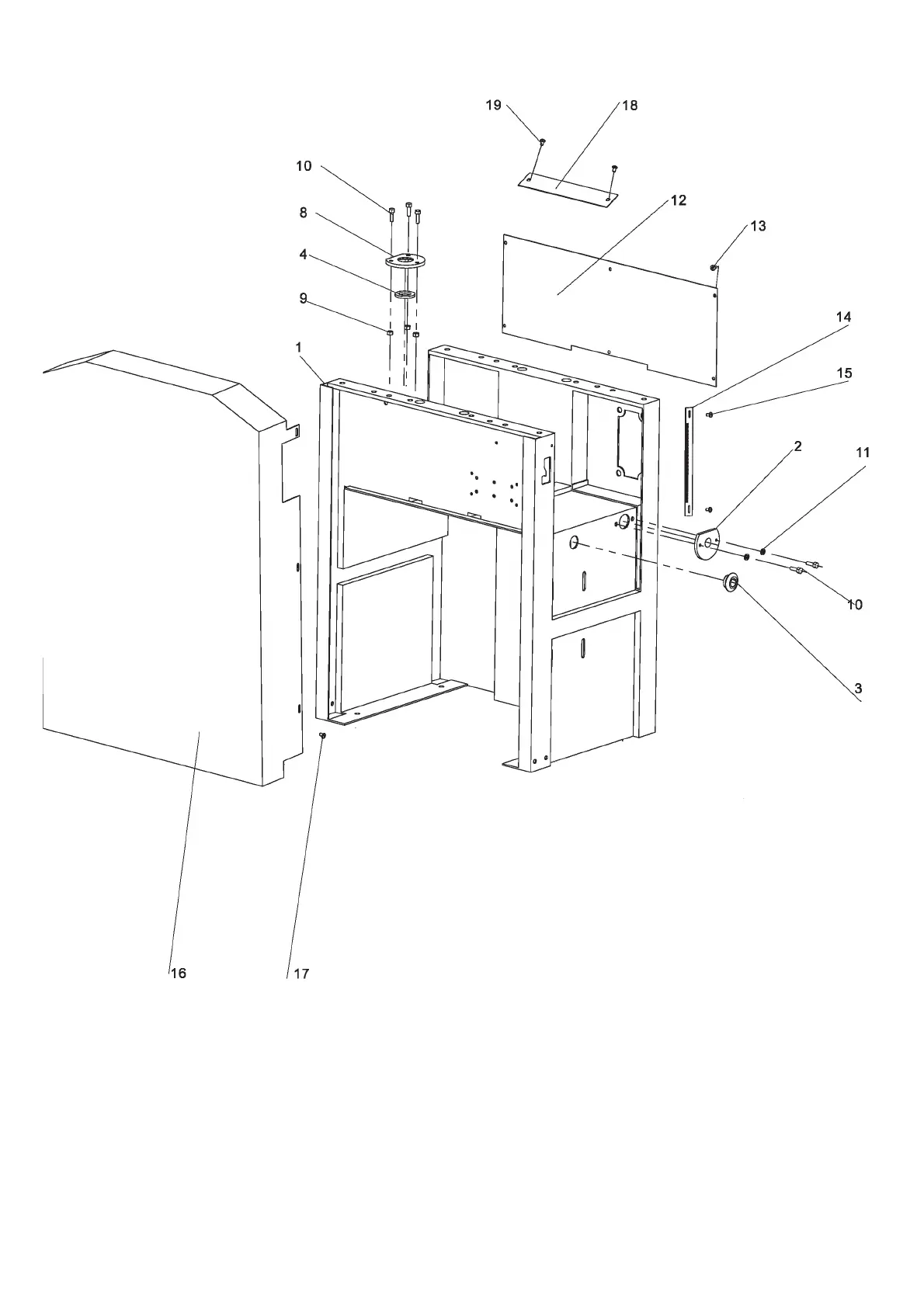

16. Parts Lists & Diagrams
NO. DESCRIPTION QUANTITY
1 Main frame 1
2 Shaft seat, thicknessing table 1
3 Seat, lock lever 1
4 Oil seal 1
8 Seat, bearing 1
9 Hex lock nut 3
10 Hex screw M6 x 16 mm 5
11 Washer 6 mm 2
NO. DESCRIPTION QUANTITY
12 Inner shield 1
13 Cross sunk head screw M5 x 6 mm 5
14 Scale, thicknessing height 1
15 Pan head screw M5 x 6 mm 5
16 Gear cover 1
17 Pan head screw M5 x 6 mm 6
18 Cover plate 2
19 Pan head screw M5 x 8 mm 4
