Record Power PT107 - Page 21

21

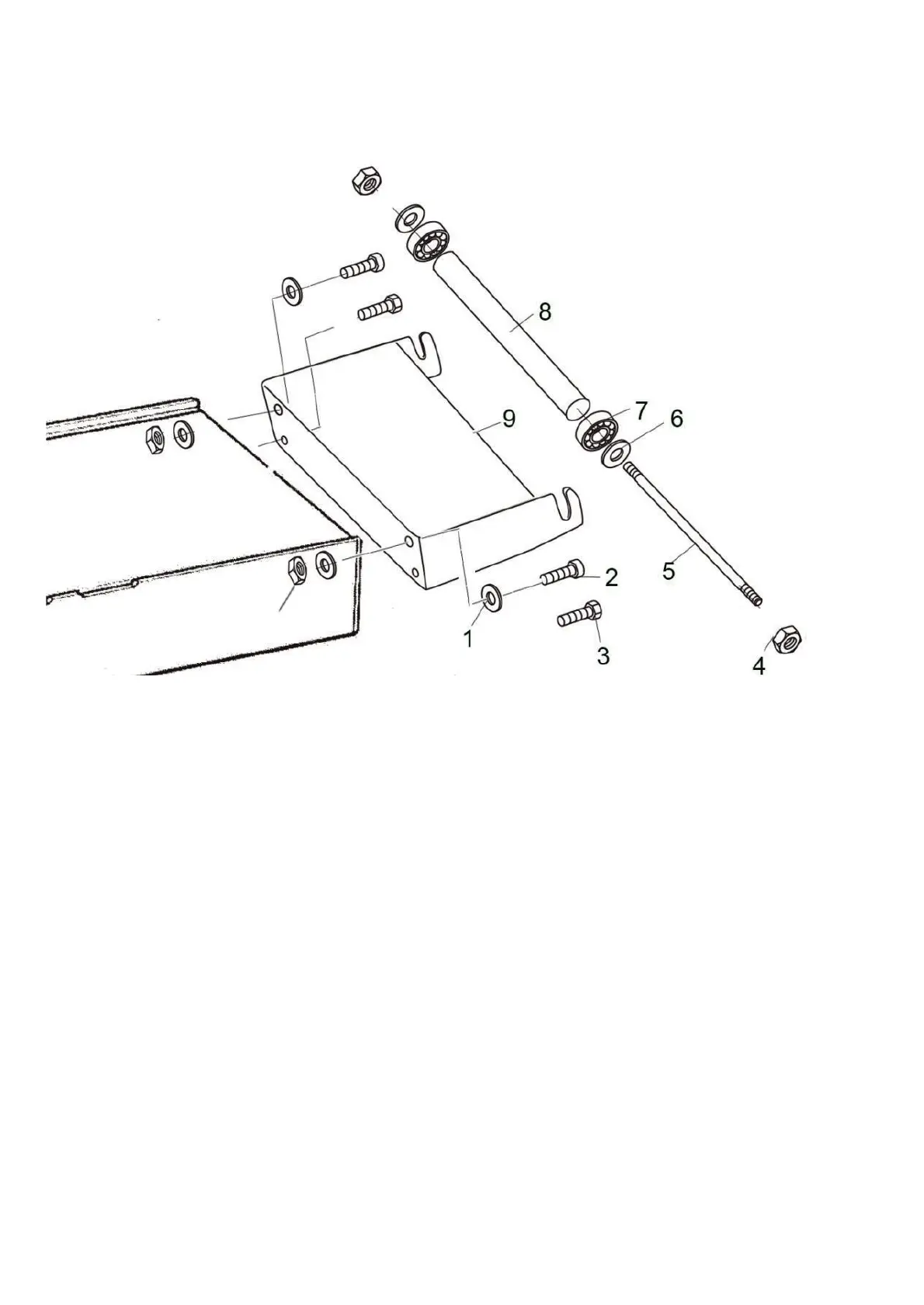

10. Assembly of the Optional 49000 Thicknessing Table
Extension
1 Flat washer 4
2 M8 hex head socket screws 2
3 M8 hex bolt 2
4 M10 hex nut 2
5 Shaft 1
6 Flat washer (large) 2
7 Bearing 6001 2
8 Table extension roller 1
9 Table extension 1
10 M8 hex nut 2
No. Description Quantity
10
Parts List
