Record DFA 127 - Construction and Function; Construction; Functions

Guide to Blue Button – Multiple Use (MF)
No of Flashes
Level
1
Single Impulse – Opens Door
2
Tests the battery unit on STA16 & initialises the PHC for the first learn
3
Learns door parameters (Calibration Run)
4
Programming mode
5
tests the battery on STA 20
6
Spring Calibration run on the DFA 127 – Before connecting Arm
7
Not used
8
Factory standards reset
9
Full Reset -9 flash and then pull the emergency stop OUT then IN
14
Soft reset the same as the Record Logo

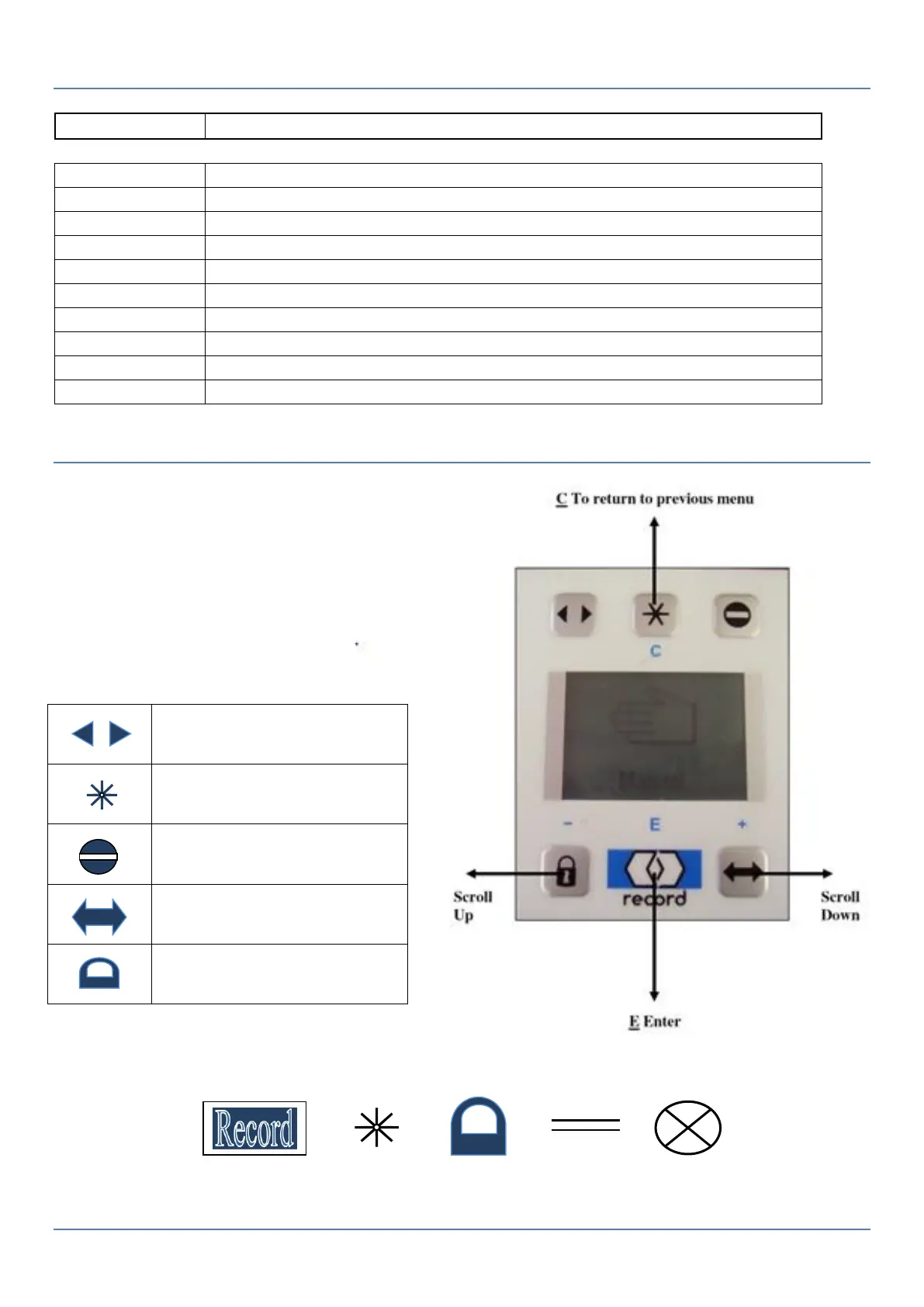

BDE – Control Switch
To both Lock and Unlock the Keypad operation:
Hold Open
Manual Operation
No Entry
2-Way Automatic
Locked / Closed
With this symbol
showing it represents
the key lock is ON
