recteq RT-1250 - Install Bottom Shelf and Right Leg Support; Prepare for Side Shelf and Pull Bar

9

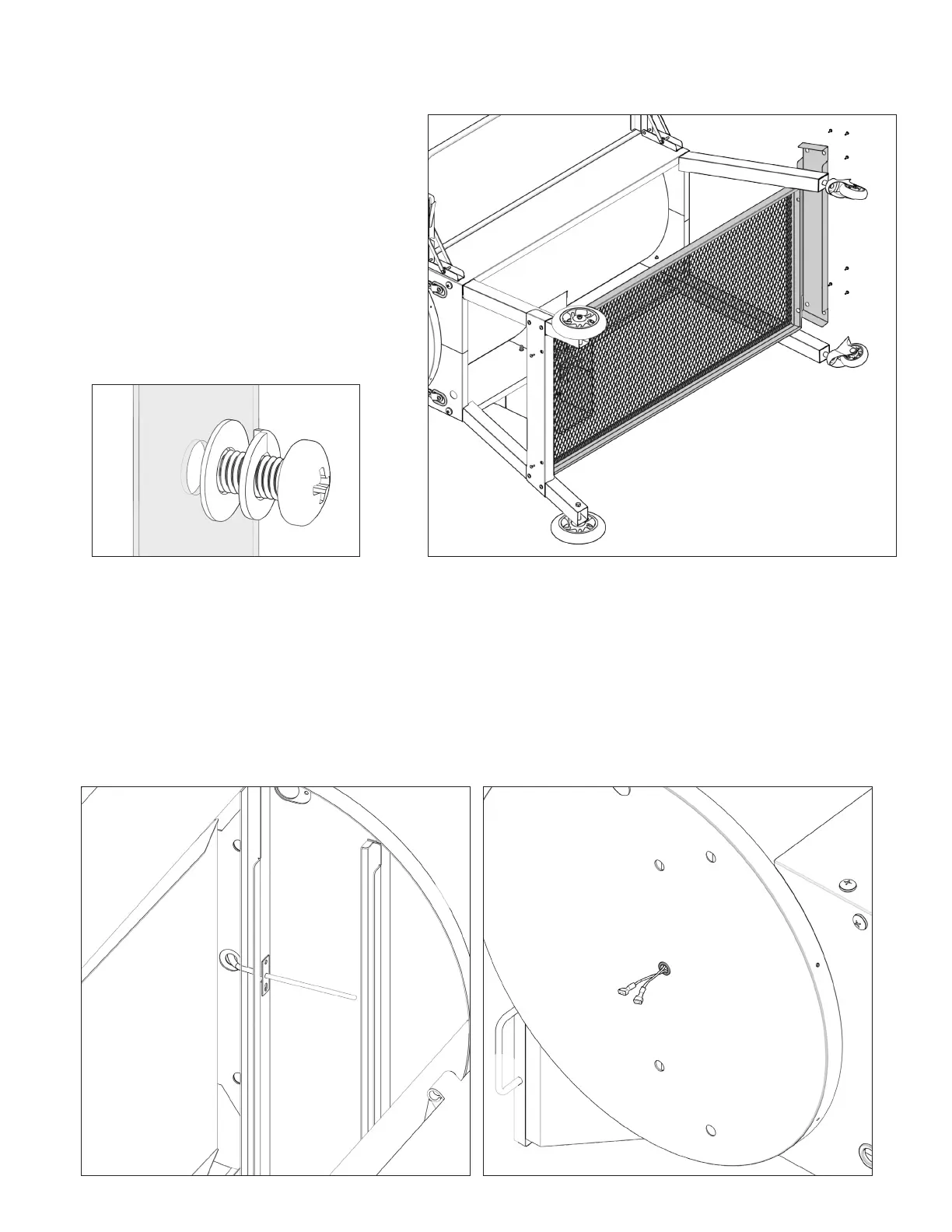

Install Bottom Shelf and Right Leg Support Bracket
Insert bottom shelf (4) and secure it into
place with the right leg support bracket.
1. For right leg support bracket (14), hand
tighten with bolt assembly order.
2. For bottom shelf (4), hand tighten with
bolt assembly order.
Note: Go back and tighten everything once
the brackets are in place.
Step 5
1
1
2
2
2
2
Remove and discard hex shipping bolts on left and right sides of grill body (1).
Hex bolts were used to ensure interior welds were supported during shipping.
Carefully open the lid on your grill and locate the RTD wires secured to the temperature sensor.
Feed the RTD wires through the grill body.
Step 6
Prepare for Side Shelf and Pull Bar Assembly
Top of Grill
Top of Grill
