2-INSTALLATION INSTRUCT
POSITIONING AND RESTRICTIONS
In the case of simultaneous installation with other heating appliances, provide appropriate air inlets for each one (according to the
instructions of each product).
The product cannot be installed (except for sealed or closed operation appliances with external ducted combustion
air intake):
• in bedrooms or bathrooms;
• in rooms where there are liquid fuel appliances with continuous or intermittent operation that draw the
combustion air from the room they are installed in;
• in rooms where there are B-type gas heating appliances, with or without domestic hot water production and
interconnecting rooms;
• where another heating appliance is installed without an independent air ow.
It is forbidden to place the product in an explosive atmosphere.
BOILER ROOM
Check that the room meets the requirements and characteristics in compliance with the standards in force. The room must also have
suitable ventilation required for proper combustion. One must therefore make openings in the room walls that meet the following
requirements:
• They must have a section of at least 6 cm
2
per each 1 kW (859.64 kcal/h). The minimum opening section must in any case not be
below 100 cm
2
. The section may also be calculated using the following relation:
S = K * Q ≥ 100 cm
2
Where “S” is expressed in cm
2
, “Q” in kW, “K” = 6 cm
2
/kW
• The opening must be positioned in the lower part of an outer wall, preferably opposite to that in which the smoke evacuation duct
is located.

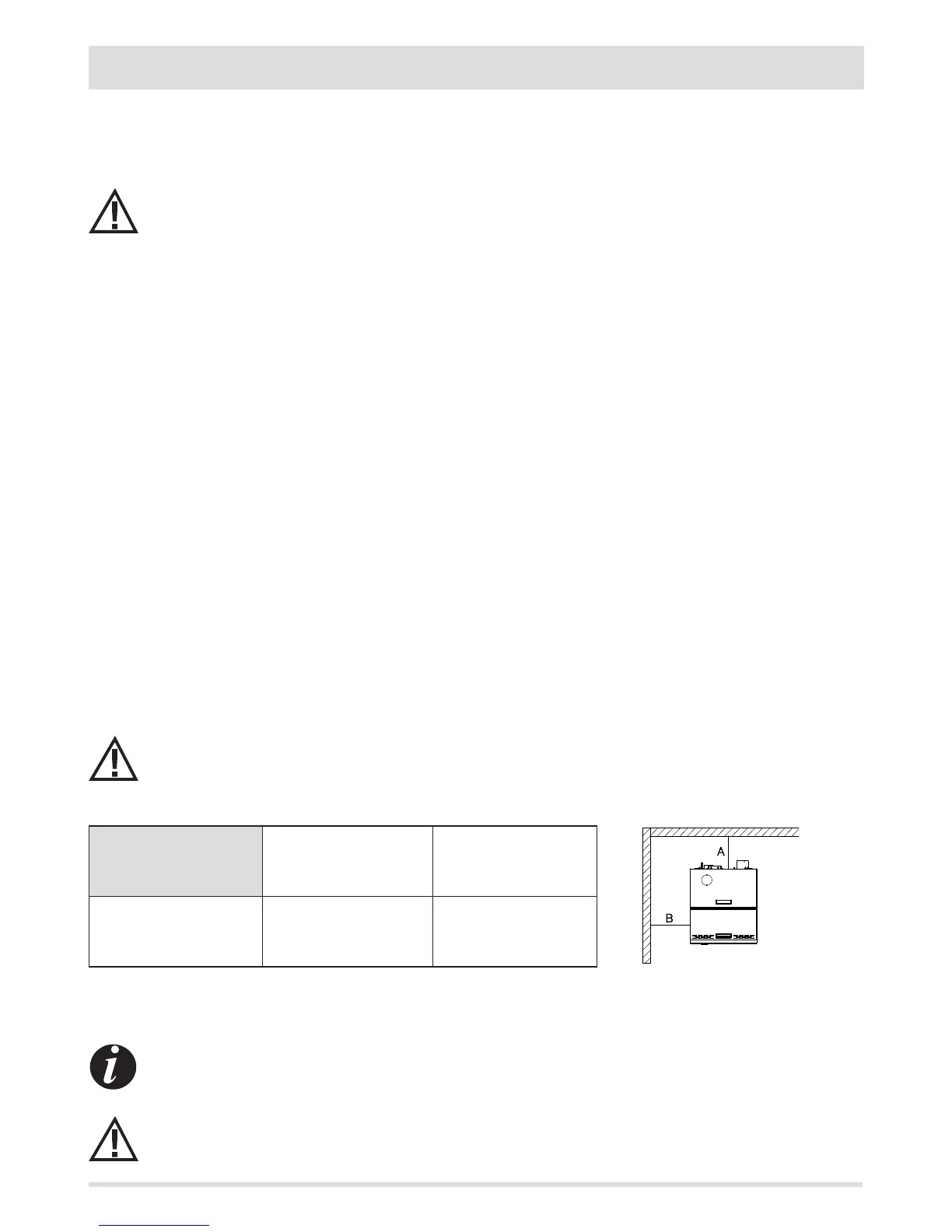

MINIMUM DISTANCES
Room ventilation can only be set towards the rear wall if there is adequate insulated ducting of the hot air ow.
COMPACT 18-24 Non-ammable walls Flammable walls
Hydro
A = 2 cm
B = 15 cm
A = 2 cm
B = 20 cm
If particularly delicate objects are present, such as furniture, curtains or sofas the distance of the product must be signicantly increased.
If the oor is made of wood, it is recommended to place a oor protection in accordance with the Standards in force
in the country of installation.
Heat-sensitive or ammable objects cannot be placed near the product. Keep such objects at a minimum distance of
80 cm from the outermost point of the product.
