9 - PRELIMINARY NOTIONS
SYSTEM CONFIGURATIONS
Upon installation, the product must be set according to the type of system, selecting the appropriate parameter in the “SETTINGS” menu.
The possible congurations are 5, as described below:
Conguration Description
1 Room temperature management via the boiler probe or by enabling the external room thermostat.
2 2.1 Room temperature management via the boiler probe or by enabling the external room thermostat;
instantaneous hot domestic water production with plate heat exchanger (FACTORY CONFIGURATION).
2.2 Room temperature management via the boiler probe or by enabling the external room thermostat;
instantaneous hot domestic water production for boiler or storage tank with thermostat (optional).
3 Room temperature management via boiler probe or enabling the external room thermostat; boiler hot domestic
water production with ntc probe (10 kΩ ß3435).
4 External Puer management controlled by thermostat.
5 External Puer management controlled by ntc probe (10 kΩ ß3435).

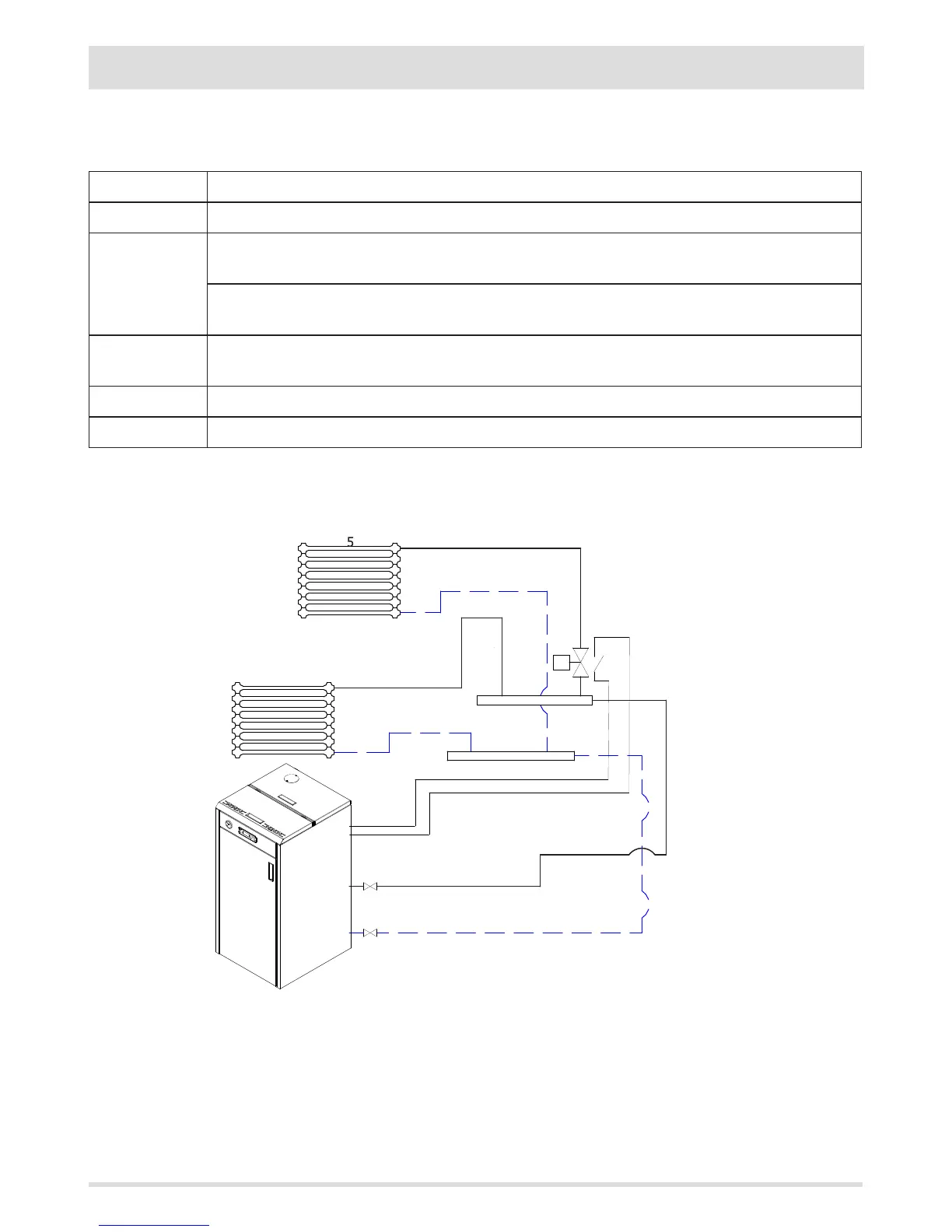

CONFIGURATION 1
