Timelapse Initiates Timelapse Record Mode
Zebra 1 Toggles Zebra 1 On / Off
Zebra 2 Toggles Zebra 2 On / Off
+ Volume 1 Increases volume of Channel 1 (when in microphone mode)
- Volume 1 Decreases volume of Channel 1 (when in microphone mode)
+ Volume 2 Increases volume of Channel 1 (when in microphone mode)
- Volume 2 Decreases volume of Channel 1 (when in microphone mode)
+ ISO Increases camera Sensitivity
- ISO Decreases camera Sensitivity
+ Shutter Increases camera Shutter Speed
- Shutter Decreases camera Shutter Speed

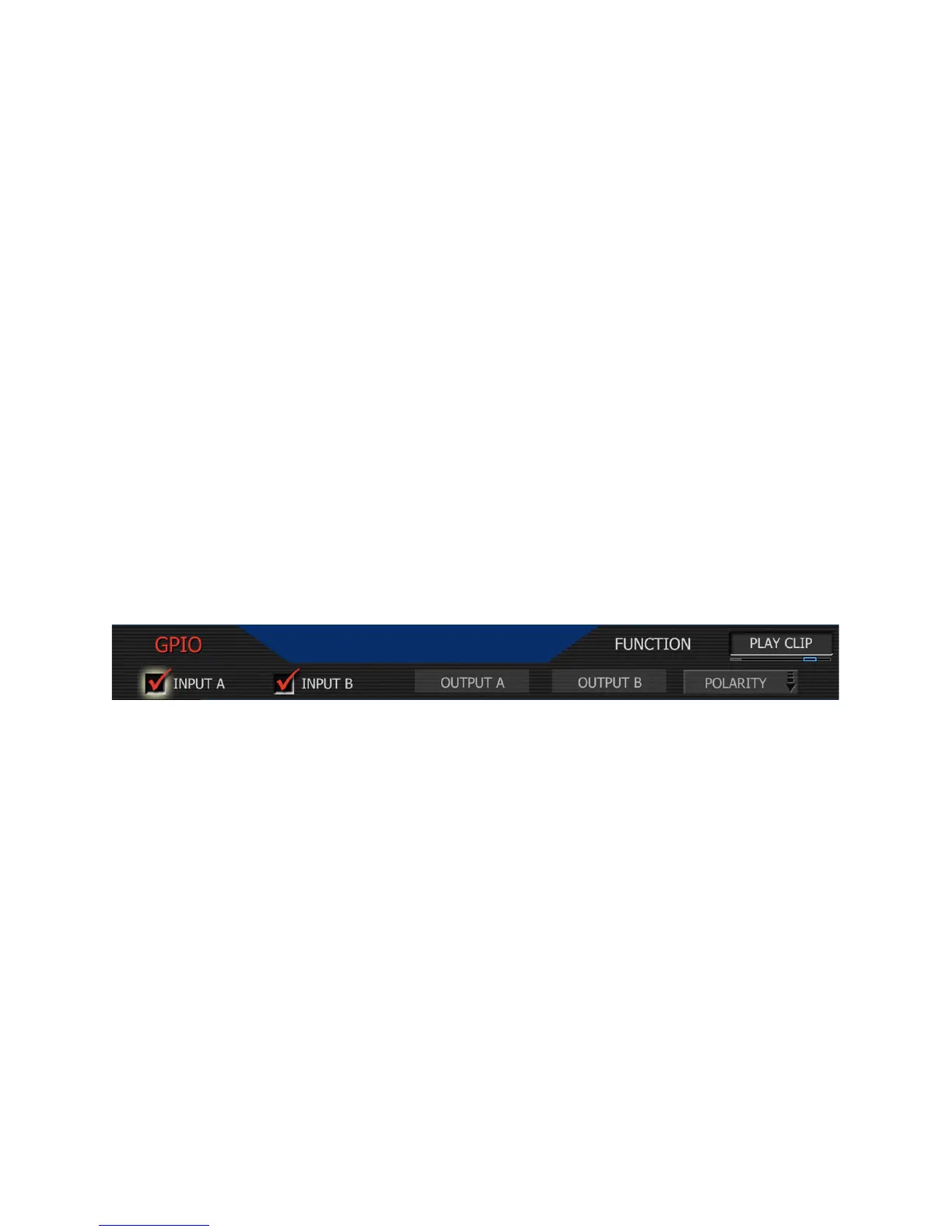

GPIO selects the GPIO Preferences sub-menu.
This menu permits the function of GPI A and B defined as either -
Record: starts standard mode (video and audio) record. Subsequent trigger stops record.
Pre-Record: activates Pre-record. Subsequent triggers start / stop record.
Timelapse: activates Timelapse. Subsequent trigger activates one-shot or burst recording.
Ramp: initiates variable frame rate ramp speed change.
Shut Down: initiates a controlled camera power down
Play Clip: causes the selected Clip to play back at normal speed
Next Clip: cues the selected clip to end. If at end, cues to beginning of next clip.
For GPI A the factory default is Record and for GPI B factory default is Timelapse.
