2 INSTALLATION GUIDE

2.1 System Layout

Vehicle

Battery

(Not Supplied)

House Battery

(Not Supplied)

BMS1230

Solar Panels

(Not Supplied)

Remote

Monitor

To Loads

(Not Supplied)

Battery

Sensor

110 VAC

Mains/Shore Power

DC - DC

Power Source

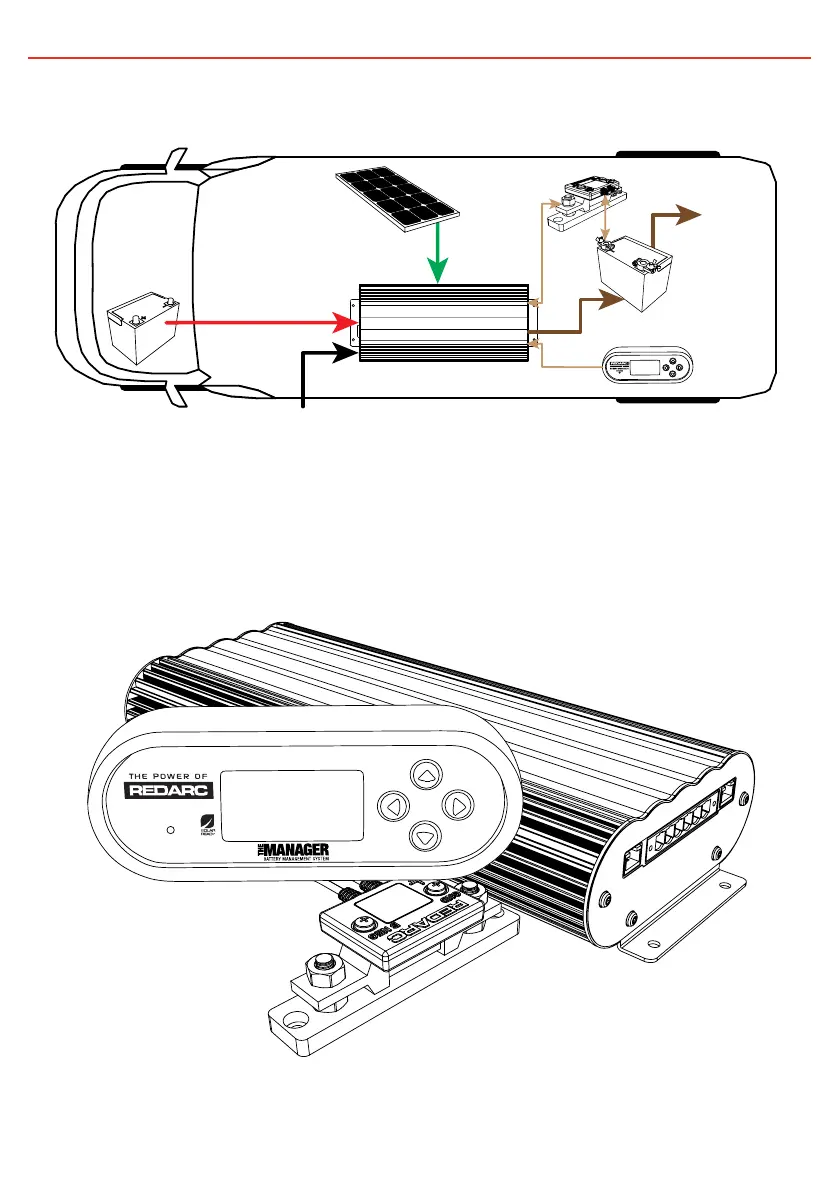

FIGURE 2.1.1: System Layout

2.2 Mounting Instructions

This section describes how to mount the three major components of The Manager30: the Main Unit, the

Remote Monitor and the Battery Sensor.

FIGURE 2.2.1: The Manager30 System
