Redarc MANAGER 30 - Input Wire Diameter Selection; Output Wire Diameter Selection

2 INSTALLATION GUIDE
Input Wire Diameter Selection
REDARC recommends the installer use cabling and connections between 8B&S and 6B&S
automotive. REDARC recommends that the input wire be of the size outlined in Table
2.3.1.1.
Distance from input vehicle
battery to The Manager30
Recommended Cross
Sectional Area (mm²)
Recommended
Diameter Equivalent
≤3m 8 8 B&S
>3m 10 6 B&S
Output Wire Diameter Selection
REDARC recommends the installer use cabling and connections between 8B&S and 6B&S
automotive. REDARC recommends that the output wire be of the size outlined in Table
2.3.2.1. For longer runs, using 10mm² is recommended, however this will lower efficiency
by up to 3% (the recommended maximum length is 5m).
Distance (metres) from The
Manager30 to House battery
Recommended Cross
Sectional Area (mm²)
Recommended
Diameter Equivalent
≤1.5m 8 8 B&S
>1.5m 10 6 B&S
Figure 2.3.2.1 - Recommended output cable size
17
Figure 2.3.1.1 - Recommended input cable size

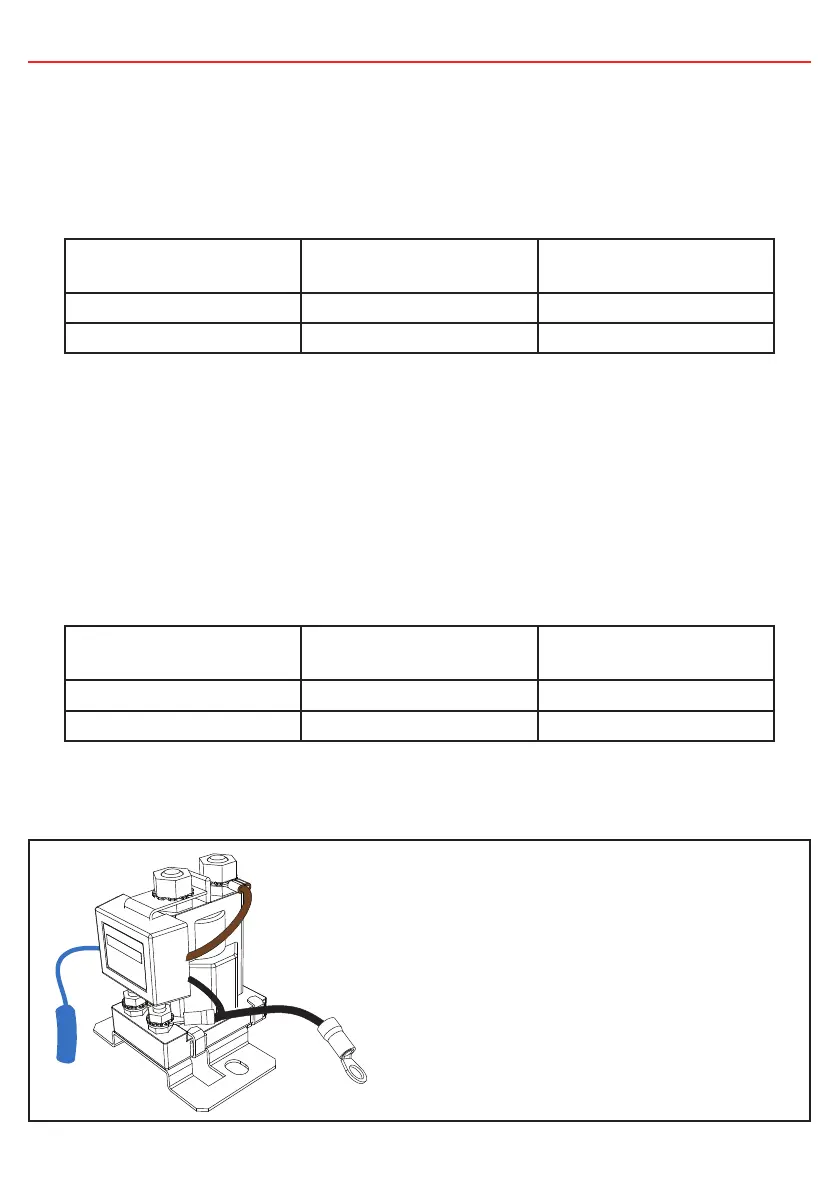

REDARC recommend using the SBI12-BLD
as the 12V relay for setting up the Load
Disconnect Feature for Non-Essential Loads.
Similarly, the SBI12-LLD is recommended
for use between the Auxiliary battery and the
Essential Loads in a Lithium Battery setup,
to protect the Lithium battery from excessive
discharge.
