Redarc MANAGER 30 User Manual

3 USER GUIDE

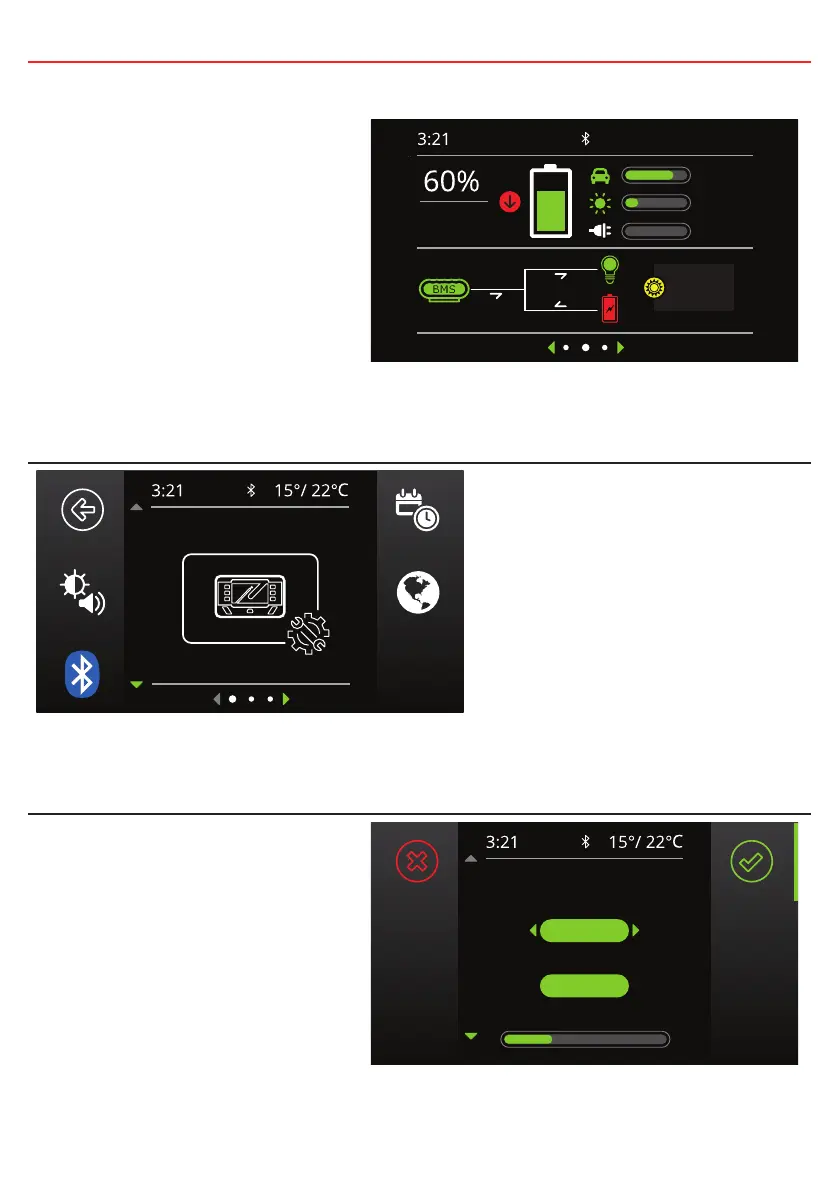

3.2 Basic Screens
Home Screen
When connected to a Manager only,
the RedVision display will provide
real time information on the battery
State of Charge, Sources, Current
Flow and Solar Input
*1
.
Pushing Left reveals the Settings
menu and Right reveals the
information menu.
10 hrs
5A
35A
30A
75W
150Wh
13.9V
13.6V
---V
Display Settings
System Settings
This menu allows the user to
change Display, System, BMS and
Distribution Box settings (if fitted),
selected by Soft Key.
Pushing the Up/Down arrows cycle
through the available settings
menus. Pushing the top left ‘Back’
Soft Key will return the user back to
the Home Screen.
Changing Settings
Once the desired Settings Screen
is selected using the Soft Keys, the
available settings can be modified.
Pushing the Up/Down arrows will
cycle through the settings. Pushing
the Left/Right arrows will modify
the setting.
The ‘Green Tick’ Soft Key will save
the adjustment, the ‘Red Cross’ Soft
Key will cancel the changes.
Screen Settings
Key Sound
Home Timeout 1 min
Key Backlight
On
On
*
1
The information provided on the home screen may vary
depending on the system
25

Redarc MANAGER 30 Specifications

General

Battery Charging Capacity	30A
Input Voltage Range	9-32V DC
Output Voltage	12V DC
Standby Current Draw	<100mA
DC Input Fuse Rating	40A
Efficiency	Up to 95%
Battery Types	AGM, Gel, Calcium, LiFePO4
Protection Features	Over-voltage, under-voltage, over-temperature, short-circuit, reverse polarity
