Redback® A 4488 Paging Console
activated by the paging console/s.
Use this method if using ampliers with Line level balanced inputs. If the ampliers used have mic level inputs use the
conguration outlined in option 1.
Background Music can be supplied to each zone by connecting a Background music source to the “BGM In” terminals.
Note: The background music will be present on all zones and is overidden by zone paging (see section 8.0 for more de-
tails).
Fig 4
Fig 5
www.altronics.com.au
Made in Australia
by Altronic
Distributors Pty Ltd
To Paging Consoles
24V
DC IN
+-
+
-
Audio In
+-
+-+-
+-
+-
+-
Zone1Zone2Zone3Zone 4Mic OutLine Out
+
-
BGM In
CAT5 cable
Max 300M
MIC LEVEL SIGNAL
(TO MIC IN ON AMPLIFIER)
LINE LEVEL SIGNAL
(TO LINE IN ON AMPLIFIER)

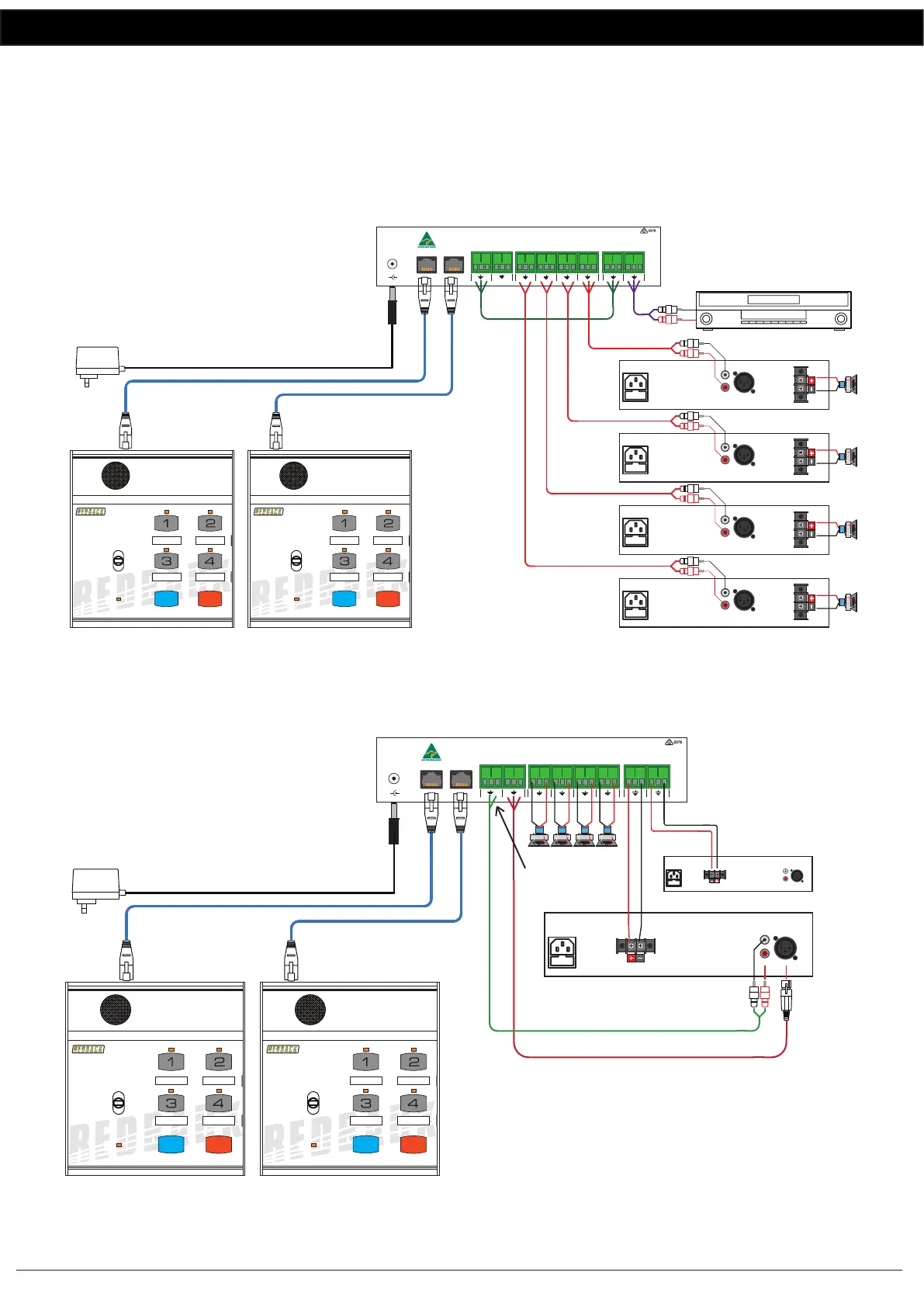

Typical connection of the A 4488/s and A 4489A with a single zone amplier and individual speakers
for each zone
4 Zone Communicator
System Busy
Page
BGM
All Call Cancel
A 4488
4 Zone Communicator
System Busy
Page
BGM
All Call Cancel
A 4488
240V AC @ 50Hz
Fuse 800mA
Line Mic
L
R
OUTPUT
+
–
2 1
3
24V DC POWER SUPPLY
SUCH AS M 8968C PLUGPACK
OR SIMILAR 24V 1 AMP SUPPLY.
POWER MUST BE CONNECTED
AT THE A 4489 LINE OUT BOX.
NOTE : ONLY ONE OUTPUT SHOULD BE USED
240V AC @ 50Hz
Fuse 800mA
Line Mic
L
R
OUTPUT
+
–
2 1
3
BACKGROUND MUSIC AMPLIFIER
ZONE AMPLIFIER (Maximum of 500W)
Only use the
+ve and
ground
connections
24V DC POWER SUPPLY
SUCH AS M 8968C PLUGPACK
OR SIMILAR 24V 1 AMP SUPPLY.
POWER MUST BE CONNECTED
AT THE A 4489 LINE OUT BOX.
CAT5 cable
Max 300M
LINE LEVEL SIGNAL
Typical connection of the A 4488/s and A 4489A with individual ampliers for each zone using Line levels
4 Zone Communicator
System Busy
Page
BGM
All Call Cancel
A 4488
4 Zone Communicator
System Busy
Page
BGM
All Call Cancel
A 4488
240V AC @ 50Hz
Fuse 800mA
Line Mic
L
R
OUTPUT
+
–
2 1
3
240V AC @ 50Hz
Fuse 800mA
Line Mic
L
R
OUTPUT
+
–
2 1
3
240V AC @ 50Hz
Fuse 800mA
Line Mic
L
R
OUTPUT
+
–
2 1
3
240V AC @ 50Hz
Fuse 800mA
Line Mic
L
R
OUTPUT
+
–
2 1
3
ZONE 1 AMPLIFIER
ZONE 2 AMPLIFIER
ZONE 3 AMPLIFIER
ZONE 4 AMPLIFIER
www.altronics.com.au
Made in Australia
by Altronic
Distributors Pty Ltd
To Paging Consoles
24V
DC IN
+-
+
-
Audio In
+-
+-+-
+-
+-
+-
Zone1Zone2Zone3Zone 4Mic OutLine Out
+
-
BGM In
DVD
REDBACK
