Redback® A 4505C Lockdown Timer with Network Access
The Lockdown/Fire/Cancel switches on the Redback® A 2064 wall plate are connected to the corresponding
contacts on the rear of the Redback® A 4505C. While the Lockdown and Fire LED’s on the wall plate are connected to the
Lockdown and Fire 24V outputs of the Redback® A 4505C.
A mimimum of six wires can be used on the A 2064 if the ground connections of the Lockdown and Fire 24V outputs and
the Lockdown/Fire and cancel switch grounds are linked together (see Fig 4.2).

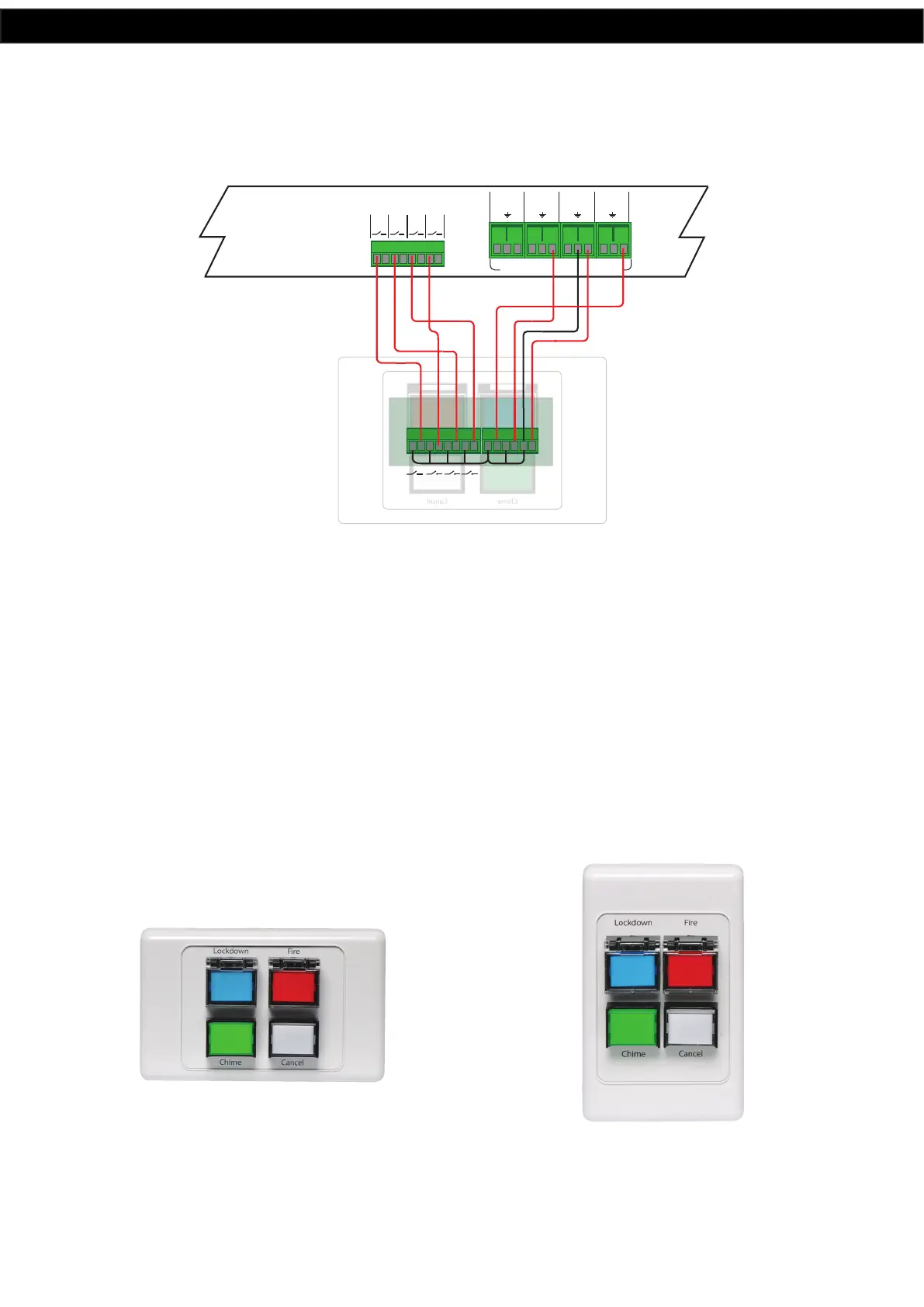

Fig 4.2 Hard wired connection between the A 2069 and A 4505C
The Lockdown/Fire/Chime/Cancel switches on the Redback® A 2069 wall plate are connected to the corresponding
contacts on the rear of the Redback® A 4505C. While the Lockdown, Fire and Bell LED’s on the wall plate are connected
to the Lockdown, Fire and Bell 24V outputs of the Redback® A 4505C.
The cancel LED is not connected.
A mimimum of eight wires can be used if the ground connections of the Lockdown, Fire and Bell 24V outputs are linked
with the Lockdown, Fire, Chime and Cancel switch grounds (see Fig 4.2).
4.2 A 4599 and A 4599V Remote Plates
The Reback® A 4599 and A 4599V wall plates allow a remote means of triggering the Lockdown, Fire and Bell tones
and the cancel function. The switches are momentary operation and must be pressed for up to 3 seconds to activate. The
switches have protective “ip up” covers to prevent accidental operation.
Fig 4.3 A 4599 Fig 4.4 A 4599V
Evac
Alert
Chime Cancel
A 4505B LOCKDOWN TIMER
Alert
Switch
- + - +
Chime
Switch
Evac
Switch
Alert
Lamp
Evac
Lamp
Cancel
Switch
A 2069 REMOTE WALL PLATE
- +
Chime
Lamp
N/C
N/O
Common
24V Out
N/C
N/O
Fire
24V Out
N/C
N/O
Lockdown
24V Out
N/C
N/O
Bell
24V Out
Cancel
Trigger
Fire
Trigger
Lockdn
Trigger
Bell
Trigger
Outputs limited to 120mA maximum current draw
- + - + - + - +
