R3C Radio Guide
[10]
[9]
[11]
[12]
[8]
[7]
[6]
[5]
[4]
[3]
[2]
[1]
[15]
[16]
[14]
[13]
[10] “TH.REV” Throttle reverse switch (PG.2)
[11] Lanyard Eye Insert wrist lanyard (sold separately)
[12] Base Battery compartment (4x AA batteries) (PG.1)
[13] “CH3” Three-position switch
[14] “CH4“ Button (Not used)
[15]
Steering Wheel
The maximum rotation of the steering wheel is
35 Degrees from center to full left or to full
right (CH1)
[16]
Throttle Trigger
The total moving angle of the throttle trigger is
37.5 Degrees; 25 Degrees forward and 12.5
Degrees backward (CH2)
[1] Cover Flip up panel cover
[2] “ST.REV” Steering channel reverse switch (PG.2)
[3] “R. LED” Power indicator LED
[4] “ST.TRIM” Steering trim button (PG.2)
[5] “G.LED” Status indicator LED
[6] “TH.TRIM” Throttle trim (PG.2)
[7] “ST.D/R” Steering dual rates button (PG.2)
[8] “ON/OFF” Power switch (PG.1)
[9] “BIND” BIND button (PG.7)

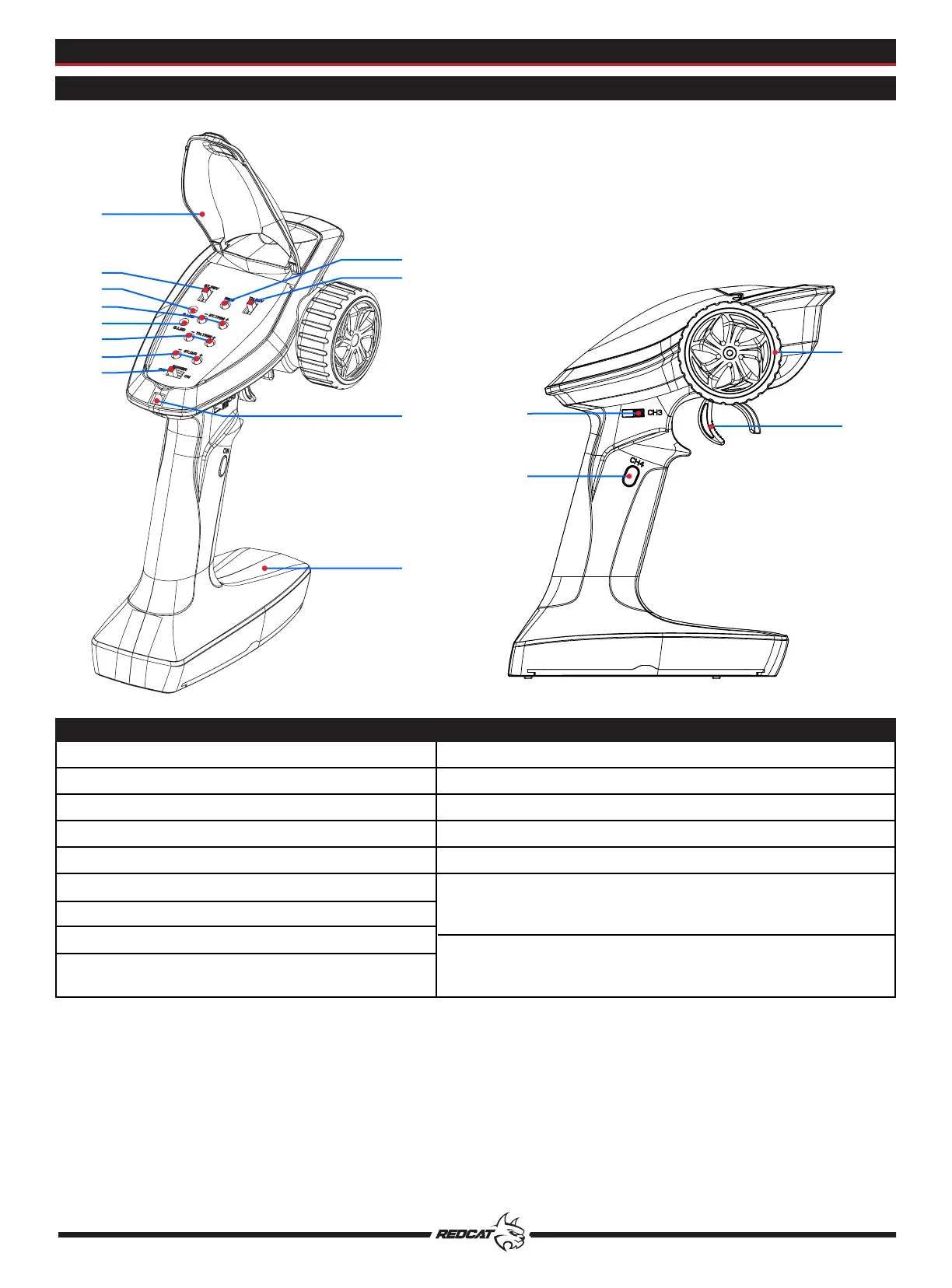

Transmitter Overview
Location Description Location Description
TM
4
