@ After any repair on the crankshaft, the crankshaft nuts should be checked regularly, see 12.0
@ Don’t assemble the cranks at the wrong side of the machine. See the spare part pages for
the right part numbers.
15.3 ALIGNMENT OF AN ELEMENT
In the event that an element is no longer in line with the adjacent elements, the alignment can be
corrected as follows (see fig.8.):
- Slacken the four bolts/nuts A, that connect the crankshaft to the element.
- Slacken the two bolts B, that fix the element to the main frame.
- Try to align the element by moving it side wards, till it lines up with the adjacent ones.
- Start to tighten all bolts/nuts.
@ The element may be pushed out of line due to overload to the machine
@ When a crank is replaced, always realign the element, so that no additional tension is created in the
total element assembly.
@ Any pre-tension in the element assembly will shorten the bearing life and may damage other parts as
well.
16.0 OPTIONS, WHEEL KIT

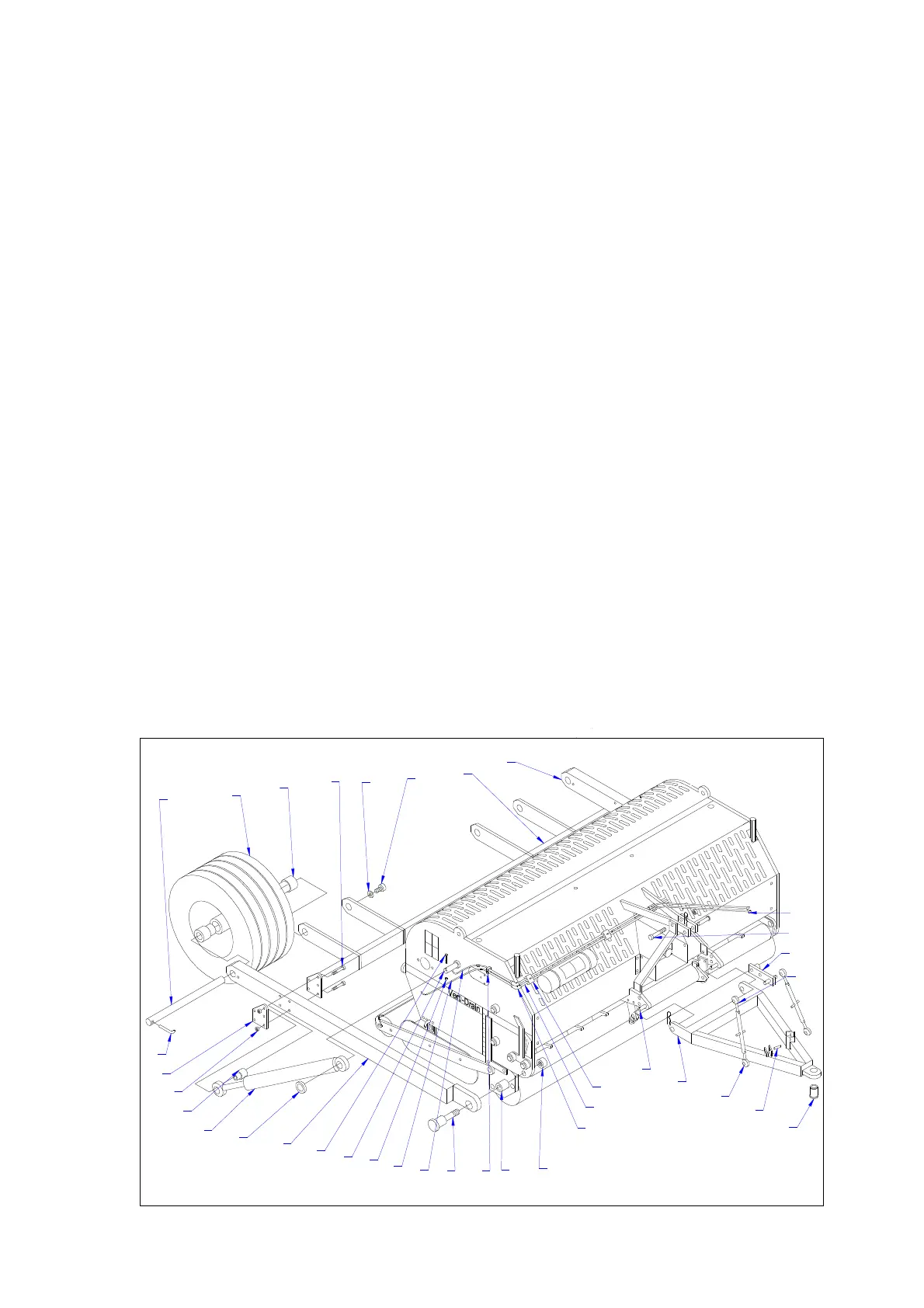

The part number for a full transport kit for the 7526 is 9500120. This kit will be separately delivered
and can be mounted to a standard 3-point linkage machine. Generally speaking, a machine with wheel
kit will reduce the minimum horsepower required by 10 HP. It also can be taken off quickly, so the
machine can be used either way
#
*
+
,
-
)
.
/
