22

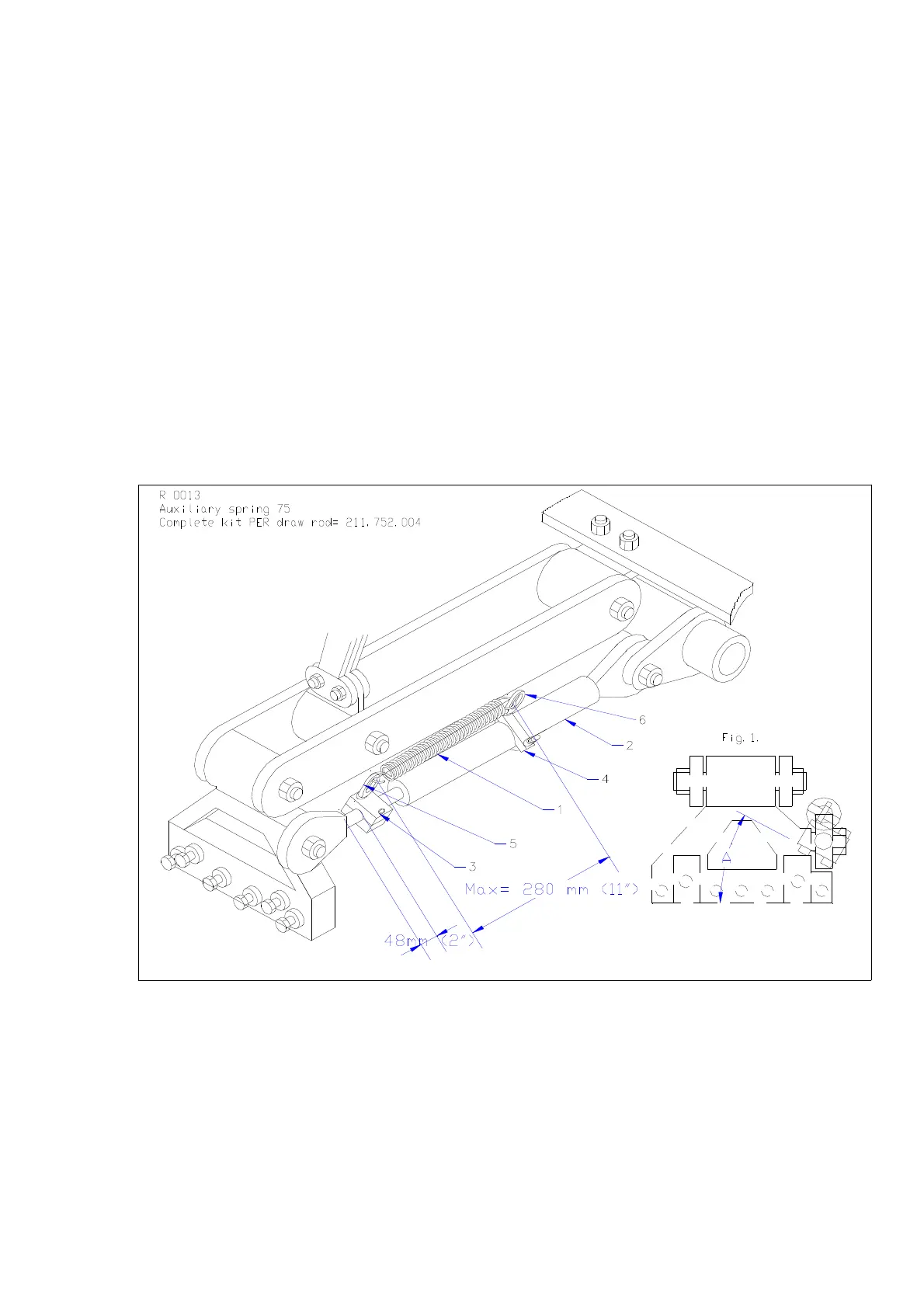

Be very careful in fitting the springs on the eye nuts (5/6), because the spring has to be
stretched, which can be dangerous.
@ It is important to adjust all springs at the same pre tension at a machine. The tension can
be reduced by reducing the length 280 mm. The spring can be taken out as well.
@ The tine holder can be turned upwards, when the assembly is done correctly. Check
whether the springs or eye nuts hit something after the installation.
@ With the auxiliary springs assembled, the capacity may increase, but we still have to be
aware of overspeeding the machine. Like with all other Verti-Drains with a rear roller,
the tines may turn towards the roller and hit the roller for different reasons.
@ When we apply too much spring force on the tines ( especially in combination with the
12 mm ( ½”)), we may destroy the hole edge, since the spring is pulling hard at the
moment the tines are leaving the ground. Extra spring force is not advised for such
applications.
16.1.4 REAR ROLLER EXTENSION KIT
The kit 211.752.002 can be mounted at the standard rear roller supports and moves the
roller further away from the moving parts inside the machine.
Since the rear roller is further away from the machine, special attention for shaking of
the rear roller is necessary under tough circumstances. If the shaking goes on for a
longer while, the rear roller scraper ends may break together with the rear roller
bearings.
