Reebok 3500C - Assembly

Assembly requires two persons. Hace the treadmHUin a cbared area and remove aH packing matedaUs, Do not
dispose of the packing matedaUsuntil the treadmHUis assembbd,
Note: The underside of the treadmHUwaUking beUtis coated with high-performance Uubdcant, During shipping, a
small amount of Uubdcantmay be transferred to the top of the waUkingbeUt,the sides of the waUking pUatform, or
the shipping carton, This does not affect treadmHUperformance, ff there is Uubdcant on top of the waUking beUtor
on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner,
screwdriver _ and the included allen wrench _
Assembly requires
a
phi[lips @

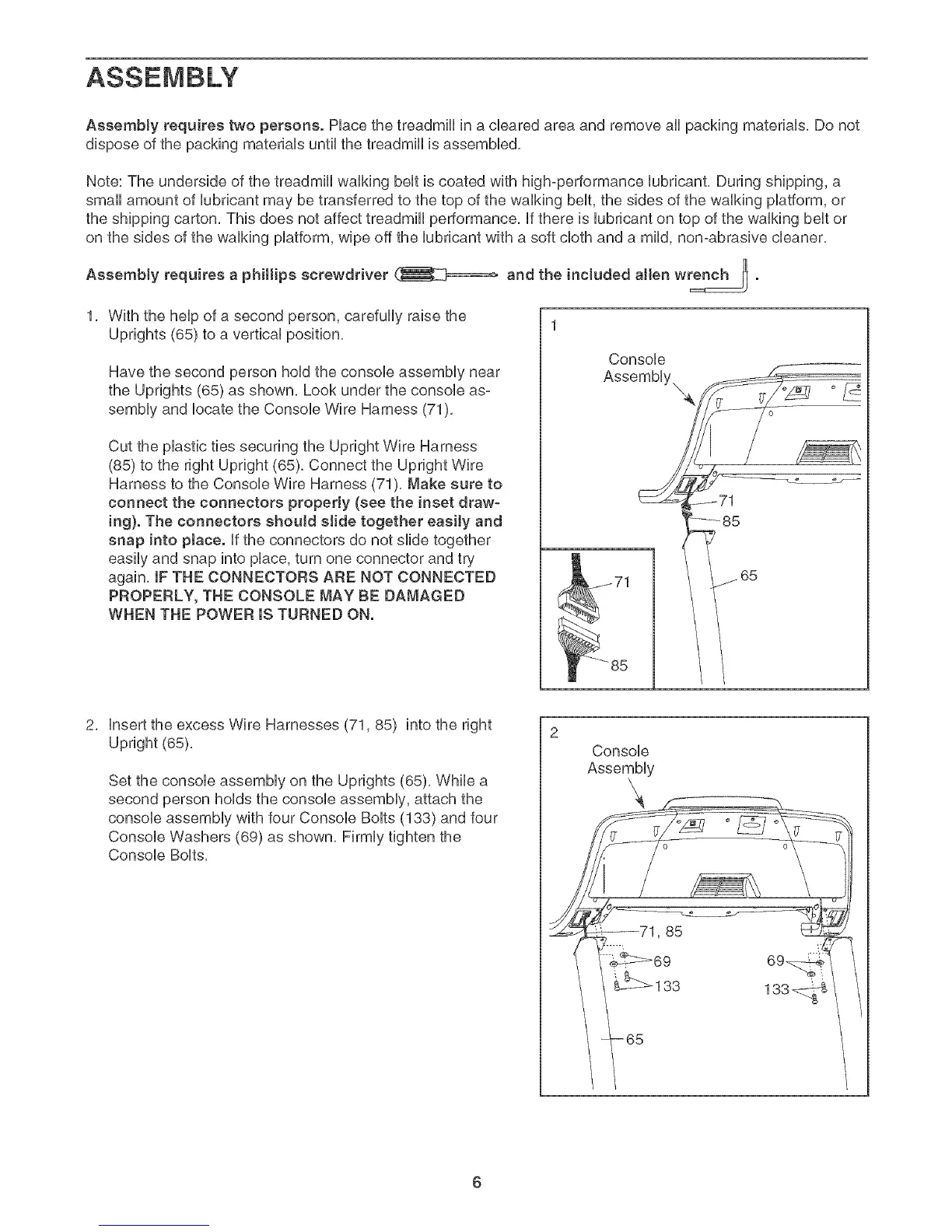

1, With the help of a second person, carefully raise the
Uprights (65) to a vertical position,
Have the second person hold the console assembly near
the Uprights (65) as shown, Look under the console as-
sembly and locate the Console Wire Harness (71),
Cut the plastic ties securing the Upright Wire Harness
(85) to the right Upright (65), Connect the Upright Wire
Harness to the Console Wire Harness (71), Make sure to
connect the connectors properly (see the inset draw-
ing). The connectors should sJide together easi[y and
snap into pIace. If the connectors do not slide together
easily and snap into place, turn one connector and try
again, IF THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED
WHEN THE POWER IS TURNED ON.
1
Console
insert the excess Wire Harnesses (71,85) into the right
Upright (65),
Set the console assembly on the Uprights (65), While a
second person holds the console assembly, attach the
console assembly with four Console Bolts (188) and four
Console Washers (69) as shown, Firmly tighten the
Console Bolts,
Console
Assembly
k
_133
6
