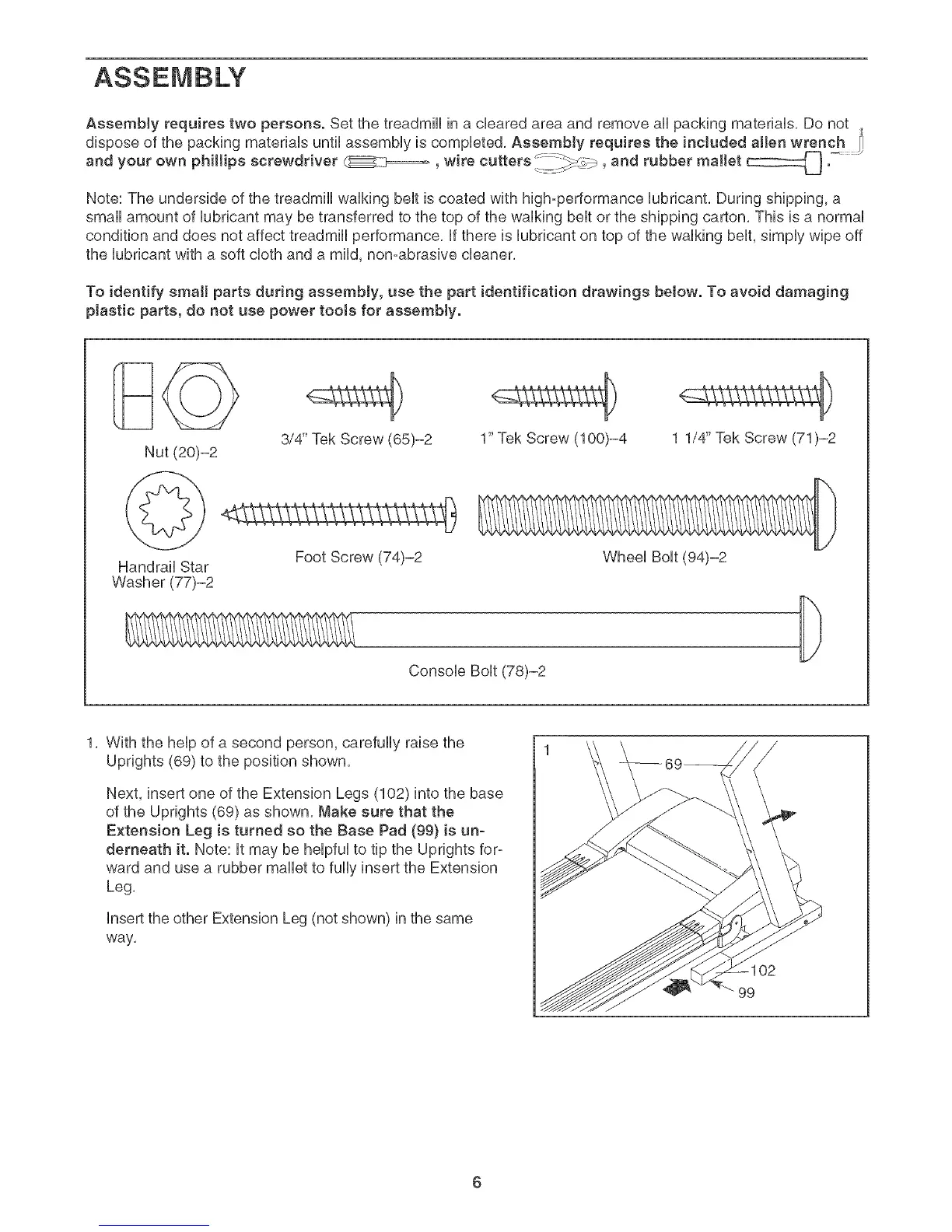

Assemblyrequirestwopersons.Setthetreadmillinaclearedareaandremovea[[packingmaterials,Donot
I
dispose of the packing materiaUs until assembUy is compUeted, AssembJy requires the incJuderf allen wrench II
and your own phillips screwdriver _, wire cutters_- __,o_-p,and rubber mallet _ .- .................
Note: The underside of the treadmHUwaUkingbeUtis coated with high-performance Uubricant, During shipping, a
small amount of Uubricantmay be transferred to the top of the waUking beUtor the shipping carton, This is a normaU
condition and does not affect trsadmHUperformance, ff there is Uubricant on top of the waUkingbelt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner,
To identify small parts during assembly, use the part identification drawings below. To avoid damaging
plastic parts, do not use power toots for assembly.
Nut (20)-2
Handrail Star
Washer (77)-2
3/4" Tek Screw (65)-2
Foot Screw (74)-2
1" Tek Screw (100)-4 1 1/4" Tek Screw (71)-2
Wheel Bolt (94)-2
Console Bolt (78)-2
1, With the help of a second person, carefully raise the
Uprights (69) to the position shown,
Next, insert one of the Extension Legs (102) into the base
of the Uprights (69) as shown, Make sure that the
Extension Leg is turnerf so the Base Pad (99} is un-
derneath it. Note: It may be helpful to tip the Uprights for-
ward and use a rubber mallet to fully insert the Extension
Leg,
Insert the other Extension Leg (not shown) in the same
way.
99
6
