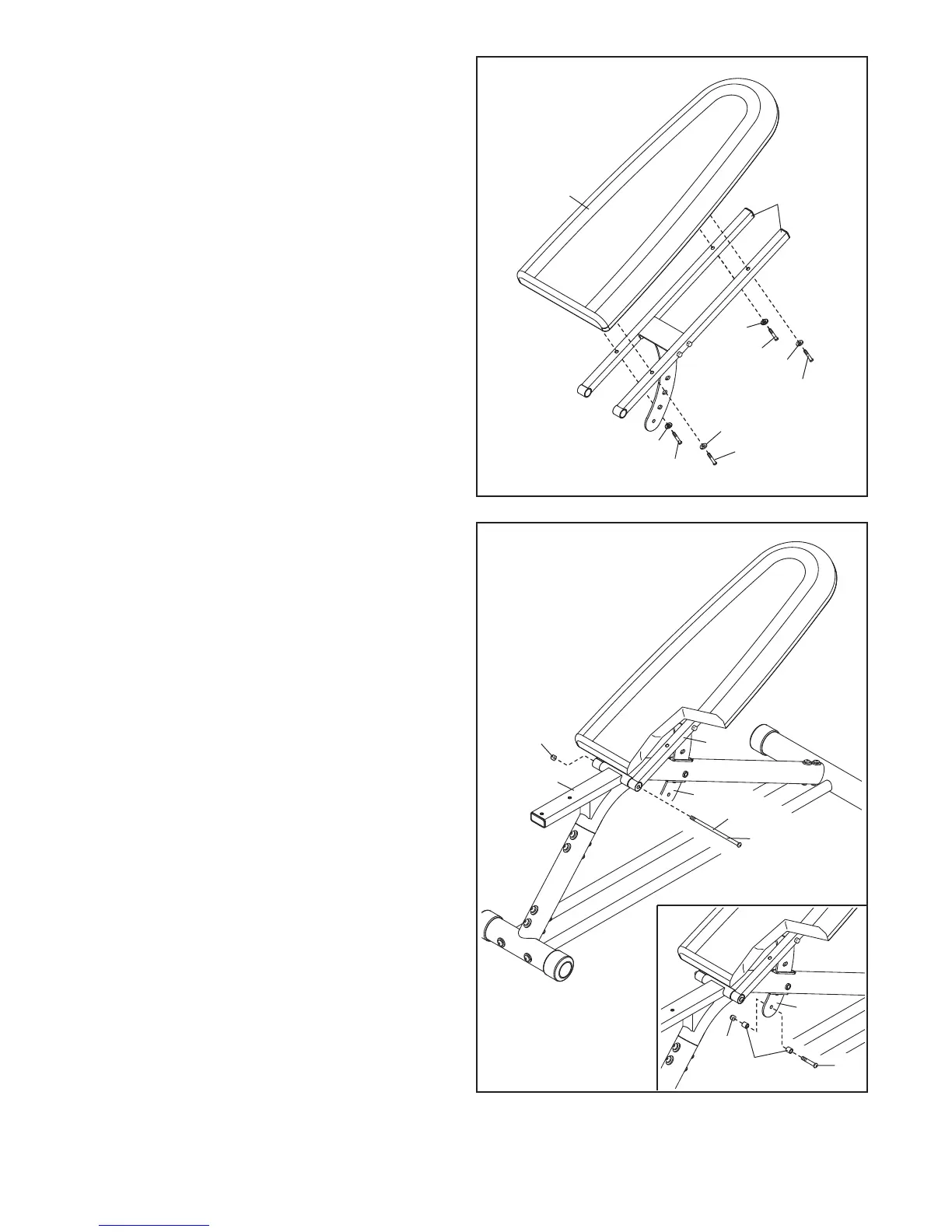

5. Attach the Backrest (7) to the Backrest Frames
(5) with four M6 x 35mm Screws (15) and four
M6 Washers (21). Do not tighten the Screws
y
et.
6. Insert the Pivot Bracket (6) into the slot in the
Frame (1) as shown.
Apply some of the included grease to an M10 x
190mm Bolt (14). Attach the Backrest Frames
(5) to the Frame (1) with the Bolt and an M10
Locknut (19). Do not overtighten the
Locknut; the Backrest Frames must pivot
easily.
See the inset drawing. Attach an M8 x 38mm
Bolt (18), two Spacers (23), and an M8 Locknut
(24) to the lowest hole in the Pivot Bracket (6).
See step 4. Tighten the four M8 Locknuts (24).
See step 5. Tighten the four M6 x 35mm
Screws (15).
