Reebok i-Trainer.S - Upright Installation

Reebok i-Trainer.S
06
Customer Support 0800 440 2459 Reebok i-Trainer.S
07
reebokfitness.info
2
1
Assembly
807 x 4
3
1
2

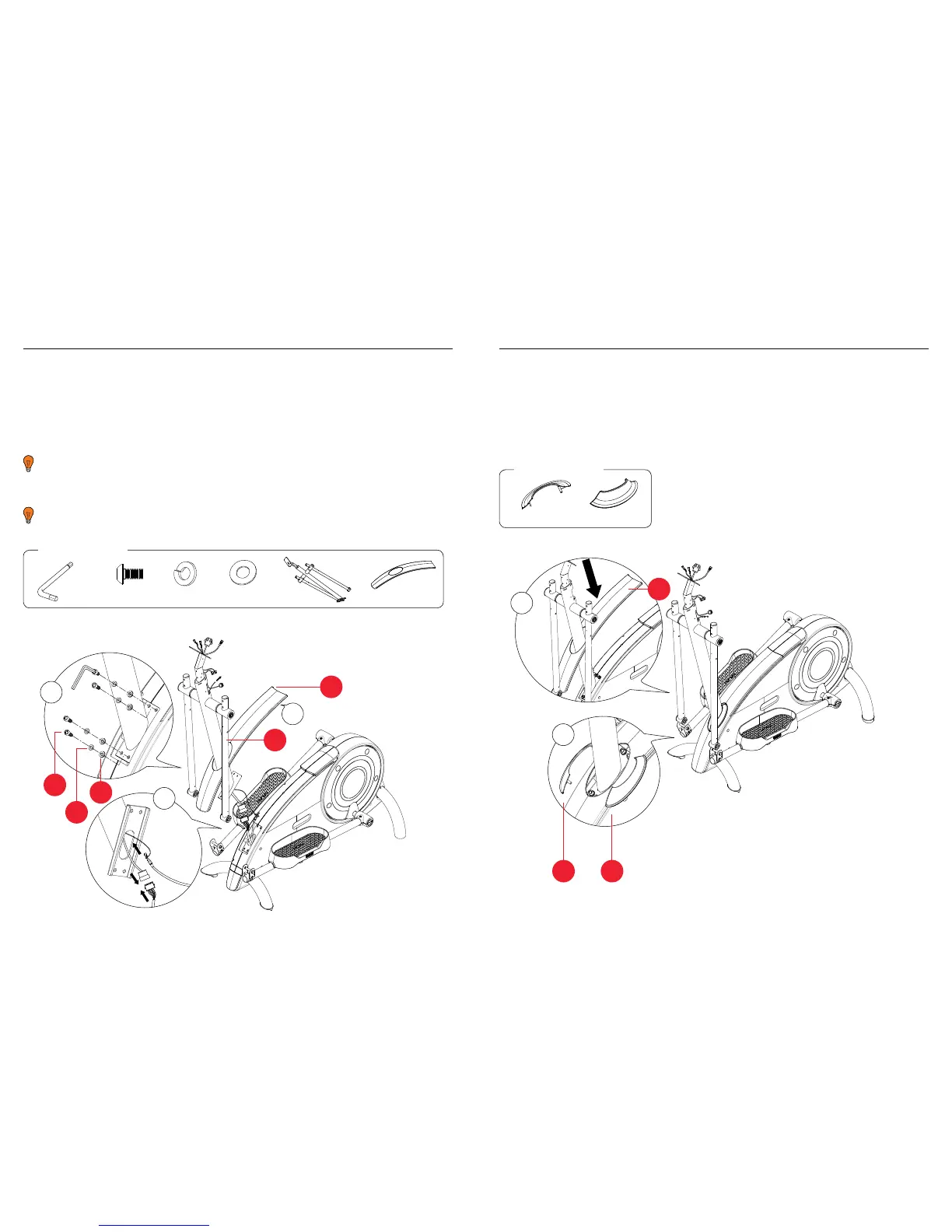

Upright
6. Place the upright (288) through the upright cover (352) as shown (fig.1).
7. Tie the pre-inserted piece of string to the resistance wire to pull the wire
through the upright. Connect the wires from the bottom of the upright to the
main body of the crosstrainer (fig.2).
You will hear a click, which will confirm those wires are connected together.
8. Fix the upright to the front of the crosstrainer using 4 x 215 bolts, 4 x 807 spring
washers and 4 x 373 plain washers (fig.3).
Initially insert bolts to finger tight. Once the upright is correctly located tighten
each bolt properly using the Allen key.
You will require:
215 x 4 373 x 4
288 x 1 352 x 1
215
807
373
288
352
Upright Covers
9. Push the upright cover (352) into place on the main body to cover the upright
bolts (fig.1).
10. Clip the handlebar cowlings (344 & 346) around the base of the upright (fig.2).
You will require:
344 x 1 346 x 1
344 346
6mm
352
