Reebok i-Trainer.S
12
Customer Support 0800 440 2459 Reebok i-Trainer.S
13
reebokfitness.info

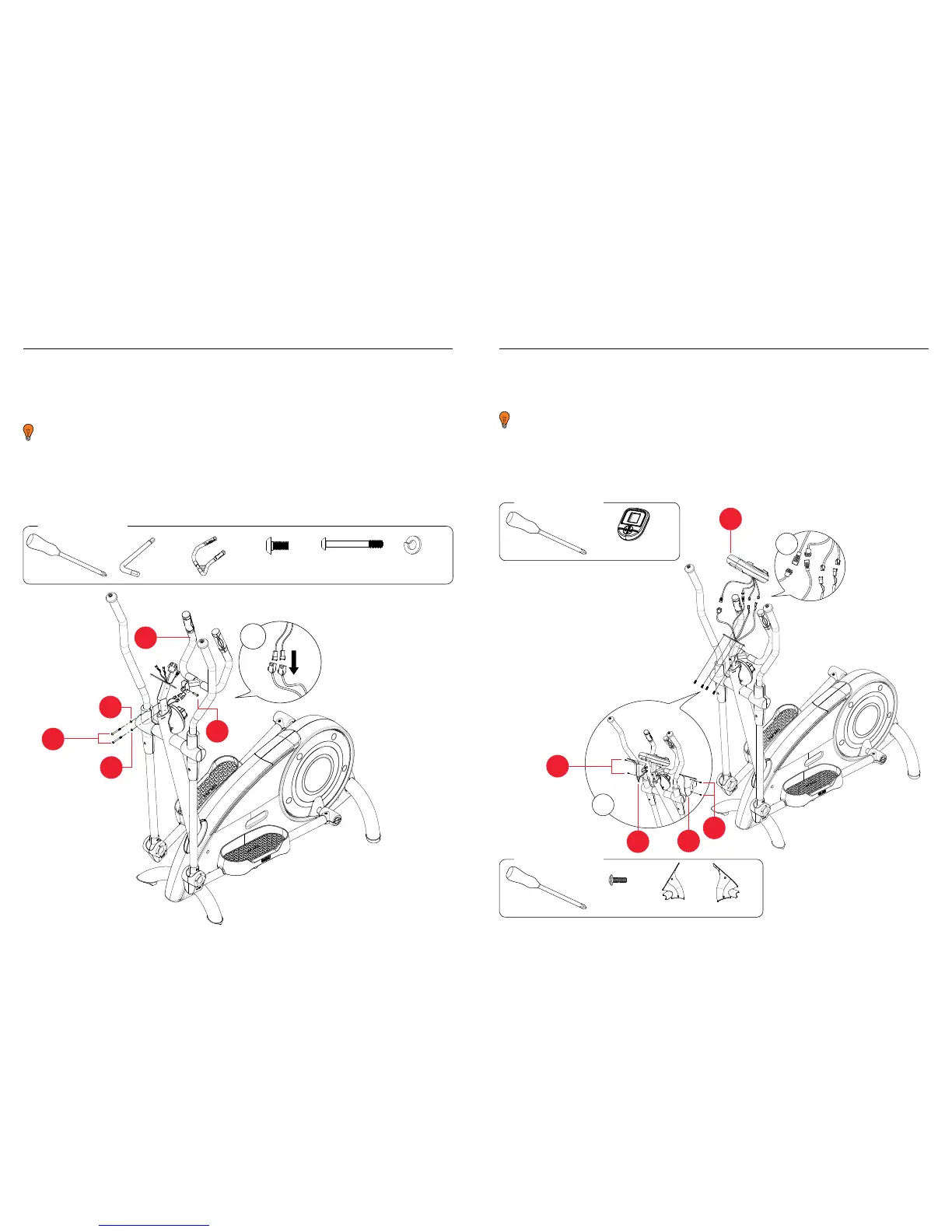

Assembly
Grip Bar
25. Connect the wires on the grip bar (238) to the wires at the top of the upright
(these will control the EKG hand pulse sensors) (fig.1).
A click will confirm the wires have connected together.
26. Push the grip bar into position onto the top of the upright. Insert 1 x 541 screw
through the grip bar bracket and the upright, from one side to the other.
Ensure the wires are not trapped by pushing them back into the upright.
27. Now insert 2 x 219 bolts and 2 x 220 spring washers into the back of
the grip bar and tighten with the Allen key.
You will require:
541 x 1 219 x 2 220 x 2238 x 1
1
541
238
219
220
220
2
1
Console & Console Covers
28. Connect the wires on the console (802) to the wires at the top of the upright.
You will hear a click to confirm these have connected (fig.1).
29. Screw the console to the plate at the top of the upright using the
4 pre-assembled screws located in the back of the console.
30. Clip the console housing (804 & 805) onto the back of the console, and secure
using 4 x 211 screws (fig.2).
You will require:
211 x 4 804 x 1
802 x 1
805 x 1
805
804
211
211
802
You will require:
4mm
RFE 4489_RE014200_iTrainerS_UMFINAL.indd 12-13 25/06/2010 15:32
