Assembly
Resistance Knob continued

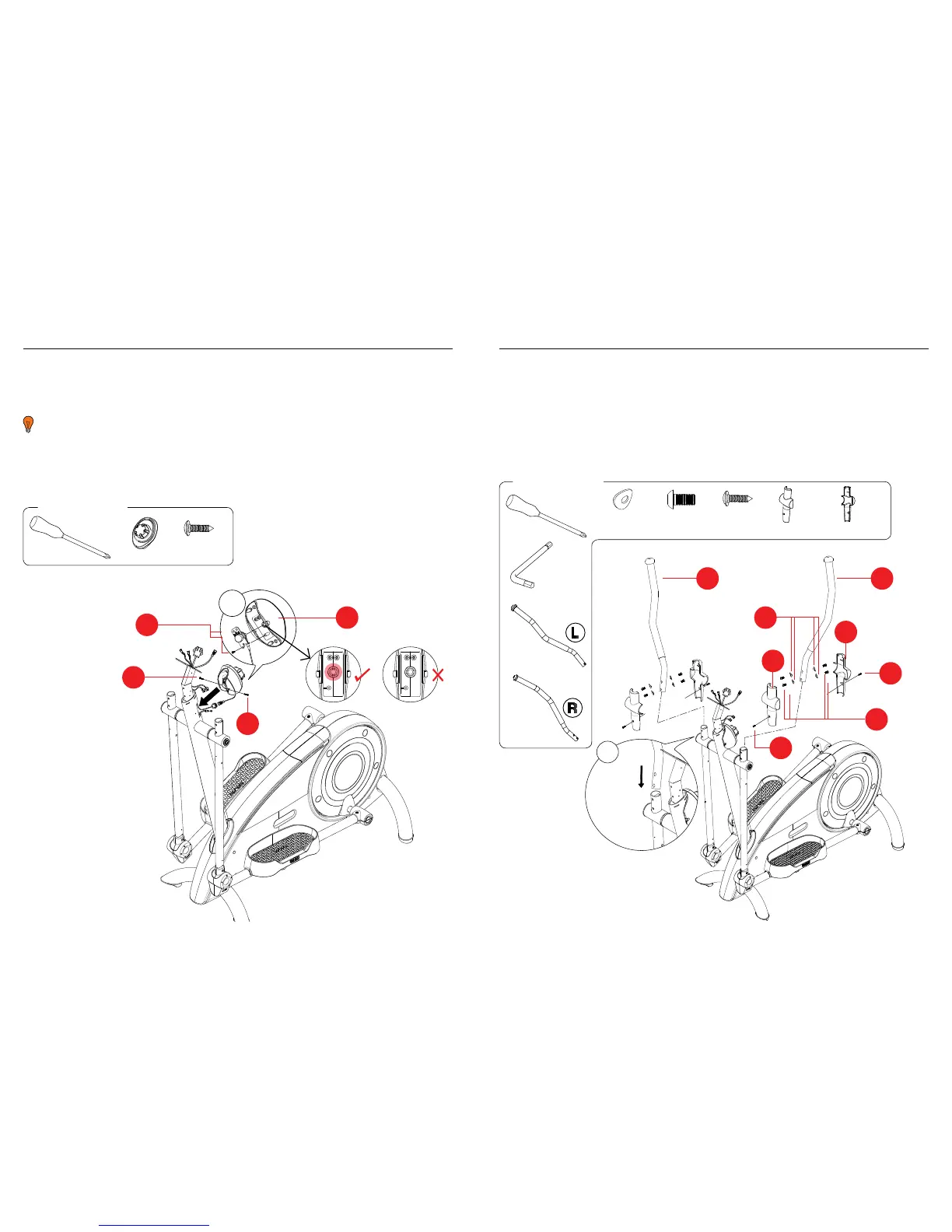

19. Now mount the resistance knob inner to the resistance knob housing (224).
The cut out notches at the back of the resistance knob must be vertical.
If they are not, turn the resistance knob until they are vertical.
20. Now place resistance knob inner into resistance knob housing and secure
using 1 x 802 screw.
21. Insert resistance knob housing into upright and secure using 2 x 802 screws.
Upper Handlebars and Covers
22. Push the tops of the upper handlebars (213 & 260) into the handlebar tubes (fig.1).
23. Fix these using 4 x 290 bolts and 4 x 814 curve washers into each handlebar.
24. Once both handlebars are secure, place the handlebar covers (205 & 237)
over the joint, and fix using 2 x 802 screws into each handlebar.
You will require:
You will require:
802 x 3
213 x 1
260 x 1
224 x 1
802 x 4
1
802
237
814
205
802
802
224
260 213
802
802
205 x 2 237 x 2814 x 8 290 x 8
290
6mm
