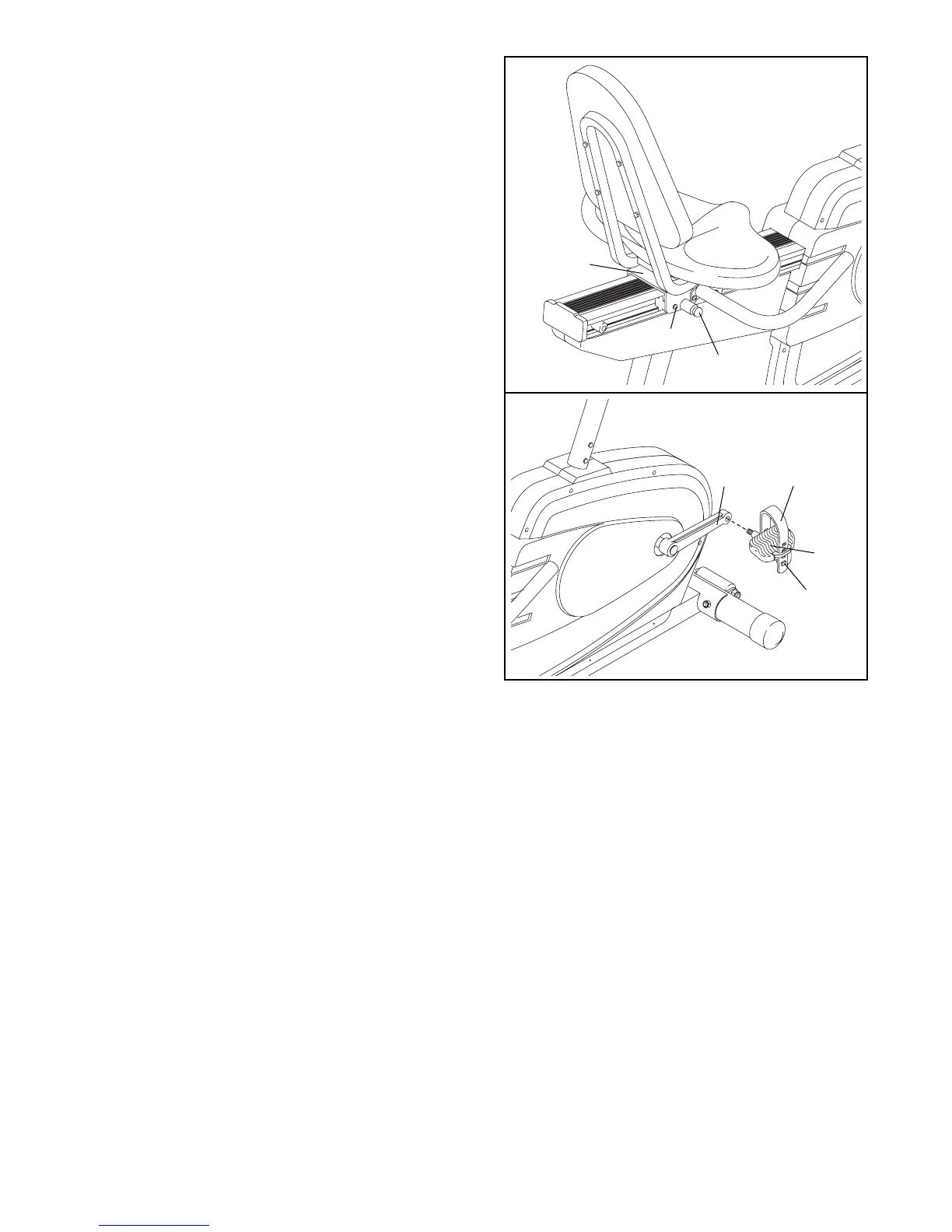

9. Firmly tighten the four 5/16” x 1” Button Screws (80)
in the Seat Carriage (11).
Pull the seat knob and slide the Seat Carriage (11)
to the desired position. Release the seat knob and
slide the Seat Carriage back and forth slightly
until it locks into position.
7
10. Identify the Right Pedal (37) (there is an “R” on the
Right Pedal for identification). Using an adjustable
wrench, tighten the Right Pedal
clockwise
into the
right Crank Arm (34).
Tighten the Left Pedal
counterclockwise
into the left
Crank Arm (not shown).
Adjust the Pedal Strap (38) on the Right Pedal (37)
to the desired position. Press the Pedal Strap onto
the tab on the Right Pedal.
Adjust the Pedal Strap on the Left Pedal in the
same manner (not shown).
11
80
34 38
37
Tab
9
10
11. Make sure that all parts are tightened before you use the exercise cycle. Place a mat beneath the
exercise cycle to protect the floor.
Knob
