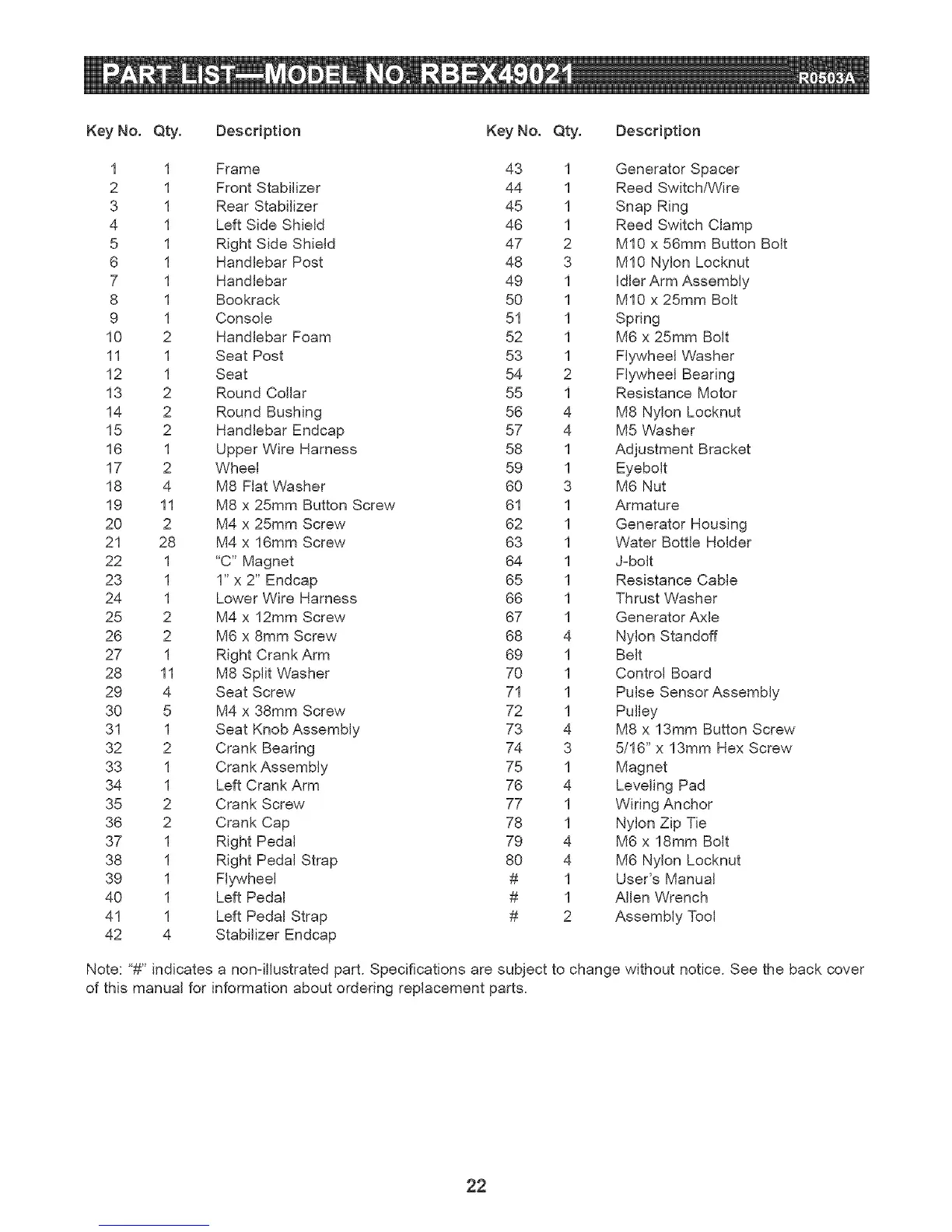

Key No. Qty. Description Key No. Qty. Description
1 1 Frame 43 1 Generator Spacer
2 1 Front Stabilizer 44 1 Reed Switch/Wire
3 1 Rear Stabilizer 45 1 Snap Ring
4 1 Left Side Shield 46 1 Reed Switch Clamp
5 1 Right Side Shield 47 2 MI0 x 56mm Button Bolt
6 1 Handlebar Post 48 3 M10 Nylon Locknut
7 1 Handlebar 49 1 idler Arm Assembly
8 1 Bookrack 50 1 MI0 x 25mm Bolt
9 1 Console 51 1 Spring
10 2 Handlebar Foam 52 1 M6 x 25mm Bolt
11 1 Seat Post 53 1 Flywheel Washer
12 1 Seat 54 2 Flywheel Bearing
13 2 Round Collar 55 1 Resistance Motor
14 2 Round Bushing 56 4 M8 Nylon Locknut
15 2 Handlebar Endcap 57 4 M5 Washer
16 1 Upper Wire Harness 58 1 Adjustment Bracket
17 2 Wheel 59 1 Eyebolt
18 4 M8 Flat Washer 60 3 M6 Nut
19 11 M8 x 25mm Button Screw 61 1 Armature
20 2 M4 x 25mm Screw 62 1 Generator Housing
21 28 M4 x 16mm Screw 63 1 Water Bottle Holder
22 1 "C" Magnet 64 1 J-bolt
23 1 1" x 2" Endcap 65 1 Resistance Cable
24 1 Lower Wire Harness 66 1 Thrust Washer
25 2 M4 x 12mm Screw 67 1 Generator Axle
26 2 M6 x 8mm Screw 68 4 Nylon Standoff
27 1 Right Crank Arm 69 1 Belt
28 11 M8 Split Washer 70 1 Control Board
29 4 Seat Screw 71 1 Pulse Sensor Assembly
30 5 M4 x 38mm Screw 72 1 Pulley
31 1 Seat Knob Assembly 73 4 M8 x 13mm Button Screw
32 2 Crank Bearing 74 3 5/16" x 13mm Hex Screw
33 1 Crank Assembly 75 1 Magnet
34 1 Left Crank Arm 76 4 Leveling Pad
35 2 Crank Screw 77 1 Wiring Anchor
36 2 Crank Cap 78 1 Nylon Zip Tie
37 1 Right Pedal 79 4 M6 x 18mm Bolt
38 1 Right Pedal Strap 80 4 M6 Nylon Locknut
39 1 Flywheel # 1 User's Manual
40 1 Left Pedal # 1 Allen Wrench
41 1 Left Pedal Strap # 2 Assembly Tool
42 4 Stabilizer Endcap
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
