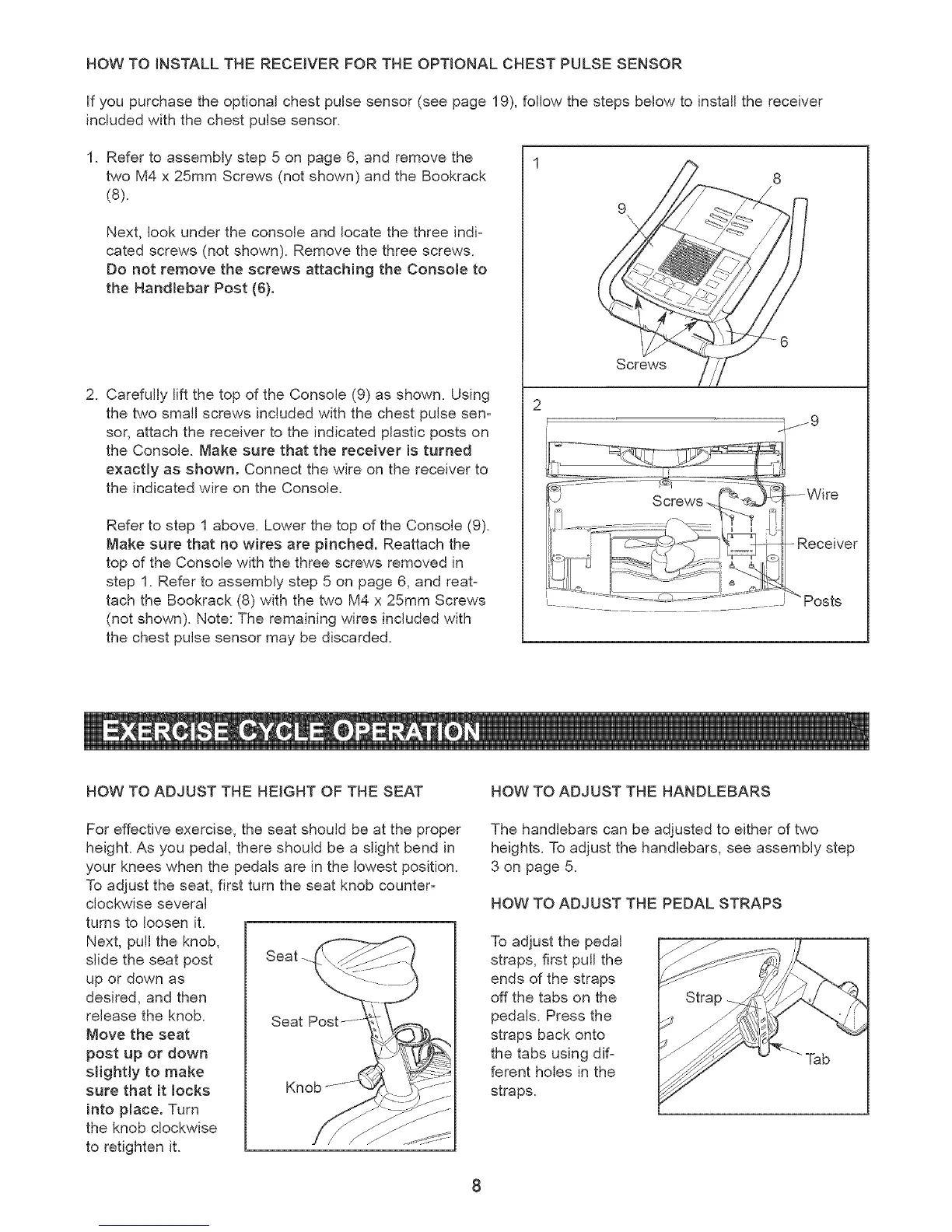

HOWTOiNSTALLTHERECEIVERFORTHEOPTIONALCHESTPULSESENSOR
ifyoupurchasetheoptionalchestpulsesensor(seepage19),followthestepsbelowto installthereceiver
includedwiththechestpulsesensor.
1.Refertoassemblystep5 onpage6,andremovethe
twoM4x 25mmScrews(notshown)andtheBookrack
(8).
Next,lookundertheconsoleandlocatethethreeindi-
catedscrews(notshown).Removethethreescrews.
DonotremovethescrewsattachingtheConsoleto
theHandlebarPost(6).
2. CarefullyliftthetopoftheConsole(9)asshown.Using
thetwosmallscrewsincludedwiththechestpulsesen-
sor,attachthereceivertotheindicatedplasticpostson
theConsole.Makesurethatthereceiveris turned
exactlyasshown.Connectthewireonthereceiverto
theindicatedwireontheConsole.
Refertostep1above.Lowerthetopof theConsole(9).
Makesurethatno wires are pinched. Reattach the
top of the Console with the three screws removed in
step 1. Refer to assembly step 5 on page 6, and reat-
tach the Bookrack (8) with the two M4 x 25mm Screws
(not shown). Note: The remaining wires included with
the chest pulse sensor may be discarded.
9
\
\
Screws
8
/
._j9
L s Posts
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat, first turn the seat knob counter-
clockwise several
turns to loosen it.
Next, pull the knob,
slide the seat post
up or down as
desired, and then
release the knob.
Move the seat
post up or down
slightly to make
sure that it locks
into place. Turn
the knob clockwise
to retighten it.
Seat
Seat
HOW TO ADJUST THE HANDLEBARS
The handlebars can be adjusted to either of two
heights. To adjust the handlebars, see assembly step
3 on page 5.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps
off the tabs on the
pedals. Press the
straps back onto
the tabs using dif-
ferent holes in the
straps.
