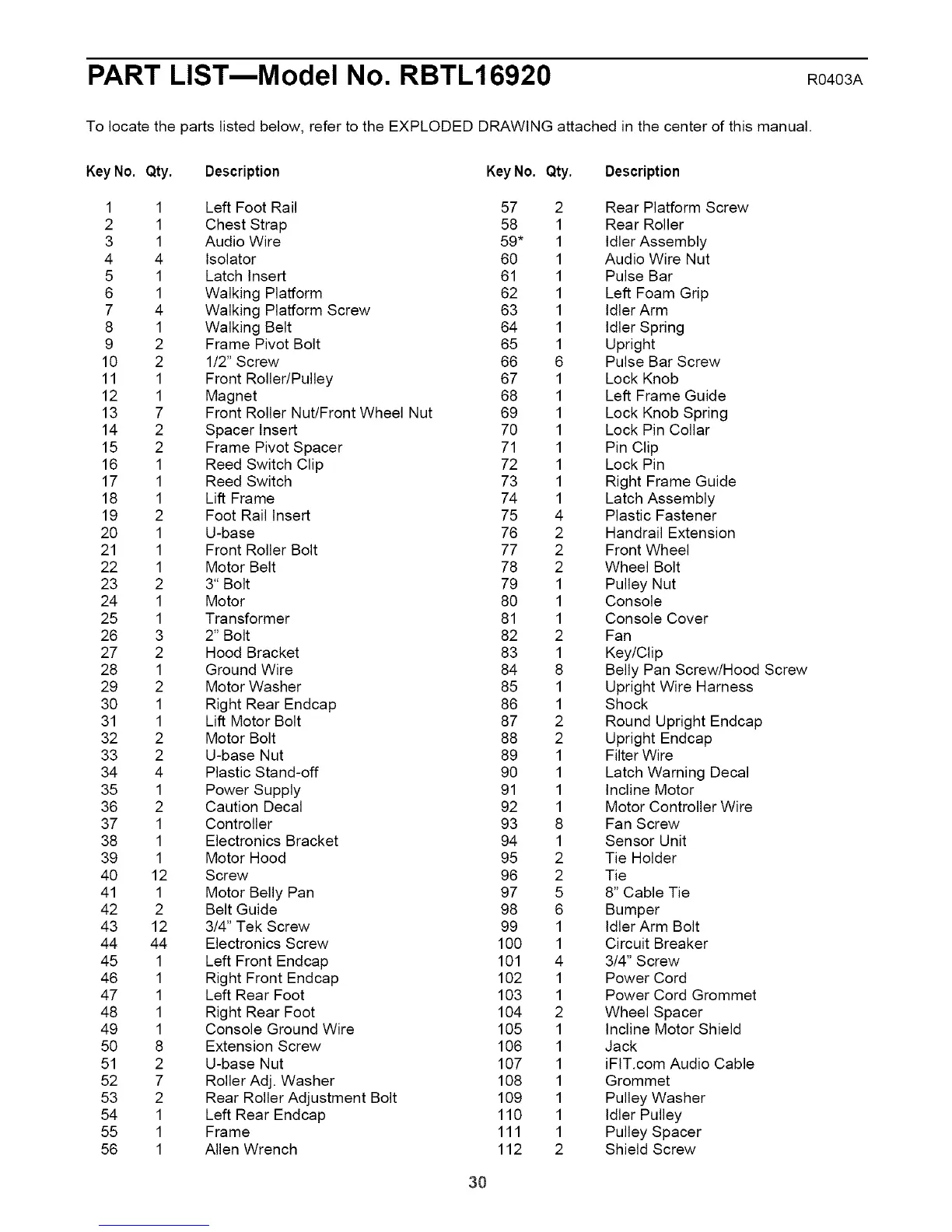

PART LIST--Model No. RBTL16920 R0403A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
KeyNo, Qty. Description KeyNo. Qty. Description
1 1 Left Foot Rail 57 2
2 1 Chest Strap 58 1
3 1 Audio Wire 59* 1
4 4 Isolator 60 1
5 1 Latch Insert 61 1
6 1 Walking Platform 62 1
7 4 Walking Platform Screw 63 1
8 1 Walking Belt 64 1
9 2 Frame Pivot Bolt 65 1
10 2 1/2" Screw 66 6
11 1 Front Roller/Pulley 67 1
12 1 Magnet 68 1
13 7 Front Roller Nut/Front Wheel Nut 69 1
14 2 Spacer Insert 70 1
15 2 Frame Pivot Spacer 71 1
16 1 Reed Switch Clip 72 1
17 1 Reed Switch 73 1
18 1 Lift Frame 74 1
19 2 Foot Rail Insert 75 4
20 1 U-base 76 2
21 1 Front Roller Bolt 77 2
22 1 Motor Belt 78 2
23 2 3" Bolt 79 1
24 1 Motor 80 1
25 1 Transformer 81 1
26 3 2" Bolt 82 2
27 2 Hood Bracket 83 1
28 1 Ground Wire 84 8
29 2 Motor Washer 85 1
30 1 Right Rear Endcap 86 1
31 1 Lift Motor Bolt 87 2
32 2 Motor Bolt 88 2
33 2 U-base Nut 89 1
34 4 Plastic Stand-off 90 1
35 1 Power Supply 91 1
36 2 Caution Decal 92 1
37 1 Controller 93 8
38 1 Electronics Bracket 94 1
39 1 Motor Hood 95 2
40 12 Screw 96 2
41 1 Motor Belly Pan 97 5
42 2 Belt Guide 98 6
43 12 3/4" Tek Screw 99 1
44 44 Electronics Screw 100 1
45 1 Left Front Endcap 101 4
46 1 Right Front Endcap 102 1
47 1 Left Rear Foot 103 1
48 1 Right Rear Foot 104 2
49 1 Console Ground Wire 105 1
50 8 Extension Screw 106 1
51 2 U-base Nut 107 1
52 7 Roller Adj. Washer 108 1
53 2 Rear Roller Adjustment Bolt 109 1
54 1 Left Rear Endcap 110 1
55 1 Frame 111 1
56 1 Allen Wrench 112 2
Rear Platform Screw
Rear Roller
Idler Assembly
Audio Wire Nut
Pulse Bar
Left Foam Grip
Idler Arm
Idler Spring
Upright
Pulse Bar Screw
Lock Knob
Left Frame Guide
Lock Knob Spring
Lock Pin Collar
Pin Clip
Lock Pin
Right Frame Guide
Latch Assembly
Plastic Fastener
Handrail Extension
Front Wheel
Wheel Bolt
Pulley Nut
Console
Console Cover
Fan
Key/Clip
Belly Pan Screw/Hood Screw
Upright Wire Harness
Shock
Round Upright Endcap
Upright Endcap
Filter Wire
Latch Warning Decal
Incline Motor
Motor Controller Wire
Fan Screw
Sensor Unit
Tie Holder
Tie
8" Cable Tie
Bumper
Idler Arm Bolt
Circuit Breaker
3/4" Screw
Power Cord
Power Cord Grommet
Wheel Spacer
Incline Motor Shield
Jack
iFIT.com Audio Cable
Grommet
Pulley Washer
Idler Pulley
Pulley Spacer
Shield Screw
30
